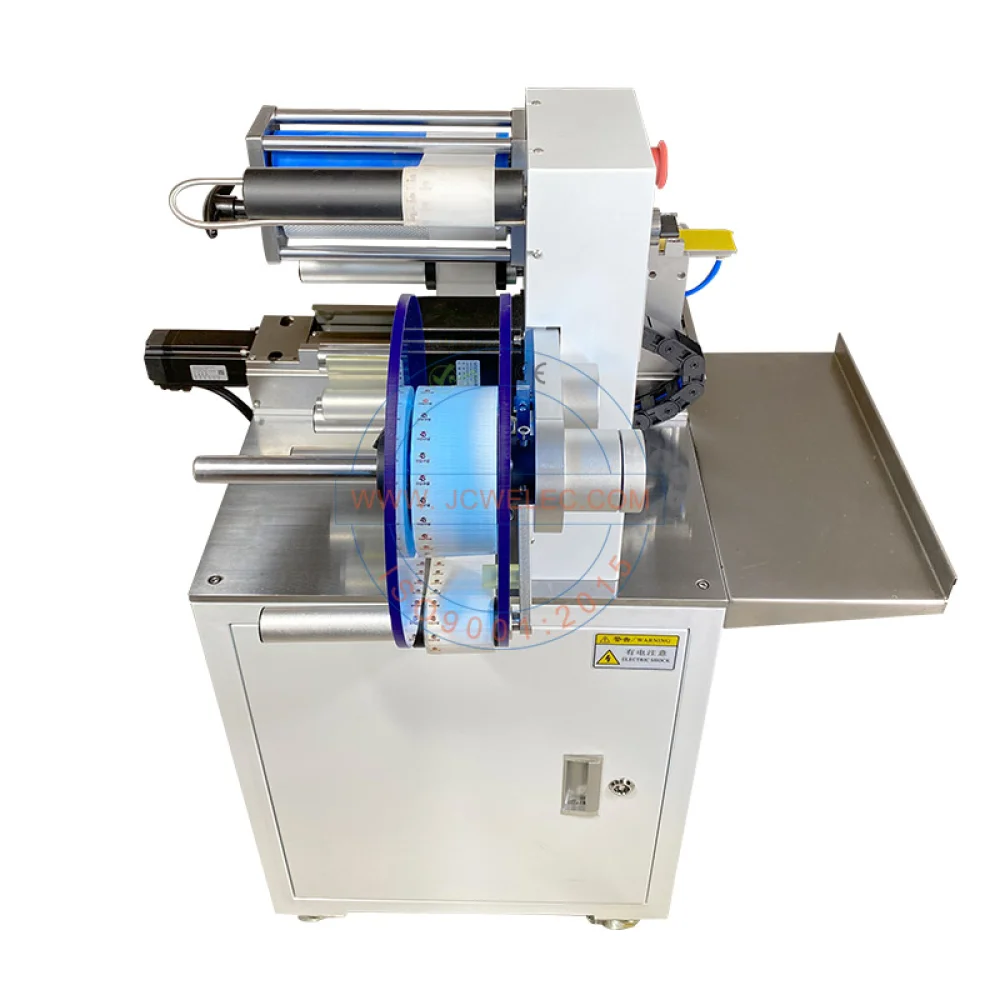

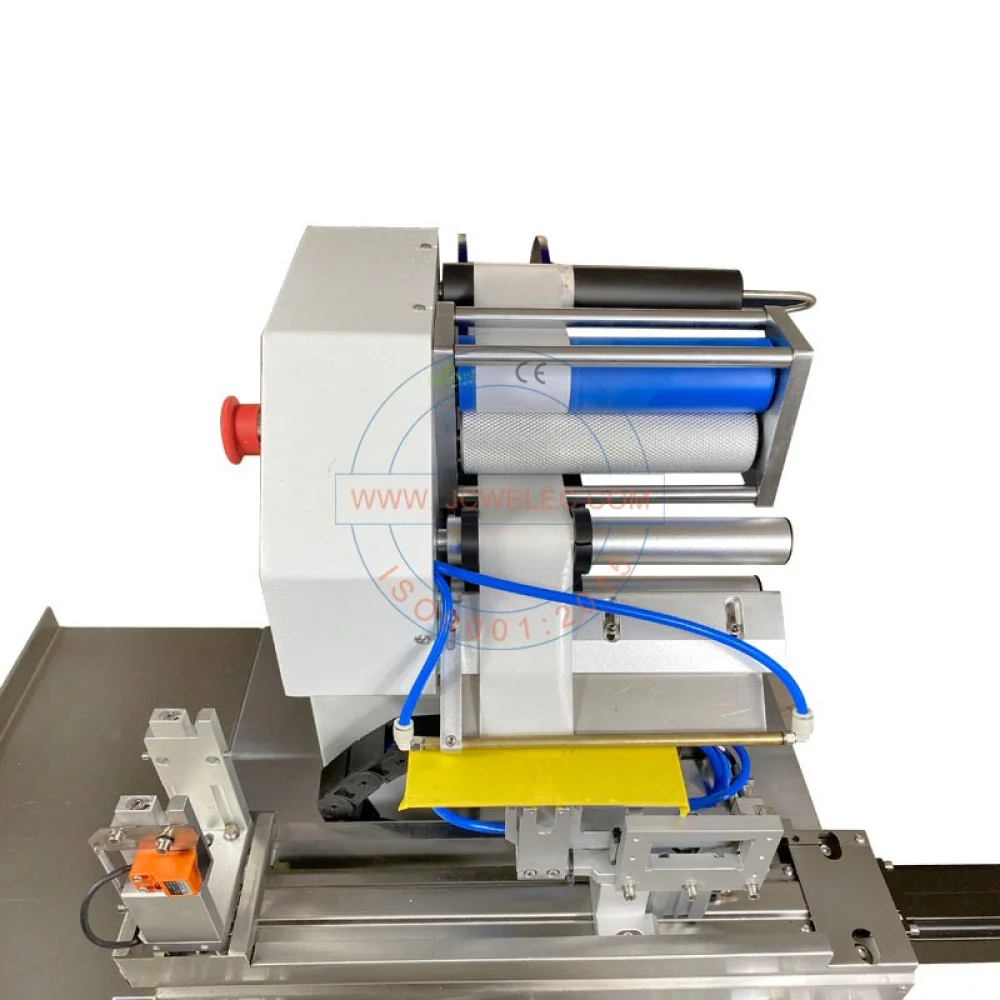

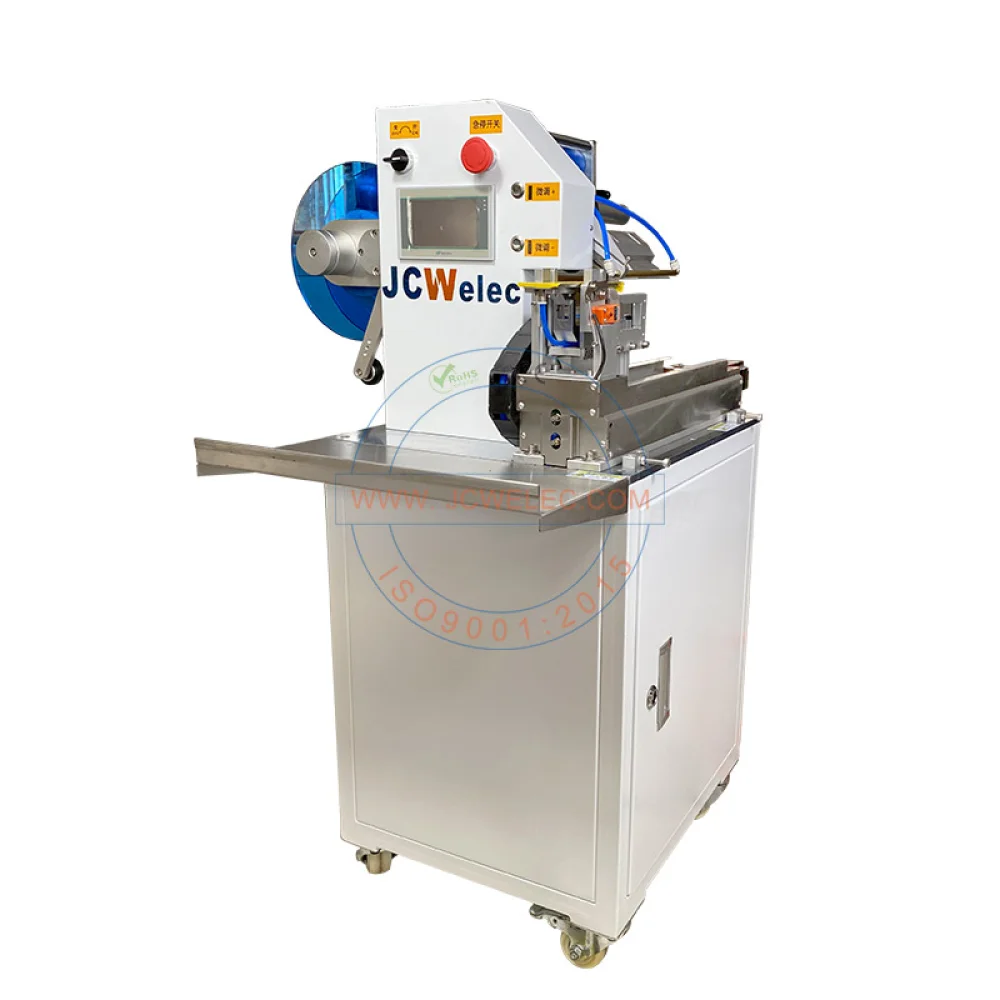

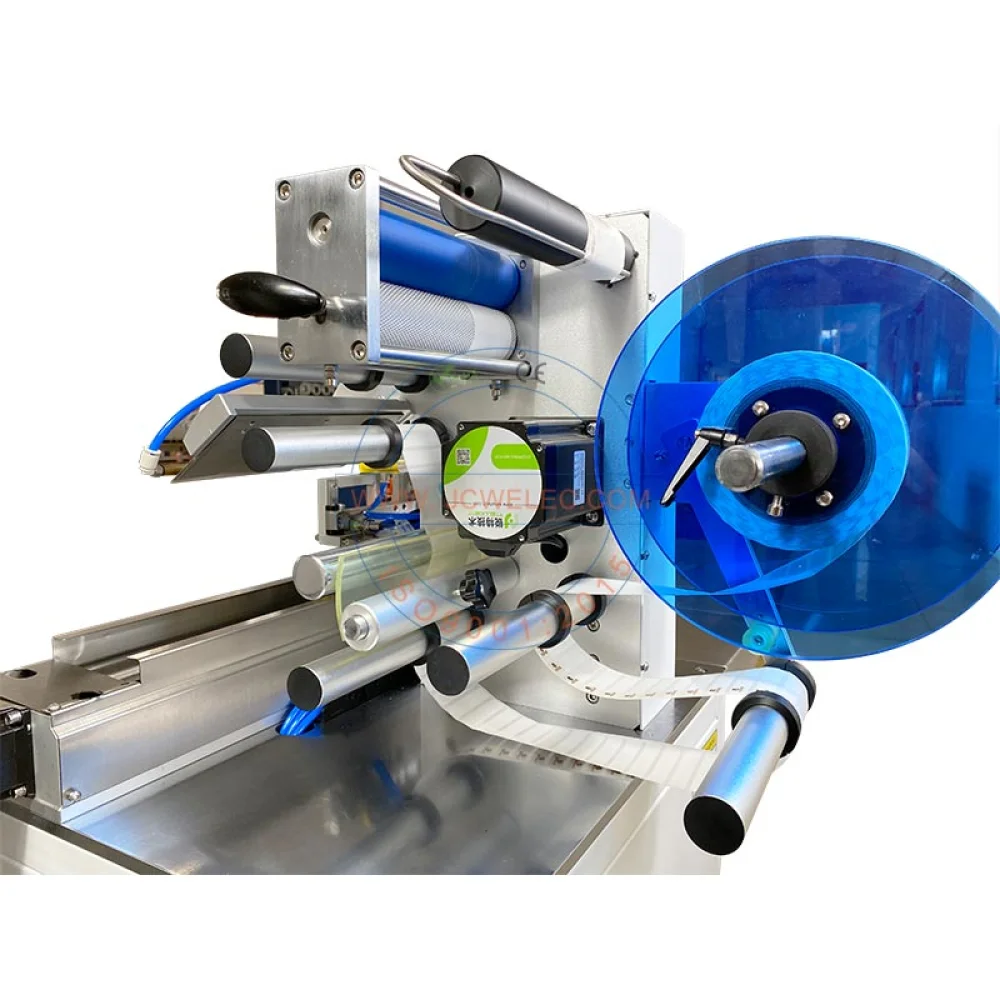

JCW-LB02

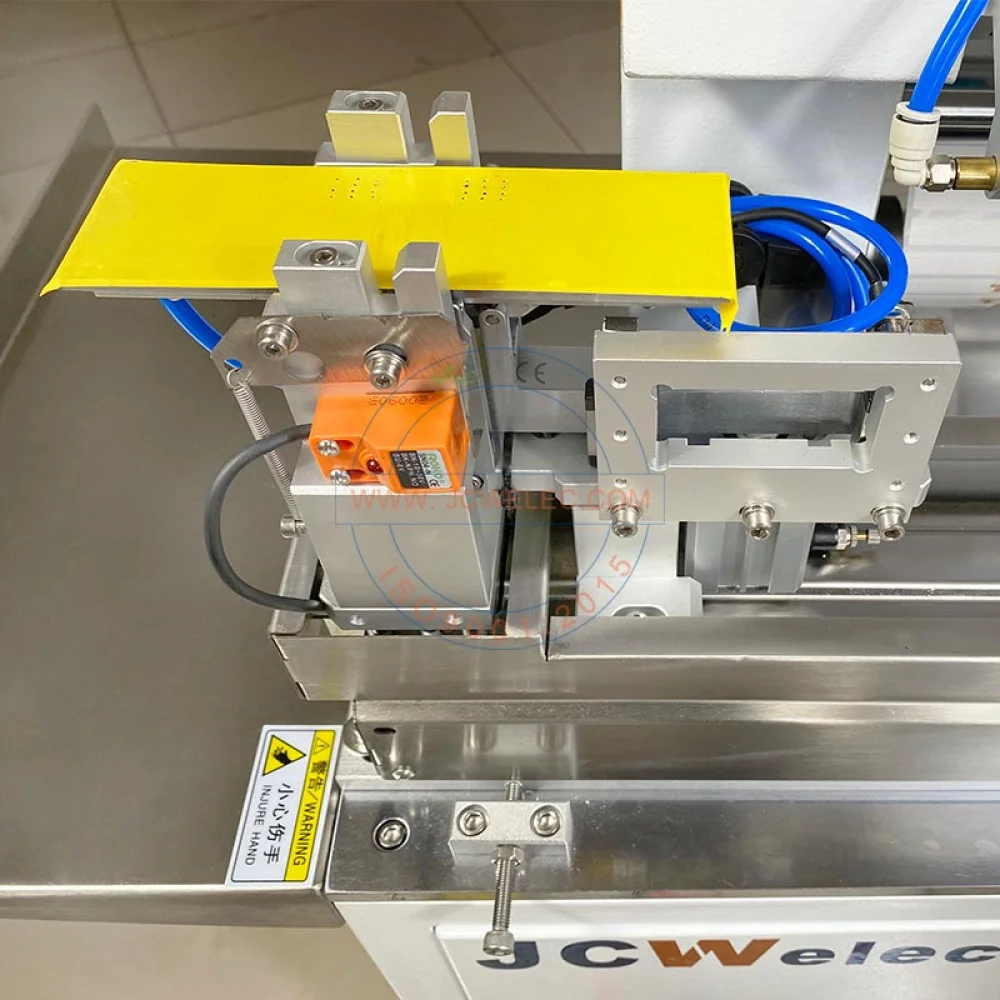

The label sensor quickly senses the label gap to complete the marking completion identification
Reasonable mechanics structure design ensures smooth and stable labeling
Easy to apply, can be adjusted to work with different spec products
Improve the labeling efficiency, film attachment, accurate placement, good quality and stability
Avoid manual labeling inefficiencies, skew, foaming, folds and others

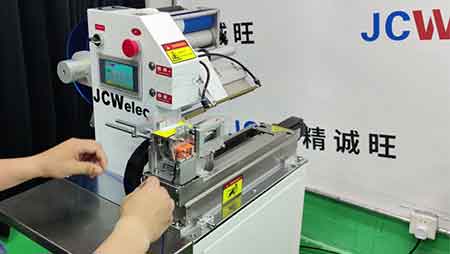

1-3mm Small Wire Labeling
3 - 10mm Cable Labeling

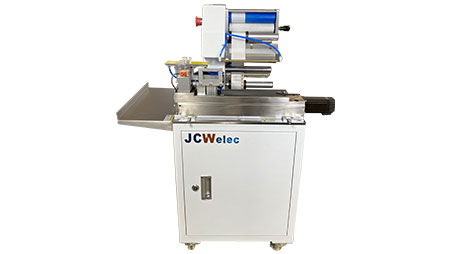

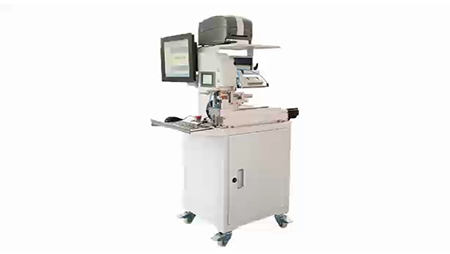

Wire Label Printing & Folding
| Model | JCW-LB02 Wire Labeling Machine |
| Wire diameter | 1-3 / 3-10 mm [ optional ] [ Universal use is possible by replacing accessories ] |
Labeling way | Fold |
| Label size | 10 - 60 mm |
| Base paper | GLASSINE / SCK0 |
Feed direction | Set word direction by feed direction |
| Product rate | 30 pcs/min (depends on label size and operator) |
| Accuracy | ± 0.5mm |
| Power supply | AC 220V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.6 MPa |
| Dimensions | L 550 x W 420 x H 780mm |
| Weight | 70 KG |
