0.35 - 6mm² Cable Stripping Twisting Ferrule Crimping Machine

JCW-F3 Ferrule

Ideal electro-pneumatic controlled strip & crimp machine

Servo motorized crimper, high precision

Loose piece tubular bootlace ferrules max length 12mm

Insulated end sleeves ranging from 0.35 to 6.0 mm²

Fast exchanging a few parts for different cross-sections

Cycle time for each operation is 2.5 seconds

Quadrilateral / Hexagonal / Trapezoidal crimping profiles

Inquire Now

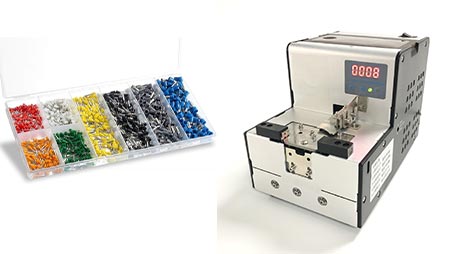

4 Feeders Processing Ferrules Ranges From 0.3 to 6.0sq mm

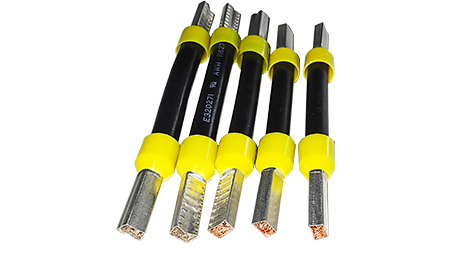

6mm² Insulated End Sleeve Custom Trapezoidal Crimping Profile

JCW-F3 FERRULE 0.35 - 6mm² Cable Stripping Twisting Ferrule Crimping Machine

JCW-F3 is an all-in-one programmable machine specially developed for bootlace ferrule (tubular ferrule) terminal processing.

This unit integrates three core functions in a single station: wire insulation stripping, stranded conductor twisting and ferrule crimping.

All key working parameters are programmable and can be saved as independent recipes.

Users can adjust and store stripping length, twist strength, crimp depth and working speed to fit various ferrule sizes and wire gauges.

This machine is designed for easy-entry bootlace ferrules.

The precise twisting module neatly bundles loose copper strands before crimping, making the twisted conductor bundle smoothly feed intoferrules, preventing scattered wires, bad contact and hidden electrical risks.

It supports wire cross sections from 0.5 mm² up to 6.0 mm². With stable crimp force and consistent forming effect, it ensures high repeatability for batch harness production.

Compact benchtop layout saves workshop space. It is widely used in control cabinet wiring, power equipment, servo harness and other industrial wiring applications requiring reliable ferrule termination.

Model	JCW-F3 0.35-6mm² Wire Stripping Ferrule Crimping Machine
Function	Single wire, Multicore cable, Wire end stripping, Conductor twisting, Tubular insulated terminal, Quadrangle crimping, Indent crimping, Stripping length, Cutting depth, Data library
Conductor cross-section	0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 mm² [ changing ferrule feeder ]
Ferrule feeder	4 sets
Stripping length	Max 15 mm
Multicore cable prepare	Outer sheath stripping length minimum 40 mm
Crimping shape	Quadrilateral / Hexagonal / Trapezoidal [ Customizable ]
Crimping length	6 - 12 mm
Crimping motor	Servo
Cycle time	2.5 seconds, 1000 - 1300 pcs / hr
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Customize logo	Yes
Rated power	400 W
Air supply	0.6 - 0.8 MPa ( clean and dry air )
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 430 x W 505 x H 425 mm
Weight	68 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
