High-performance Multi-conductor Cable Strip Crimp Machine

JCW-2TP

Shortest outer jacket stripping length 13.5mm

Side- / End-feed terminals, 2 tons crimp force

High-precision crimping applicator

Wire diameter 0.6 to 2.5 mm

Servo-motorized wire transfer and stripper

PVC, Teflon, Silicone, Low halogen, Fiberglass cables

AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon

Inquire Now

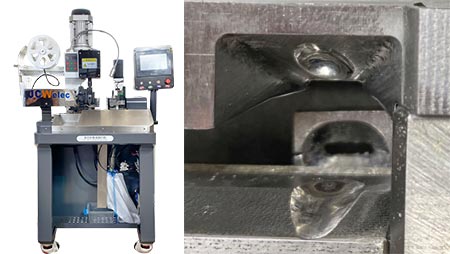

Standard Version

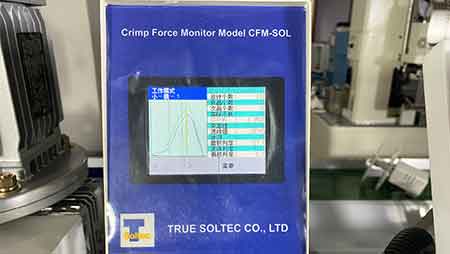

CFM Version

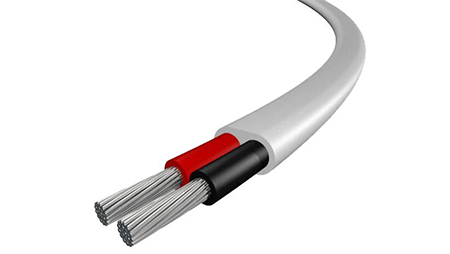

Custom 2-core Version

2 Terminal Carrier Strip Version

JCW-2TP Versatile Multiconductor Cable Stripping and Crimping Machine

JCW-2TP is a dedicated workstation built for processing multi-core sheathed cables.

Prior to terminal crimping, the machine strips insulation from individual inner cores and neatly arranges them into aligned position.

This orderly preparation prevents twisted or misplaced strands during crimping.

Every wire arranging fixture is custom engineered to match the cable layout and core count of your specific job. No universal jig fits all cable types.

Custom tooling ensures stable positioning and consistent finished quality for complex sheathed cable harness batches.

This solution suits control cables, shielded multicore wires and bundled harness assemblies that require tidy, repeatable core termination.

Crimp force monitoring can be fitted optionally for quality control.

Model	JCW-2TP Multiconductor Cable Stripping and Crimping Machine
Function	Multiconductor cable, Inner wire stripping, Terminal crimping, Side- / End-feed applicator, Stripping length, Cut depth, Crimping depth, Crimping position, Robot arm, CFM
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force	2 tons [ 3 tons on request ]
Stroke	30 mm
Sheath pre-strip length	2 - 4 cores: minimum 13.5 mm
Sheath pre-strip length	5 - 15 cores: minimum 25 mm
Inner stripping length	0.5 - 10 mm
Inner cores numbers	2 - 20 cores [ Customizable ]
Inner cores diameter	φ0.6 - φ 4.0 mm
Product rate	700 - 1000 pcs/hr
CFM	Optional
Rated power	1500 W
Power supply	AC 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Dimensions	L 850 x W 550 x H 1350 mm
Weight	150 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
