6MM O.D Round Multicore Power Cable Cutting Stripping Machine

JCW-CS08

Excellent price to performance ratio

High performance on processing multicore cable

High-speed up to 1300 pcs/h with stripping double ends

Round multi-conductor cable up to 6mm OD

Applicable to thermal transfer printer

Automated length calibration

Fully programmable model

Cable run-out sensor

Inquire Now

Automatic 6mm Multi-conductor Cable Cut & Strip Machine JCW-CS08

Focus on multicore cable, strip both layers, best selling

Specialist in processing multicore cable

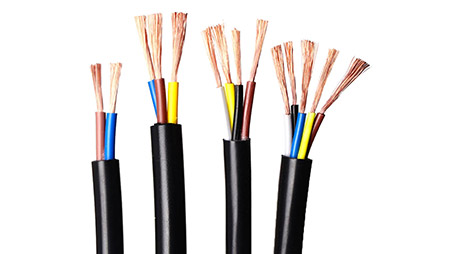

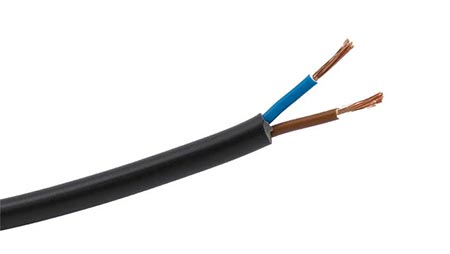

The JCW-CS08 is designed for cutting and stripping multicore cable up to 6mm O.D, it perfectly cuts and strips both of outer jacket and inner cores at one time. This cut and strip machine's highlight part is that it will flatten the inner cores so well before stripping, that guarantees the vertical cutting and neat stripping. The JCW-CS08 cut & strip machine adopts a titanium coated cutter blade, which has 2 sharp cutting edges.

This cut & strip machine also can be used for single wire up to 8 mm².

Easy to use

Each of the JCW-CS08 cutting and stripping machine comes with English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- Automatic one-touch calibration function for cutting length.

- Cable run-out sensor gives the machine a stop signal while the cable is used out.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor

A variety of peripherals

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

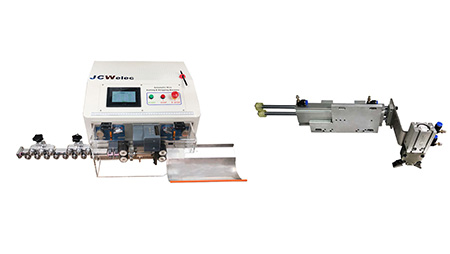

- Robot arm controlled by CS08

- Cable stacker, 1 meter to 6 meters

Model	JCW-CS08 Automatic Multi-core Cable Cutting and Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size	6 mm O.D.
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Single wire	YES
Multi-core cable	Round
Outer jacket stripping length	Leading ( right ) side: 250 mm [ partial stripping ]
Outer jacket stripping length	Trailing ( left ) side: 100 mm [ partial stripping ]
Inner core stripping length	30 mm at dual-ends
Middle strip	13 sections
Production rate	1300 pcs/h by 100mm wire length [ multi-layer stripping ]
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable unwinder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 460 x W 470 x H 350 mm
Dimensions	Wire straightener: 350mm
Weight	38 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
