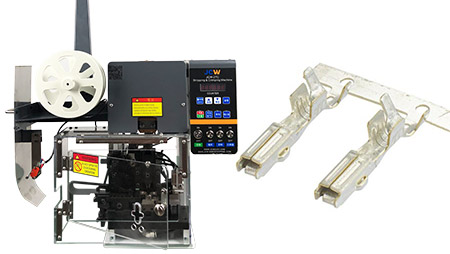

JCW-2TC Electronic Side-feed Wire Stripping and Crimping Machine

Stripping before crimping, precisely position wire and crimp terminal onto the wire


Higher precision, less labor work

The JCW-2TC wire stripping and crimping machine is designed to process the side-feed terminal in a roll, it's capable of stripping the wire and crimping terminal in one work step. The wire gripper holds the wire tightly and positions it above the terminal precisely, the user does not need to move the wire so to guarantee high precision. Insulation cutting accuracy and wire position accuracy are 0.05 - 1 mm. This stripping and crimping machine is equipped with a scrap vacuum system and lighting of the working area.


The JCW-2TC stripping and crimping machine is especially suitable for processing multi-core cables, especially for small inner cores, it has a huge advantage compared with separate processing while improving accuracy, the JCW-2TC stripping, and crimping machine can release at least 2 labor workers.


Compact, reliable, and extendable

The JCW-2TC wire stripping and crimping machine only requires a similar space as a regular semi-auto terminal crimping machine. It featured a really compact wire gripper in order to make it more approachable to the front working area.


The robust design of the whole machine and crimp applicator guarantee long service life and reliable performance. The machine speed is adjustable to suit the proficiency of the operator.


The standard JCW-2TC stripping and crimping machine is designed for processing wires up to 0.75mm². By replacing the crimping motor and stripping cylinder group, it can process wires up to 2mm².


Various peripherals and options

- Crimping force monitoring ( CFM )

- 3 tons press

- Double crimping applicator

Model

JCW-2TC Automatic Wire Stripping and Crimping Machine

Function

Single wire, Multiconductor cable, Wire stripping, Terminal crimping, Side/horizontal feed terminal

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force1.5 tons [ Customizable ]
Conductor cross-sections0.03 -  2 mm² [ AWG 32 - 14 ] [ Customizable ]
Stripping length1 - 10 mm
Stroke30 mm
Rated power450 W
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.3 - 0.6 MPa ( clean and dry air )
DimensionsL 600 x W 400 x H 850 mm
Weight68 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
