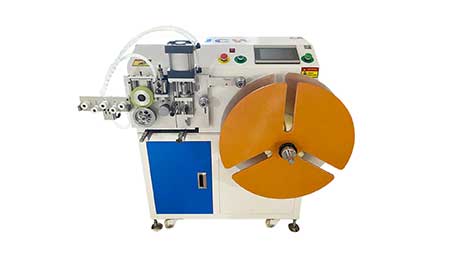

50KG Versiion | 60MM Plate, Cable Roll

50KG Versiion | 60MM Plate, Cable Roll

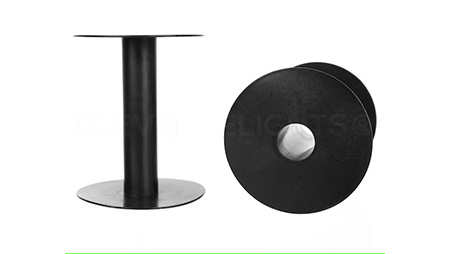

15KG Version | Long Plastic Cable Reel

15KG Version | Long Plastic Cable Reel

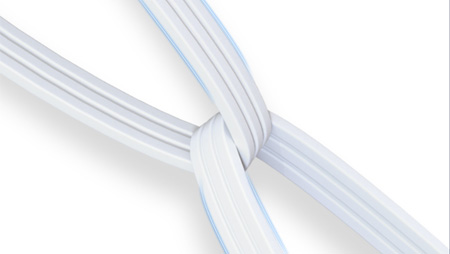

3KG Version | Flat Optic Fiber Cable Reel

3KG Version | Flat Optic Fiber Cable Reel

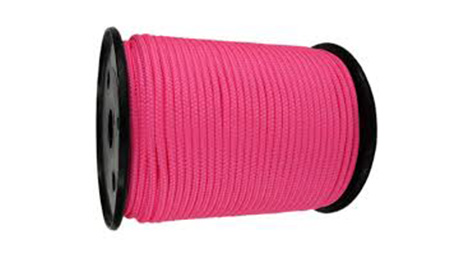

Braided Polypropylene Rope Coiling

Braided Polypropylene Rope Coiling

Fully customizable measuring to winding machine


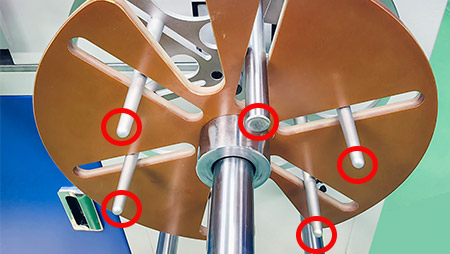

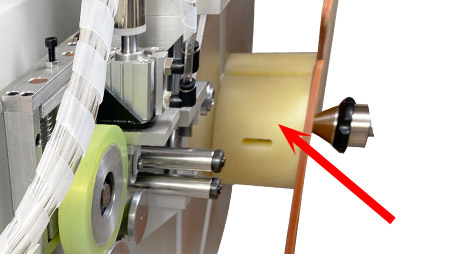

JCW-WB05 series machines are highly customizable winding machines that can divide large coils of cable, steel wire, and pipes into small coils, or wind materials that have been cut into desired lengths into coils. The JCW-WB05 series machines can wind materials into hollow coils, or use a spool and wind the material onto the spool.

The complete functions of this machine include metering, cutting, winding, and ranking. The above 4 functions can be combined in different ways to meet customer needs in a variety of materials and application scenarios.

Model

JCW-WB05B Heavy-duty Automatic Cable Coiling Machine

Function

Measure cable, feeding length, wind cable by order, automatic cut cable. Feeding speed, winding speed, winding cycles.

Wire diameterMax 10 mm [ Customizable ]
Coil inner diameter50 - 300 mm [ Customizable ]
Cable plate diameter220 - 350 mm [ Customizable ]
Coil widthMax 200mm [ Customizable to 300  / 400mm ]
Cable spoolOn request only
Spool dimensionsCustomizable
Winding speed1 - 10 cycles / s
Cable weight 3 - 50 KG [ Customizable ]
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable prefeeding machine
Rated power500 W
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsL 1000 x W 850 x H 1030 mm
Weight150 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
