Standard & Flexible Wire Processing Machine [ 0.03 - 10mm² ]

JCW-CS03

Standard & flexible cut and strip machine

4.3" color touchscreen simplify programming

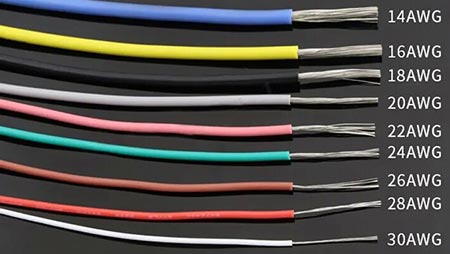

Single wire 0.03 mm² to 6 mm², extendable to 10mm²

Expand capability to twin parallel zip-cord, multicore cable

Automatic cutting length calibration ensures precision

Wire run-out sensor gives machine stop signal

Applicable to thermal transfer printer

Inquire Now

Standard Automatic Wire Cutting and Stripping Machine JCW-CS03

Flexible cut and strip model, expanded capabilities to zip-cord

Robust and Precise

The JCW-CS03 is a proven precise machine for cutting & stripping applications. The JCW-CS03 is equipped with high torque step motors, subdivision drivers, wear-resistant steel rollers ( urethane rollers are optional for small wire and avoid leaving marks on insulation ), a robust cutter head, and a transparent safety cover. This standard automatic wire cut & strip machine processes single wire up to 6 mm² quickly and precisely, with a high level of precision ± 0.002 x wire length, meanwhile bringing very low noise.

Different from other inferior machines you always see, we guarantee high reliability to all JCW machines with 14 years of real manufacturing capability, continuous improvement, and professional experience.

Extended capabilities

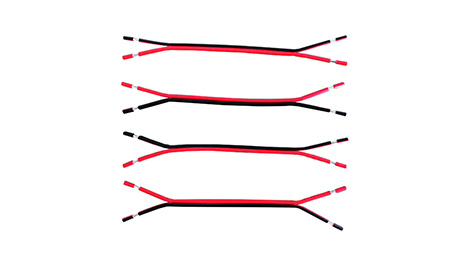

The JCW-CS03 Cut & Strip machine offers vivid expanded capabilities. By changing the straightener, guide tube, and cutter blades, you can slit, cut and strip zip-cord precisely, all parameters are programmable. It's also capable to process both round and flat multicore cables.

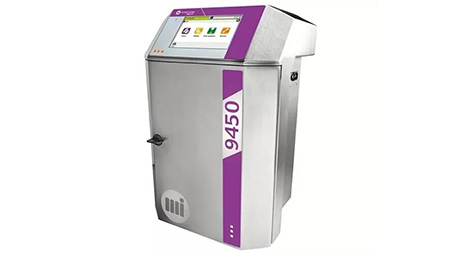

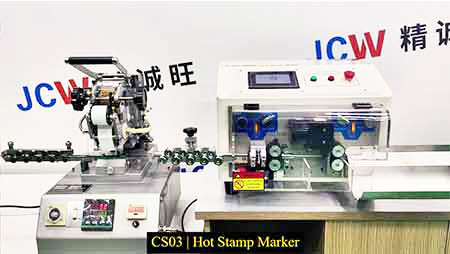

The unique mark system allows the integration of thermal transfer printers, print time, and position can be set up quickly and easily by the operator.

Simple operation, high-performance

Whether novice or professional, you can quickly use the JCW-CS03 wire cutting & stripping machine proficiently. The control with touch screen has an intuitive user interface for simple and safe operation. Thanks to the microprocessor control, the parameters such as wire cutting length, stripping length, slitting length, wire diameter, speed, mark position, etc. can be accurately entered and stored for future recall at any time.

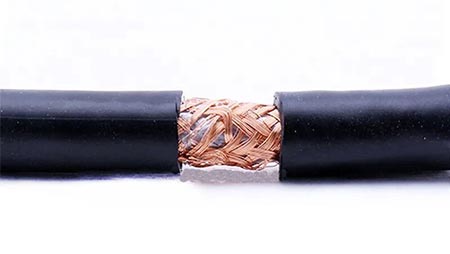

This cutting and stripping machine features an automatic one-touch calibration function for cutting length and middle strip capability. The wire run-out sensor gives the machine a stop signal while the wire is used out.

Build your automated product line

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

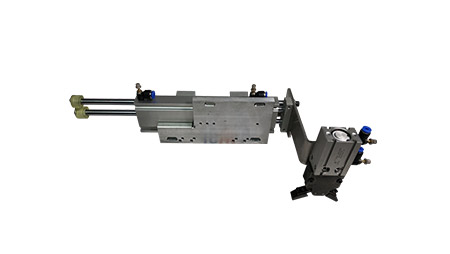

- Robot arm controlled by CS02, simple setting

- Conveyor belt, 1 meter to 6 meters

- Twin parallel cable splitter

- Thermal transfer printer

Model	JCW-CS03 Automatic Wire Cutting and Stripping Machine

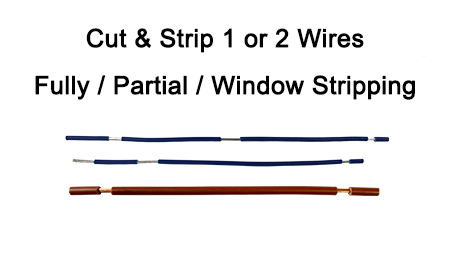

Function	Single wire, Multicore cable, Zip-cord, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Flat cable slitting, Wire lack sensor, Length correction, Thermal transfer printer
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.03 - 6 mm² [ 10mm² on request ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 50 mm [ Full stripping ]
Stripping length	Rear ( left ) side: 30 mm [ Full stripping ]
Middle strip	13 sections
Production rate	4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ]
Data library	100 programs
Zip-cord	Optional
Flat multicore cable	Inner core stripping ( optional )
Round multicore cable	Outer jacket stripping ( optional )
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable splitter, wire pre feeder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 460 x W 470 x H 350 mm
Dimensions	Wire straightener: 250mm
Weight	35 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
