Robust casting machine body
2T / 3T / 4T crimping force
Apply to all types of crimping applicators
Safety guard on request
Easy to change applicators, increased productivity
Safety cover, EM-STOP button & paper winder are optional

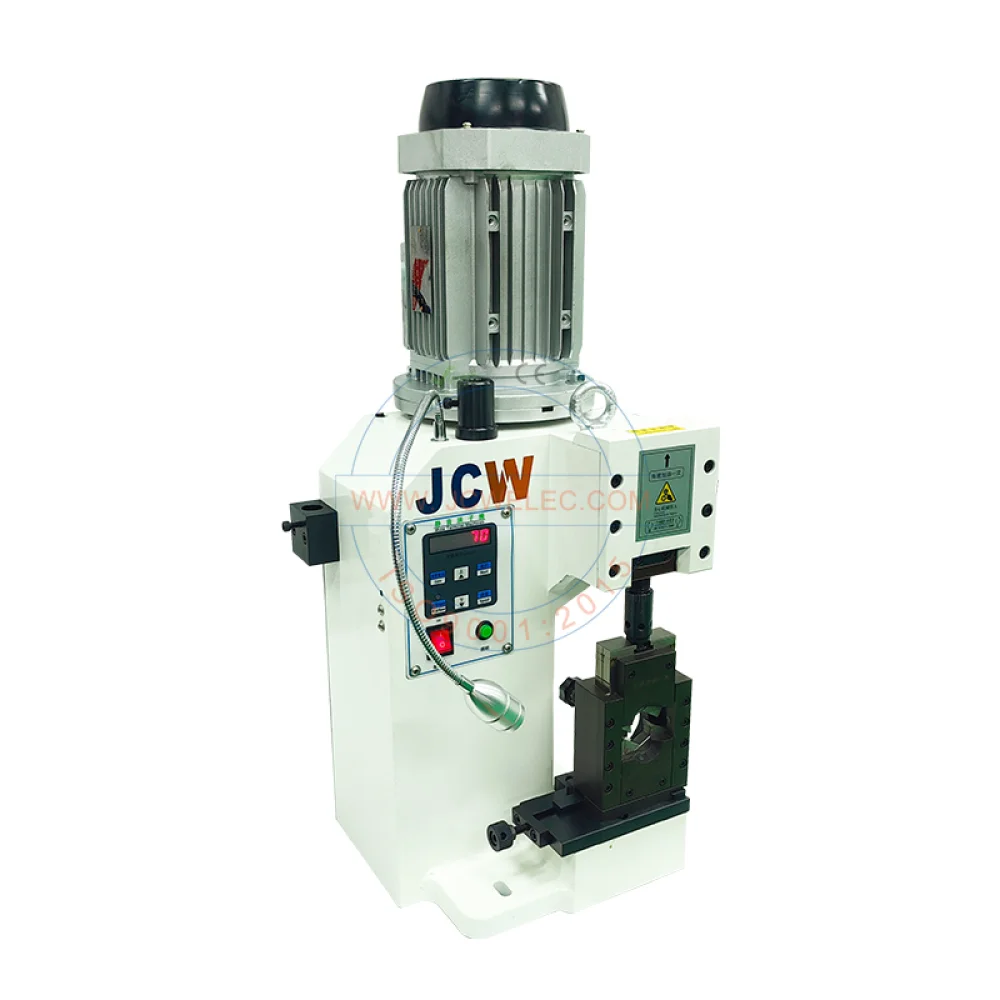

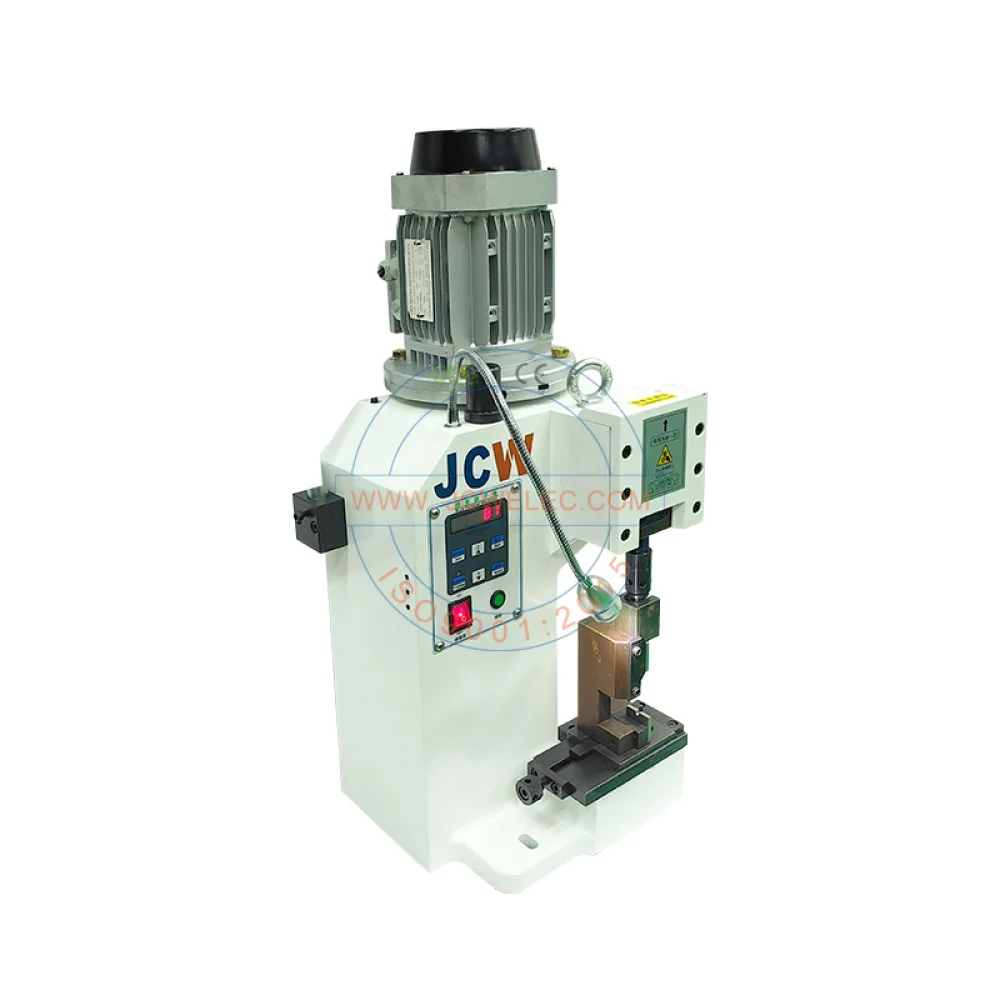

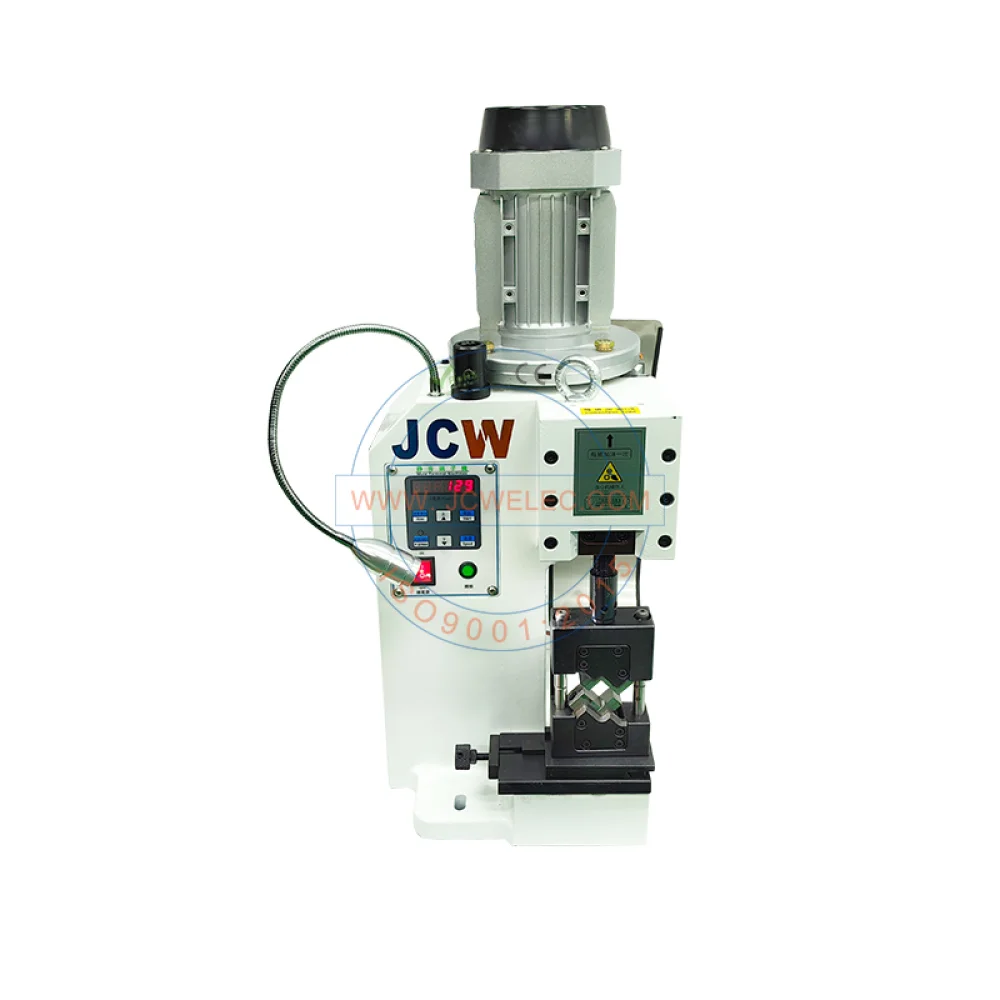

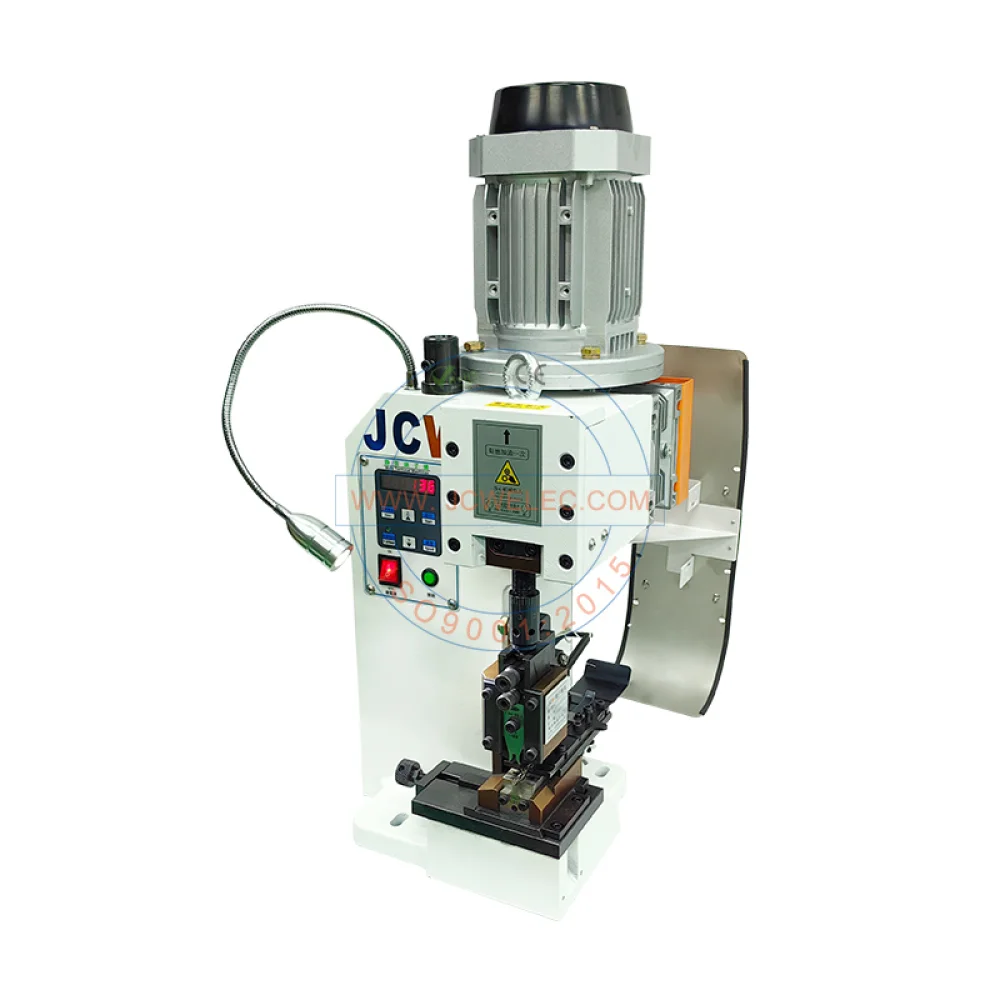

JCW-2T CASTING Series
Robust casting machine body
2T / 3T / 4T crimping force
Apply to all types of crimping applicators
Safety guard on request
Easy to change applicators, increased productivity
Safety cover, EM-STOP button & paper winder are optional

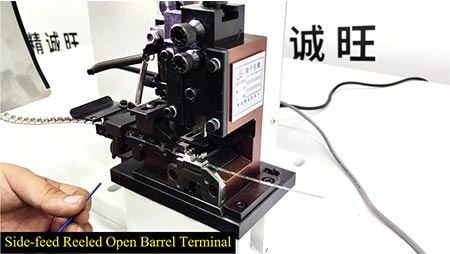

30COS | Side-feed Terminal Crimping

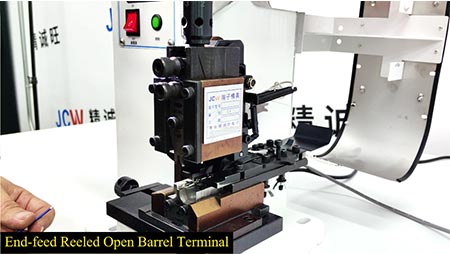

30TE | End-feed Terminal Crimping

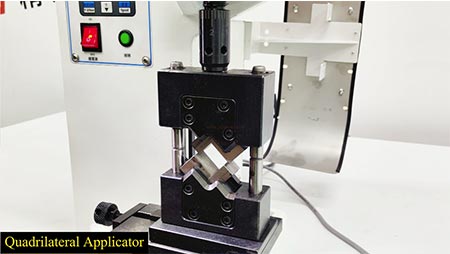

FFA | Quadrilateral Applicator Ferrule Square Crimping

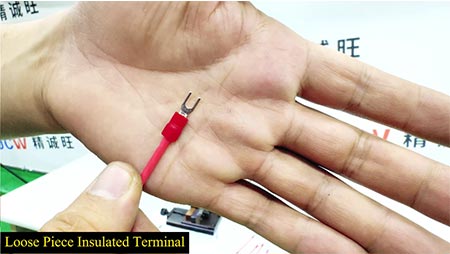

LCM | Loose-piece Terminal Indent Crimping

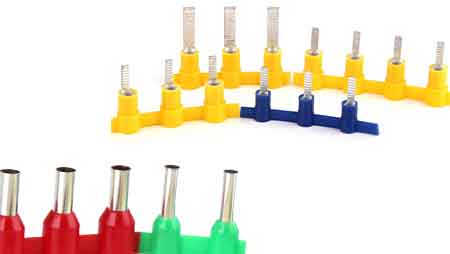

Reeled Insulated Terminal Crimping

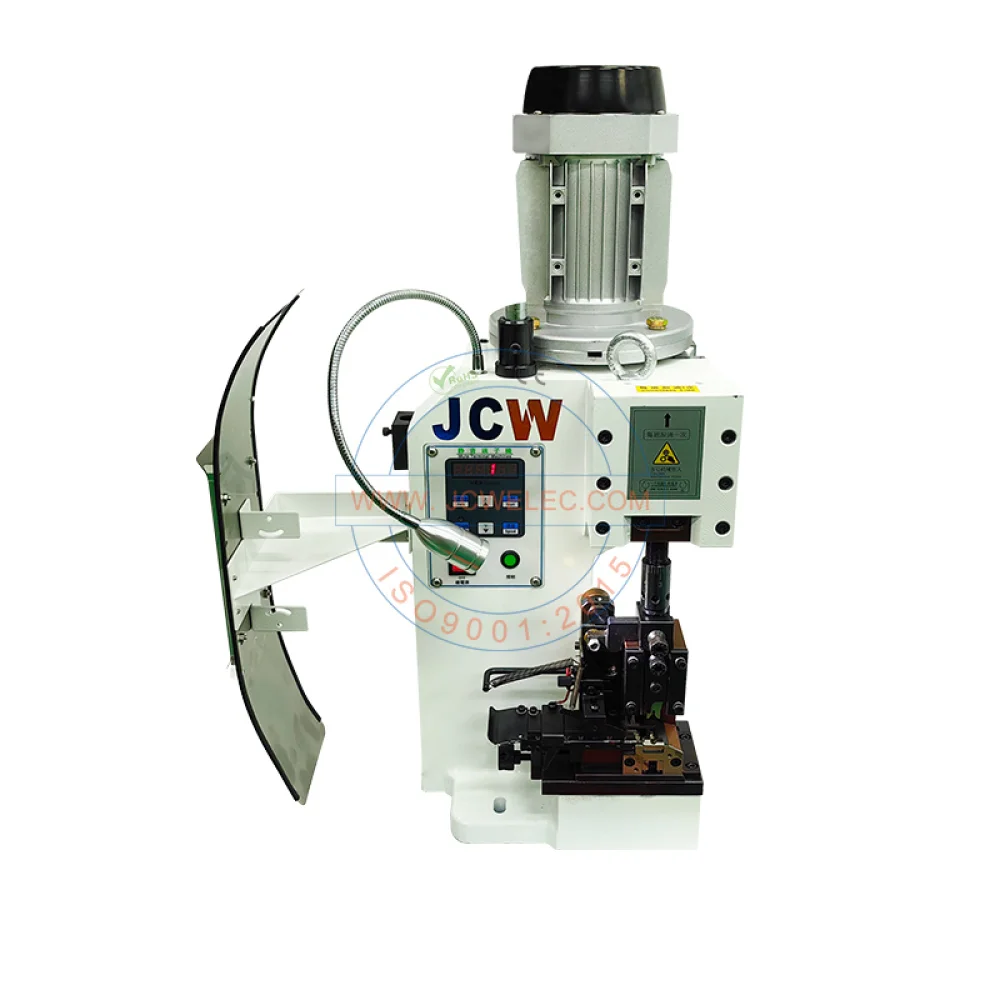

The JCW-2T CASTING series of semi-auto crimp press adopts a one-piece casting body, which brings higher stability to this machine and also extends the service life. The quick crimp tool change ensures the flexibility of the machine and ensures that it can be used with any type of crimp terminal.
Model | JCW-2T CASTING Series Semi-automatic Terminal Crimping Machines |
Function | OTP crimping applicators, side-feed / rear-feed / closed barrel terminals, switch pedal |
Conductor cross-section | 2 mm² [ customizable ] |
Crimping force | 20 KN [ 30 / 40 KN on request ] |
Stroke | 30 MM |
Rated power | 2T: 750 W |
3T: 1100 W | |
4T: 1500 W | |
OEM | Yes |
Activation | Foot pedal |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | 2T: L 270 x W 300 x H 650 mm |
3T: L 270 x W 300 x H 650 mm | |
4T: L 280 x W 320 x H 700 mm | |
Weight | 2T: 70 KG |
3T: 72 KG | |
4T: 80 KG | |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
