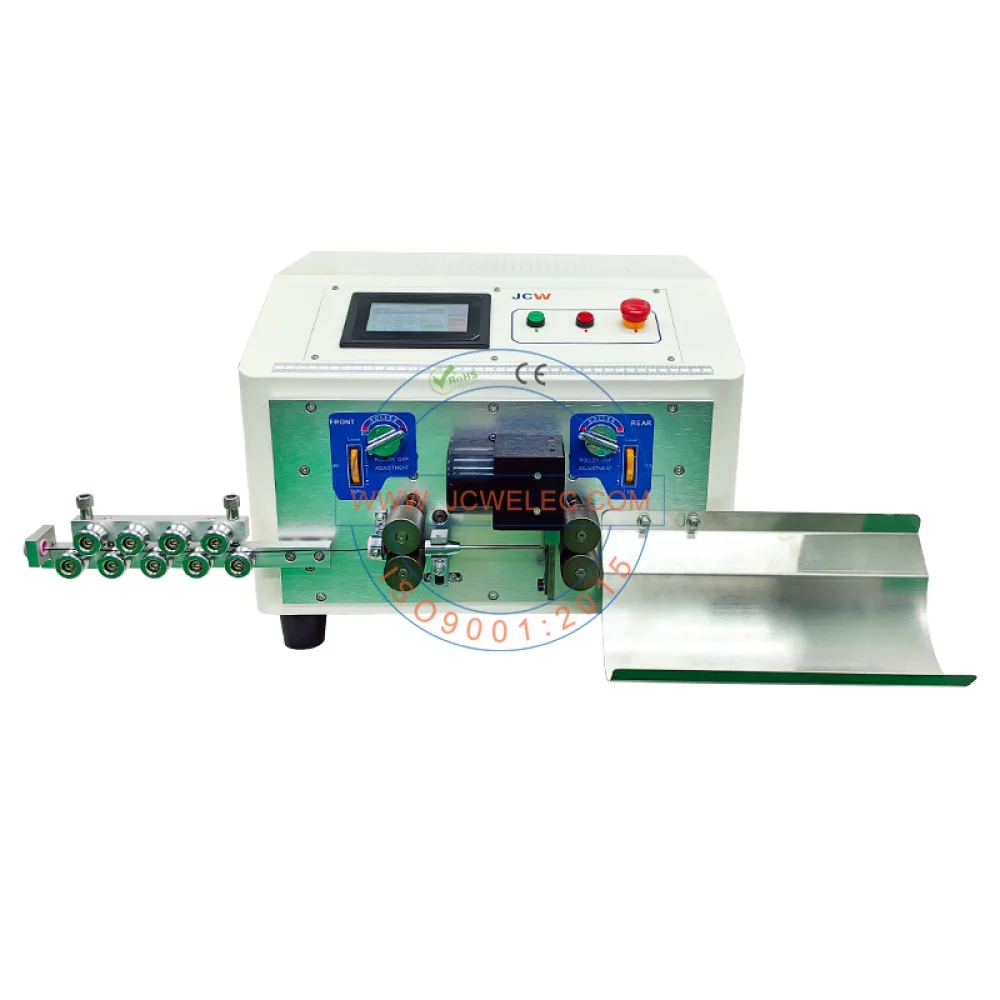

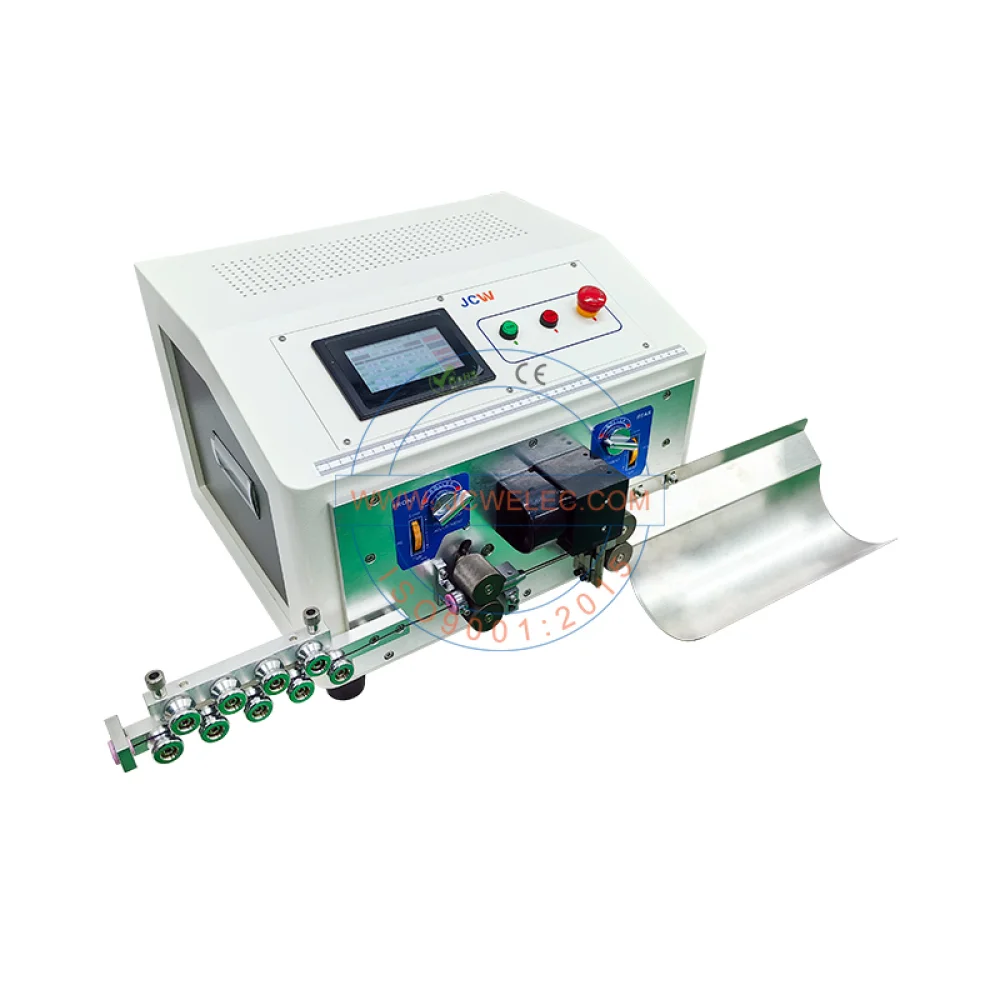

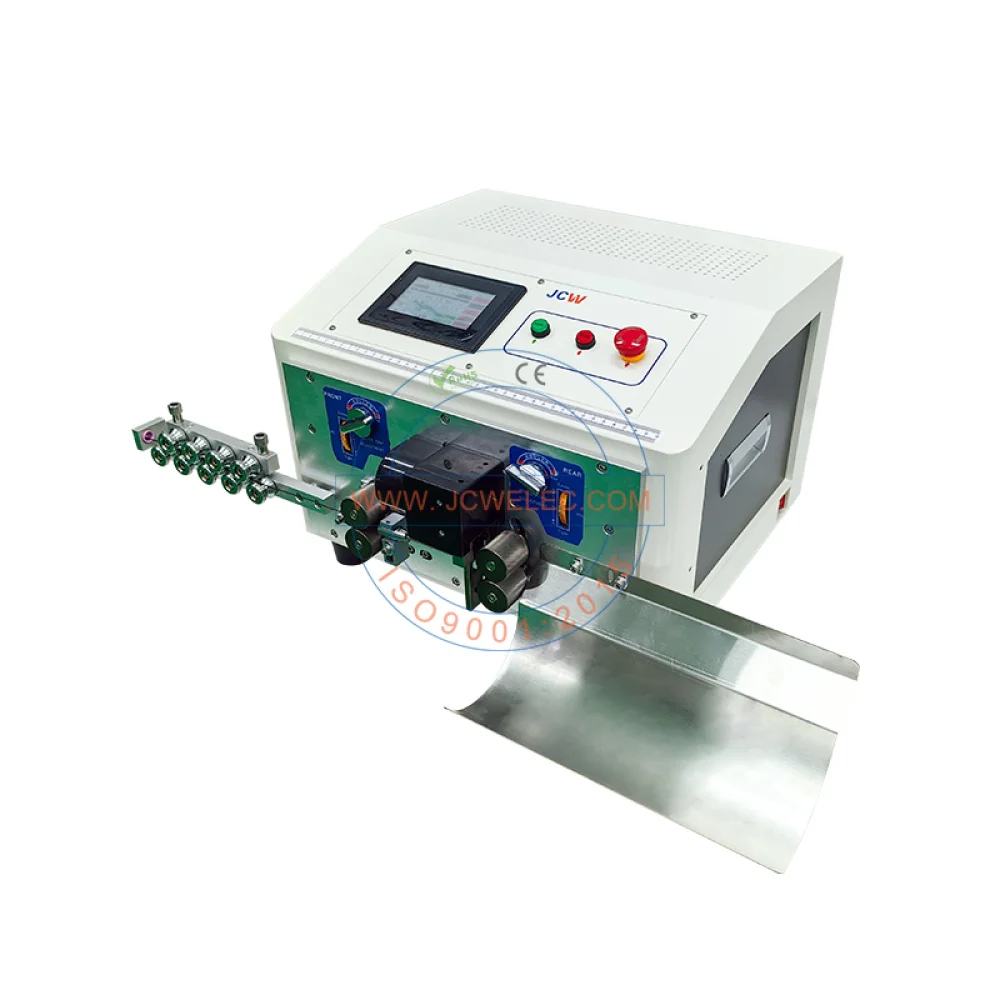

Low-priced Automatic Wire Cut & Strip Machine

JCW-CS03 ECO

High-precision automatic wire cut & strip

Standard V-blade, optional Radius blade

4.3" color touchscreen simplifies programming

Automatic cutting length calibration ensures precision

Memory capacity for all of the process parameters

Single wire 0.03 mm² to 6 mm², 10mm² on request only

Double wires 0.03 mm² to 3 mm²

Safety guard is on request only

Inquire Now

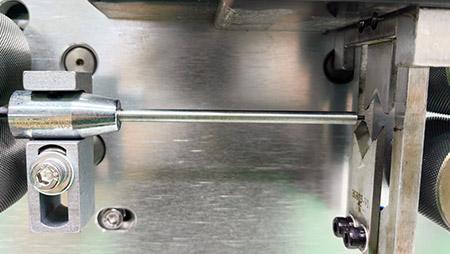

Single Wire Version

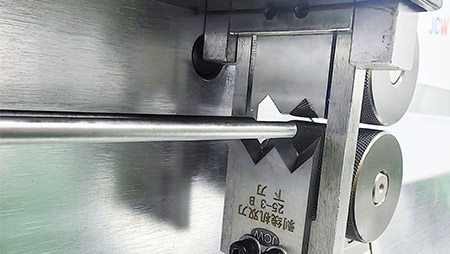

Dual Wire Version

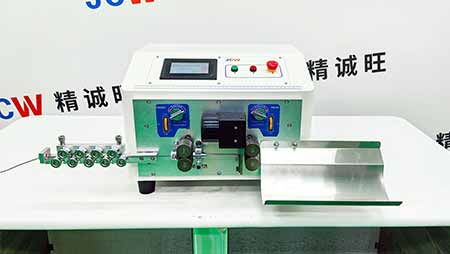

Low-priced Automatic Wire Cut & Strip Machine

JCW-CS03 ECO belongs to our Cut Strip series, serving as the entry-level single wire cut and strip solution.

Built for budget-sensitive users, it balances stable basic cutting and stripping performance with attractive pricing.

It handles single core wires up to 6mm², mainly for small gauge wire applications.

All wire job parameters are fully editable, can be saved into memory and quickly recalled for repeated production runs.

This machine is highly recommended for startup harness manufacturers and small processing workshops.

It adopts aluminum feeding rollers for wire transport. Please note this base model is without wire missing detection function and roller pressure adjustment structure.

The control interface comes with Chinese and English by default. More language options can be added upon request to fit global operators.

It operates independently and can only be paired with a prefeed machine; integration with other auxiliary peripherals is not supported.

Simple controls and low maintenance overhead make it a practical first wire processor for new production lines.

Model	JCW-CS03 ECO Low-priced Automatic Wire Cut & Strip Machine
Function	Single wire,Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.03 - 6 mm² [ 10mm² on request ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 50 mm [ Full stripping ]
Stripping length	Rear ( left ) side: 30 mm [ Full stripping ]
Middle strip	13 sections
Production rate	4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ]
Data library	100 programs
Safety guard	Optional
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Wire pre-feeder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 460 x W 470 x H 350 mm
Weight	31 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
