Double Axis Cable Prefeeder

Double Axis Cable Prefeeder

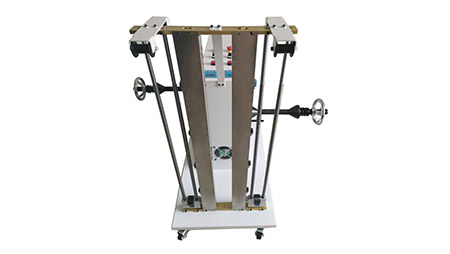

JCW-WP03 Automatic Double Drums Wire Prefeeding Unit

High-efficiency model, excellent price/performance ratio


The JCW-WP03 wire prefeeding unit is capable to load 2 spools, each one weighing up to 40 kg. We are able to customize it with 50 kg. This electrical prefeeding machine is designed to pull wires and cables from 2 reels simultaneously and provides constant tension to downline cable processing machines.


This active cable dereeler is equipped with an infinite speed control system,  which is activated with pendulum arms, requires no manual adjustment on feed speed, the feed speed automatically adjusts to the actual requirement of any wire and cable processing machine, including the cutting machine, cutting and stripping machine, automatic terminal crimping machine, etc.


When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.

Model

JCW-WP03 Automatic Double Drums Wire Prefeeding Unit

Wire diameter0.5 - 8 mm
Wire drum diameter400 mm
Wire drum width300 mm
Wire drum weight40 kg x 2 reels
Rated power1100 W
Power supplyAC 110 - 220V, 50 / 60 Hz
DimensionsL 1100 x W 840 x H 1020 mm
Weight65 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
