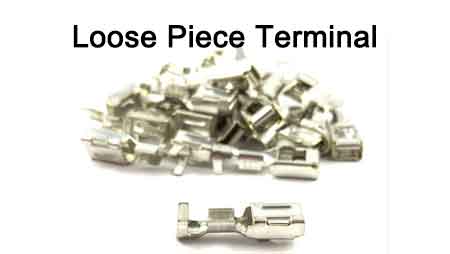

Loose-piece Terminal Crimping

Loose-piece Terminal Crimping

JCW-CST01 Fully Automatic Wire Stripping Terminal Crimping Machine

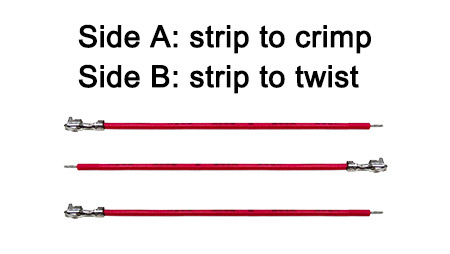

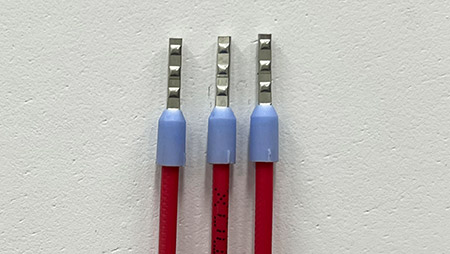

Single Wire Single-end Crimp & Single-end Strip to Twist

Feature of the machine

The JCW-CST01 is an entry-level model automatic crimping machine and serves various applications. The machine allows wire cutting, stripping, crimping, and twisting of wires in the cross-section range from 0.1 mm² to 2 mm², crimping force is 2 tons ( 20 KN ). The processing capacity can be expanded to 4 mm² and 4 tons crimping force. The compact machine design provides economic flexibility and high productivity over 4000 pieces per hour.

High-quality processing and simple operation

To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigid transmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offers you accurate input and clear vision. The JCW-CST01 offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.

Various peripherals and options

- Crimping force monitoring ( CFM )

- Wire twisting function in front side

- 4 tons crimping machine

- Wire prefeeder for keeping proper wire tension

- Vibrate bowl for loose terminal

- Conveyor belt for stacking finished wire

- Customize HMI, language & logo

ModelJCW-CST01 Automatic Single-end Wire Crimping Machine

Cut depth, Strip length, Full stripping, Partial stripping. Side 1: stripping, crimping. Side 2: stripping, twisting. Data library.

Wire cross-section0.1 - 2 mm² (AWG 28 - 14)  [ Customizable ]
Strip length
1.5-10 mm
Strip length increment0.1 mm
Cut length ( L )45 - 999999 mm
Cut length accuracy± 1mm + 0.002 x L
Production rate4200 pcs/h by 300mm wire length
7" touch screen, English / Chinese  [ other languages on request ]
Data library100 programs
Crimping force20 KN ( 2.0 tons )   [ Customizable ]
Optional peripheralWire pre-feeder, CFM, wire stacker
DetectionWire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]
Power supply AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 ~ 0.7 MPa [ clean and dry air ]
DimensionsL 650 x W 750 x H 1500 mm
Weight310 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
