Automatic 2 Wires Cutting Stripping and Twisting Machine

JCW-CS09

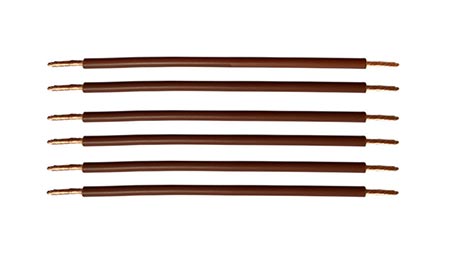

Single wire stripping and twisting

High-speed up to 7000 pcs/h with stripping and twisting

Automated length calibration

Fully programmable model

Inquire Now

JCW-CS09 Automatic Wire Cutting Stripping and Twisting Machine

Specialist Wire Stripper and Twister

The JCW-CS09 is a fully programmable bench-top stripping & twisting machine for processing 2 pieces of wires up to 3mm². All of the parameters such as wire cutting length, stripping length, twisting length, twisting force etc. can be accurately entered and stored for future recall at any time. The JCW-CS09 cut & strip machine adopts high torque stepper motors, robust twisting station.

Easy to use

Each of the JCW-CS09 cutting and stripping machine comes with an English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- Data library saves 100 programs, you can name each one by a wish.

- Automatic one-touch calibration function for cutting length.

- Quickly change guide tubes and cutter blades.

A variety of peripherals

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS09

- Cable stacker, 1 meter to 6 meters

Model	JCW-CS09 Automatic Wire Cut Strip and Twisting Machine
Function	Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Twist force
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Capacity	2 wires, 0.1 - 3 mm² [ approx 3 mm O.D. ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Production rate	10000 pcs/h by 100mm wire length [ twist OFF ]
Production rate	7000 pcs/h by 100mm wire length [ twist ON ]
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable unwinder [ 1 station ] [ 2 stations ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 460 x W 700 x H 350 mm
Dimensions	Wire straightener: 250mm
Weight	42 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
