Max 8mm Diameter Heat Shrink Tube High-speed Cutting

Max 8mm Diameter Heat Shrink Tube High-speed Cutting

JCW-C03 Automatic Heat Shrink Tube Cutting Machine

High speed, high precision, vertical cutting

Specialist heat shrinkable tubing cutting machine

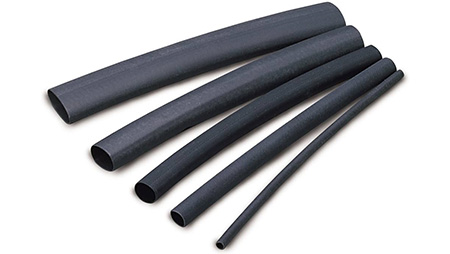

The JCW-C03 heat shrink tubing cutting machine is specially designed to measure and cut shrinkable tubes up to 8mm in diameter. This machine can also be used in the medical and mechanical industry to cut silicone tubes and PVC hoses. The JCW-C03 cutting machine uses high torque stepper motors and subdivision drives, this perfect combination ensures a high cutting speed of up to 30000 pieces per hour, meanwhile, the machine is extremely quiet.

The JCW-C03 electric tubing cutting machine uses Polyurethane rollers, offers precise feeding length as well as all-around protection to the shrink tube. The clamping diameter can be changed easily by turning a wheel.

The JCW-C03 can be used as a stand-alone machine or it can be integrated into a processing line.

Low maintenance, simple operation

The JCW-C03 electric tubing cutter is a fully programmable model. You can set the feeding speed, cutting speed, batch quantity, and total quantity via touchscreen. The input value will be saved automatically. This cutting machine is capable to save 100 programs.

We test each machine thousands of times after installation. Each machine comes with proven quality, the robust design brings it long service life and low maintenance needs. Operators only need to put 1 - 2 drops of regular lube oil into the cutter head daily.

ModelJCW-C03 Automatic Heat Shrink Tube Cutting Machine
FunctionCutting speed, calibrate cutting length automatically, batch set
Raw material diameter8 mm
Cutting length ( L )0.1 - 99999 mm
Cutting length increment0.1 mm
Cutting length tolerance0.002 x L
Production rate10000 - 30000 pcs/h
4.3" color touchscreen, English / Chinese  [ other languages on request ]
Data library100 programs
Power supplyAC 110 - 220V + 10 %, 50 / 60 Hz
DimensionsL 360 x W 450 x H 320 mm
Weight24 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
