JCW-C02N
Universal automatic cutting machine
Designed for tubing, cable, hose, flat strip lines and strands to a preset length
Tubes, flat ribbon cables and strands up to a material width of 100 mm
Simple operation, user-friendly English interface
High quality, high price to performance ratio

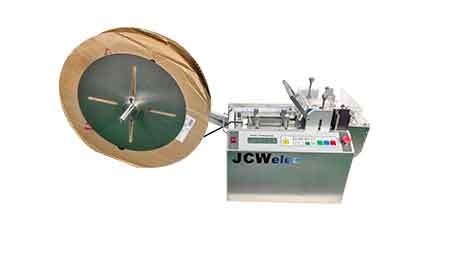

The JCW-C02N is designed to cut tubes, flat ribbon cables and strands to a preset length.
The machine can be operated by anyone without long training.
The machine can cut material with a thickness of max. 12 mm diameter and max. 100 mm width.
The material is inserted into the machine and clamped by the operator.
The machine automatically cuts the material, depending on the parameters set.
| Model | JCW-C02N Ecocut Digital Automatic Cutting Machine |
| Material | Tubing, cable, hose, flat strip lines and strands |
| Cutting width | 100 mm |
| Cutting length ( L ) | 0.1 - 9999.9 mm |
| Receipts | 10 |
| Cutter motor | Stepper |
| OEM | Yes |
| Wire run-out sensor | Yes |
| Power supply | AC 110 - 220V + 10 %, 50/60 Hz |
| Dimensions | L 380 x W 262 x H 350 mm |
| Weight | 28 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
