JCW-C08
5 - 30 mm diameter range, customizable to 60mm

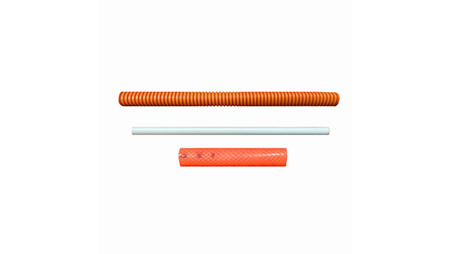

Non-slitted corrugated tube, plastic tubes
7" color touchscreen, saves 100 programs
Safety door sensor, material run-out sensor
Belt feeding system, top quality 40mm width belt
Sharp blade, high-speed cutting, straight cut section
Automatic one-touch calibrate the cutting length
High torque stepper motor, subdivision drive
JCW-C08 Flexible Corrugated Tube Cutting Machine
Straight cut, precise feeding, 5 - 30 mm diameter, customizable to 60mm
Star product for cutting tube/hose

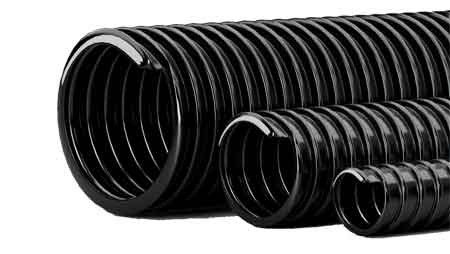

The JCW-C08 automatic hose cutting machine is specially designed to measure and cut corrugated tubing. This hose cutting machine is also capable to cut PVC tubes. The machine is equipped with 3 sets of tube guiders, φ10mm / φ20mm / φ30mm.
Operators can set process sequence, each group includes cutting length and quantity. The machine is capable to work by following the saved data automatically with high efficiency.
This electrical tube cutting machine uses a common knife blade to offer a beautiful cutting surface, the cut is carried out in vertical mode. High-speed cutting will not cause deformation of the corrugated tube.
Ultra-wide 40mm belt ensures precise feeding, offers long service life.
Efficient & intelligent
Driven by high-efficiency stepper motors, the JCW-C08 tube cutting machine has high-efficiency processing capabilities. The JCW-C08 pipe cutting machine is equipped with a transparent safety cover, which provides a clear vision. When it's open, the machine will stop working automatically and immediately. This machine is equipped material run-out sensor, the machine will automatically stop when there is a shortage of material.
| Model | JCW-C08 Flexible Corrugated Tube Cutting Machine |
| Function | Non-slitted corrugated tube, plastic tubes, cut speed, feeding speed, save program, calibrate cutting length |
| Tube diameter | 5 - 30 mm [ max 45 to 60 mm are customizable ] |
| Guider | 10 / 20 / 30 mm |
| Cutting length ( L ) | 4 - 99999.99 mm |
| Cutting length increment | 0.1 mm |
| Cutting length tolerance | L ± 1% mm [ material with no elasticity ] |
| Production rate | 15 - 80 pcs /min by different lengths |
| Data library | 100 programs |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| OEM | Yes |
| Power supply | AC 110 - 220V + 10 %, 50 / 60 Hz |
| Dimensions | L 600 x W 460 x H 500 mm |
| Weight | 80 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
