240sq Benchtop Pneumatic Cable Cutter

JCW-C10A

4 versions covering a wide range

Max 240mm² heavy-duty cable

Simple operation, foot pedal

Robust model, low maintenance

Safety cover, safe operation

Air regulator

Inquire Now

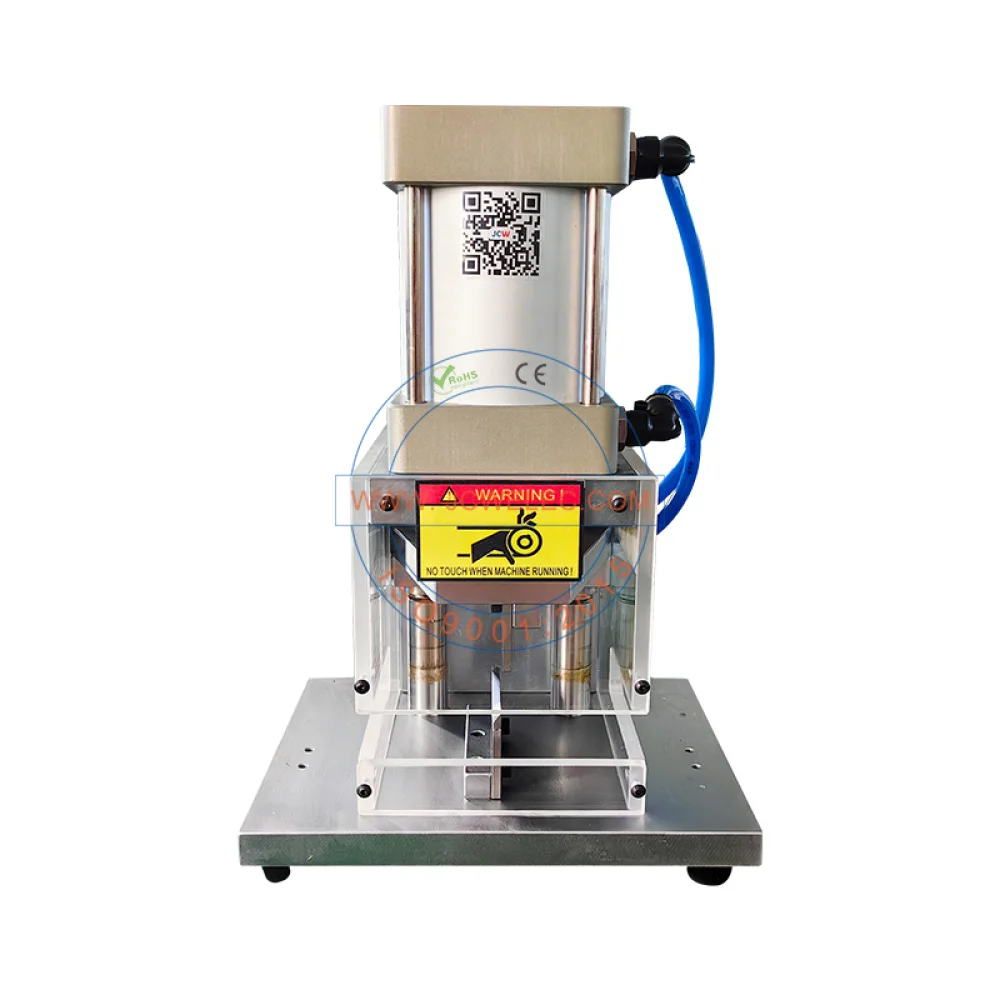

JCW-C10A Pneumatic Cable Cutting Machine

Vertical cutting, 240 mm² cable

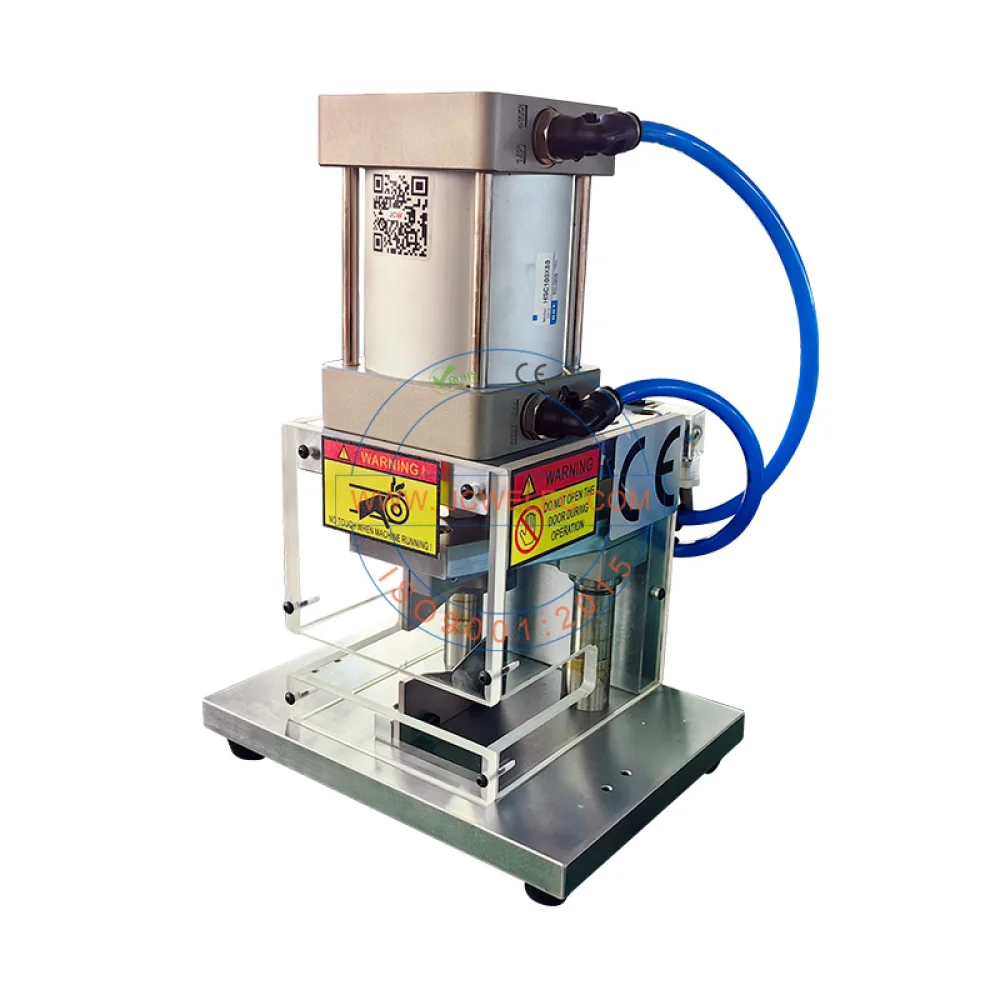

The powerful pneumatic cable cutting machine JCW-C10A is a non-standard cutting machine, specially designed to cut heavy-duty cable up to 240 mm². This cutting machine is activated by a foot pedal. The operator handles the cable with two hands. A transparent safety cover ensures the exact location and safe processing. Space-saving and robust design, low maintenance.

The JCW-C10A pneumatic cutting machine is available in four versions, each equipped with different cylinders to achieve different cutting ranges. Please contact our sales staff or download the datasheet for details.

Model	JCW-C10A Pneumatic Cable Cutting Machine
Function	Vertical cutting, air regulator, adjustable cutter stroke
Cable range	V1: Max 28mm O.D V2: Max 28mm O.D V3: Max 50mm O.D V4: Max 240mm²
Cylinder diameter	V1: 100 mm V2: 100 mm V3: 100x50x50 mm V4: 160 mm
Cylinder stroke	V1: 50 mm V2: 100 mm V3: 50 mm V4: 60 mm

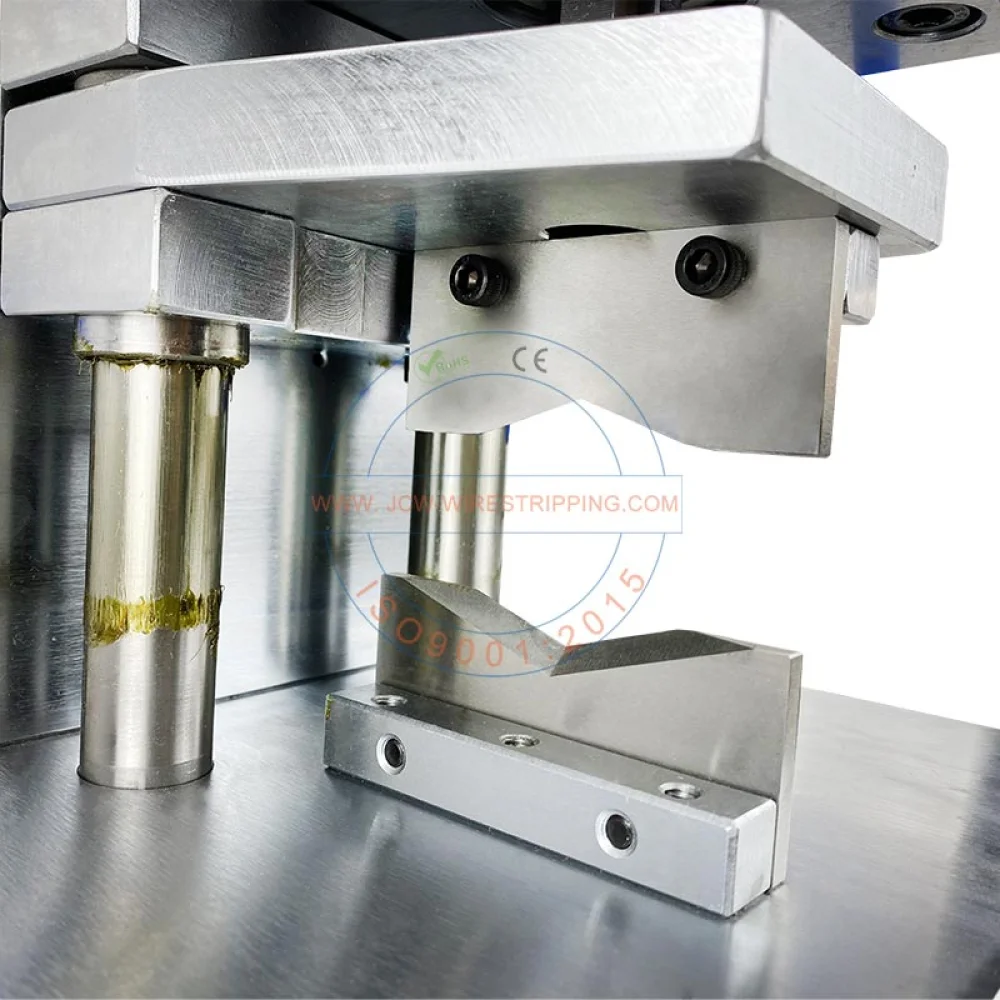

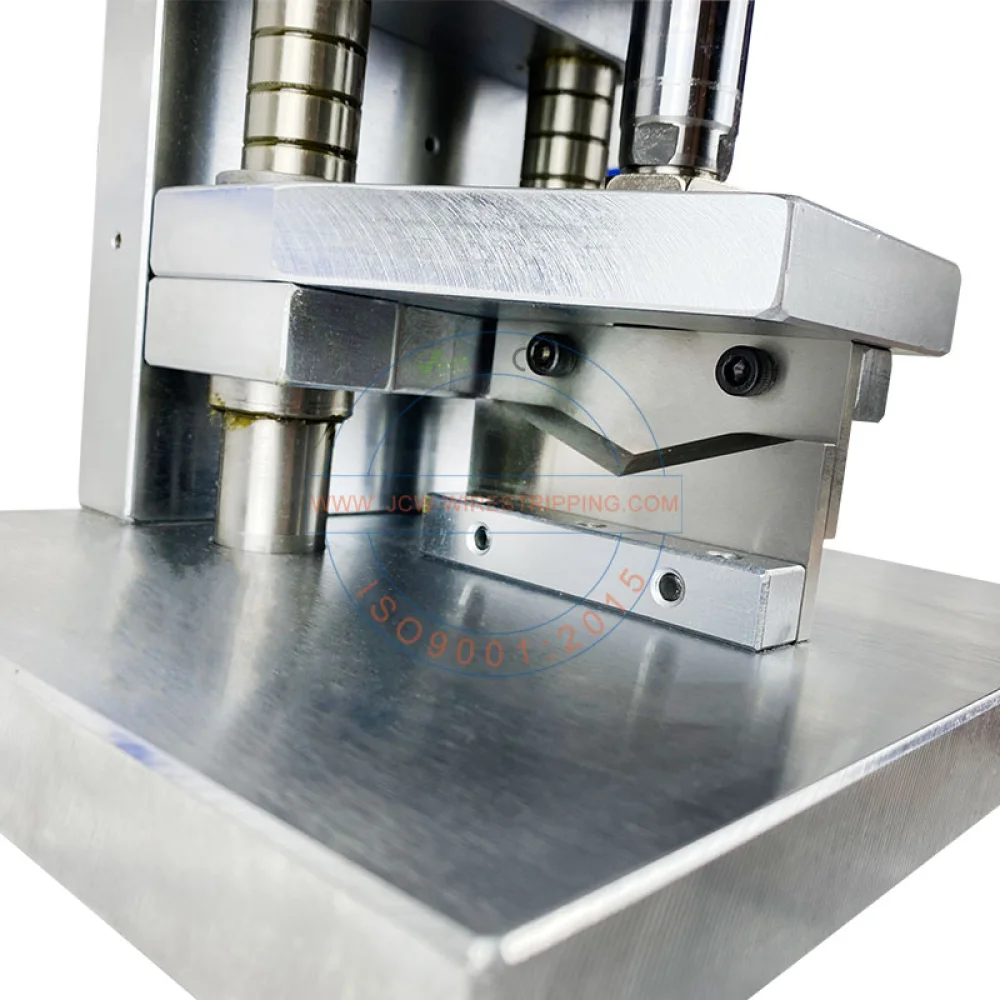

Blade	V-blade [ Flat-blade is optional ]
Air supply	0.5 MPa
Power supply	AC 110 - 220V + 10 %, 50/60 Hz
Dimensions	V1: L 450 x W 300 x H 400 mm V2: L 550 x W 350 x H 450 mm V3: L 700 x W 350 x H 450 mm V4: L 550 x W 350 x H 500 mm
Weight	V1: 30 Kgs V2: 40 Kgs V3: 40 Kgs V4: 50 Kgs
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
