JCW-C02 Tubing / Hook & Loop Tape Cutting Machine

High cost-effective model, versatile cutter


Cold cutting machine

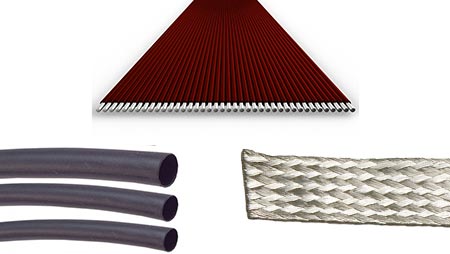

The JCW-C02 cutting machine is a perfect solution in the wire harness industry as well as the textile industry, it can process various materials, including hook & loop tape, plastic tubing, films, bootlaces, plastic zippers, labels, hoses.


The JCW-C02 cut to length machine uses rubber and metal rollers together to feed the material, this protects the material as well as offers precise feeding length. This cutting machine offers precise digital control of cut to length and quantity,  It's ideal to increase efficiency, improve quality, and save on labor costs.


We also supply the cutting machine with a hot cutter blade, and various cutting shapes can be customized to meet customers' requirements. Just contact us, we will offer a full range of cutting solutions.


Easy operation

Each JCW-C02 tubing cutting machine comes with an English keyboard, it can be operated well by anyone with no training. The cutting speed, feeding speed, cutting length, batch pause, total quantity, etc. are all programmable easily.


The blade is made of high-speed steel, high-quality material minimizes wear.


ModelJCW-C02 Electric Cut to Length Machine
Cutting bladeCold
Raw materialFiber, PVC, Teflon, Low halogen, Fiberglass, etc
Cutting width100 mm  [ 200 / 300 / 420 / 550 / 650 / 1000 mm are available ]
Cutting length ( L )0.1 -  5000 mm [ 50000 mm on request ]
Productivity80 - 120 pcs/min
OEMYes
Power supplyAC 110 - 220V + 10 %, 50 / 60 Hz
DimensionsL 410 x W 350 x H 300 mm
Weight22 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
