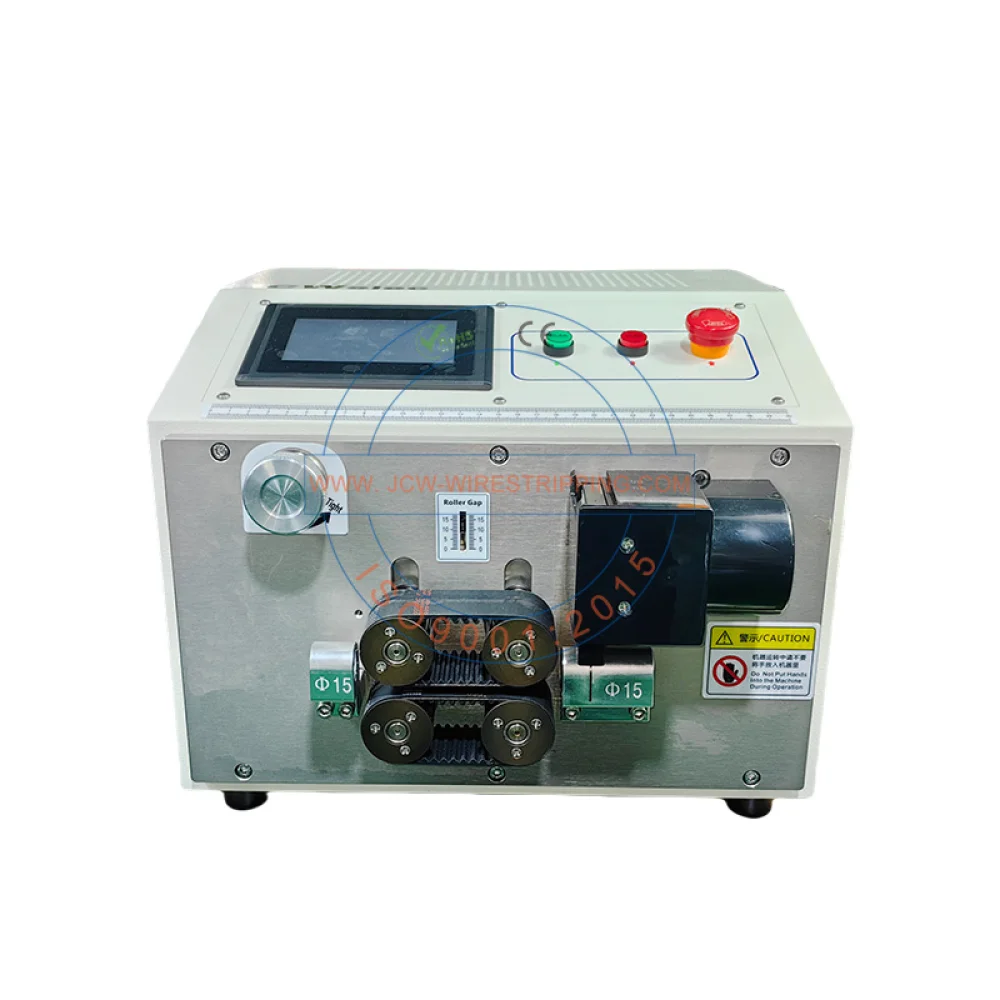

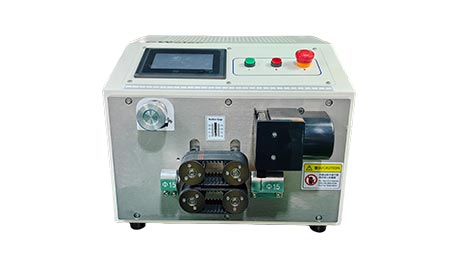

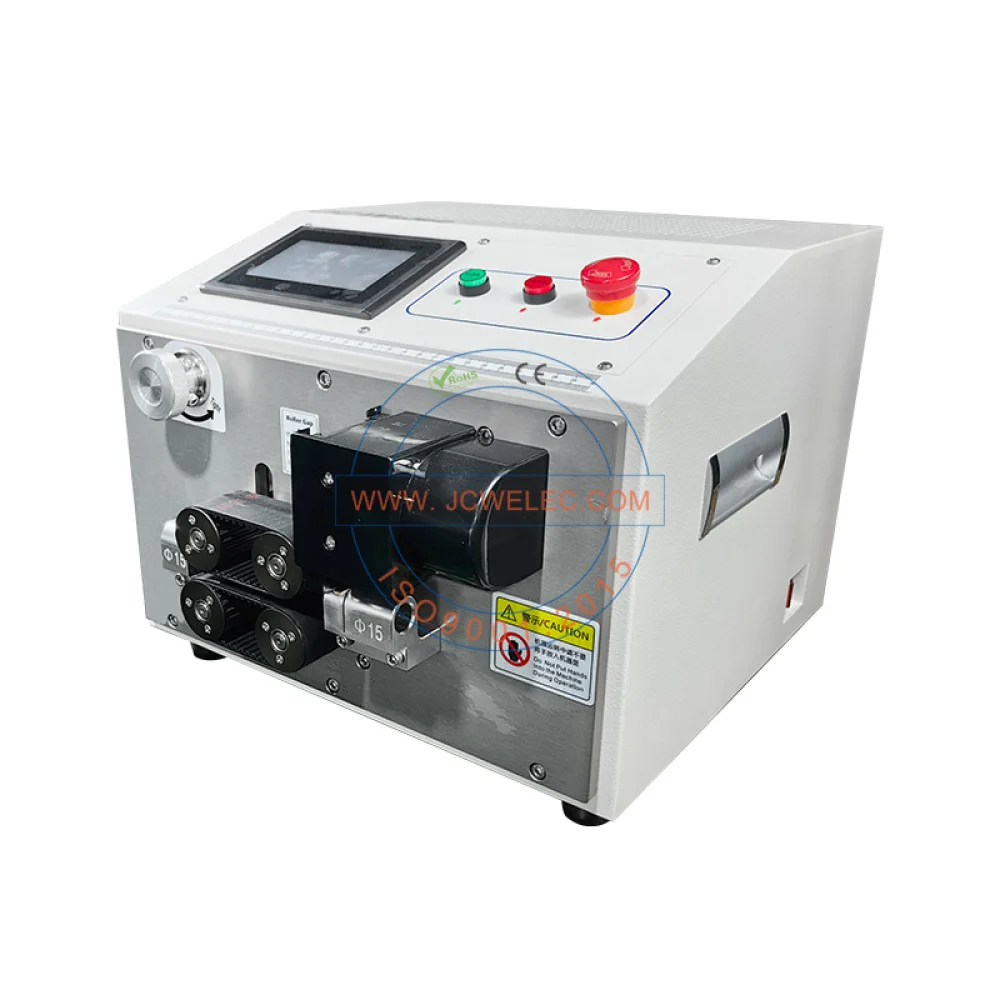

Belt-feed Silicone Sleeve Cutting Machine

JCW-C04 BELT

Versatile cutting machine for cutting corrugated tube, hose, etc

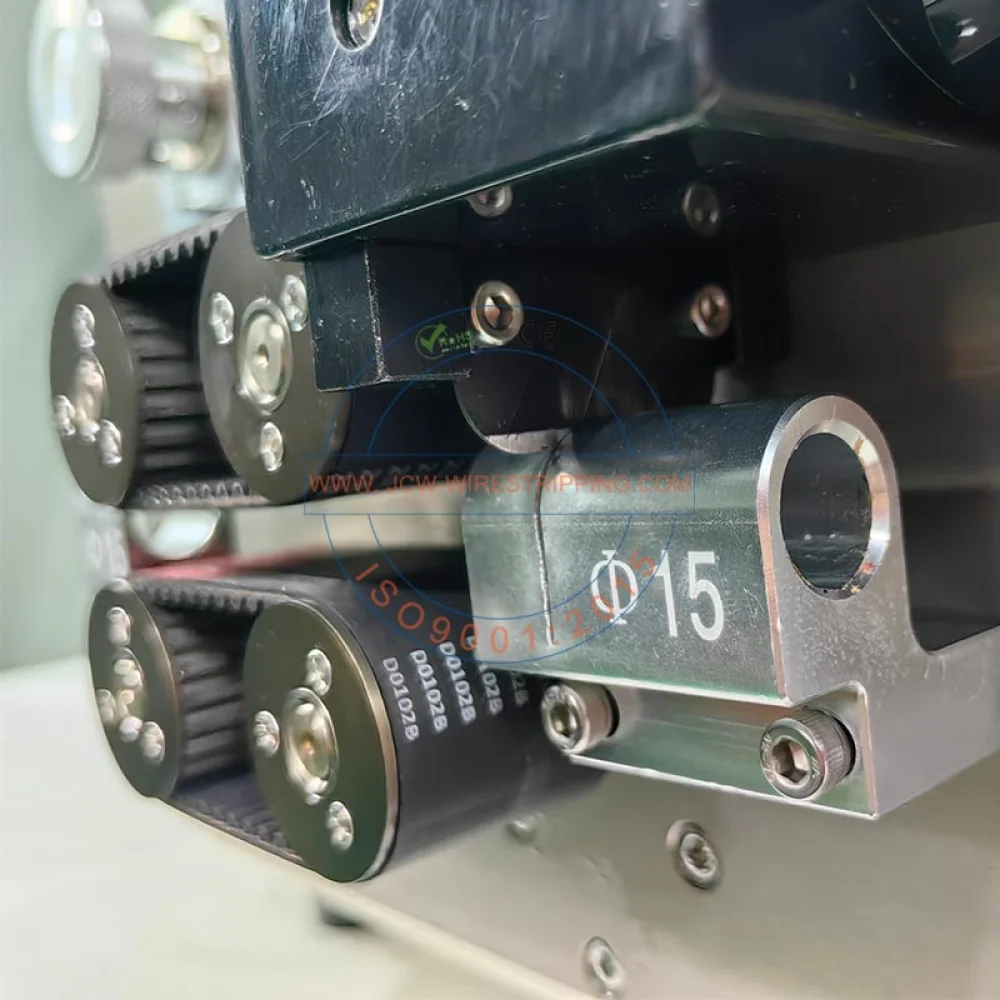

Belt feeding system ensures precise cuttiing length

Unique guide tube ensures vertical cutting

Fully programmable via color touchscreen

Support English and Chinese, other languages are customizable

Various guide tubes come along with machine, max 15mm

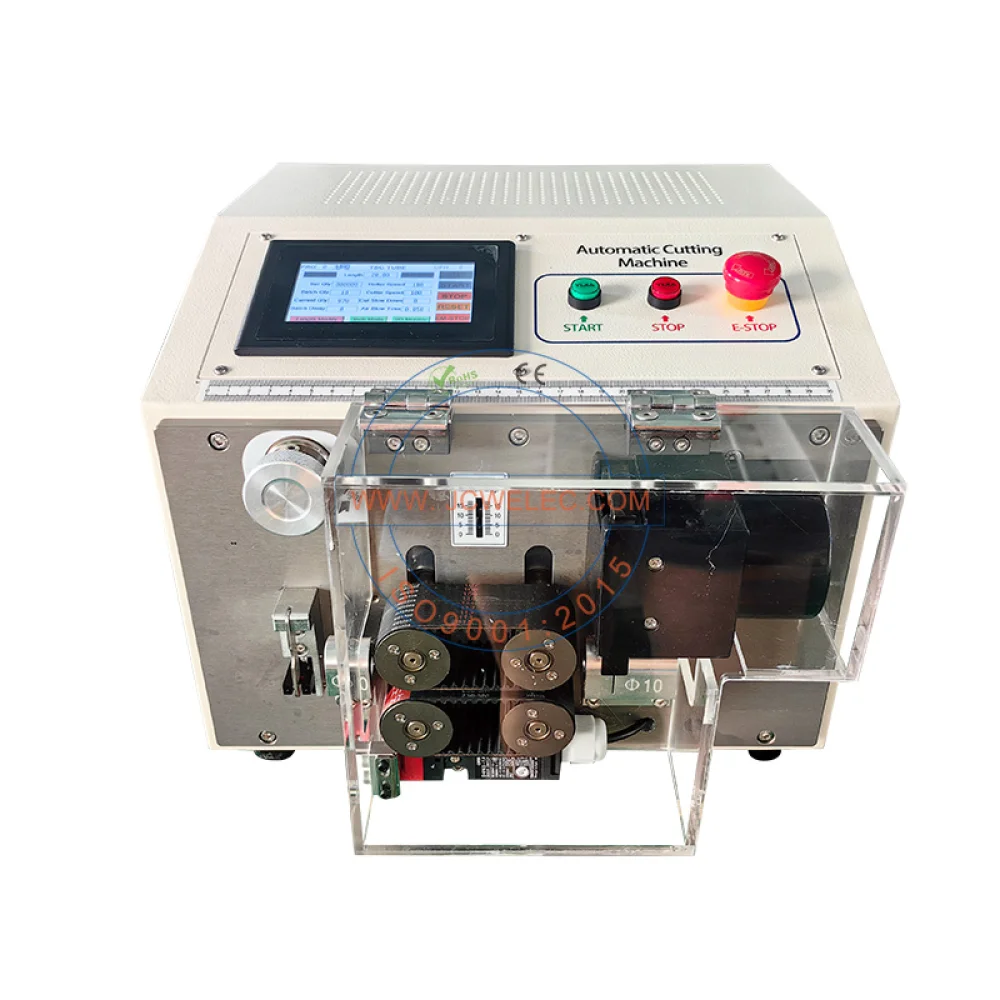

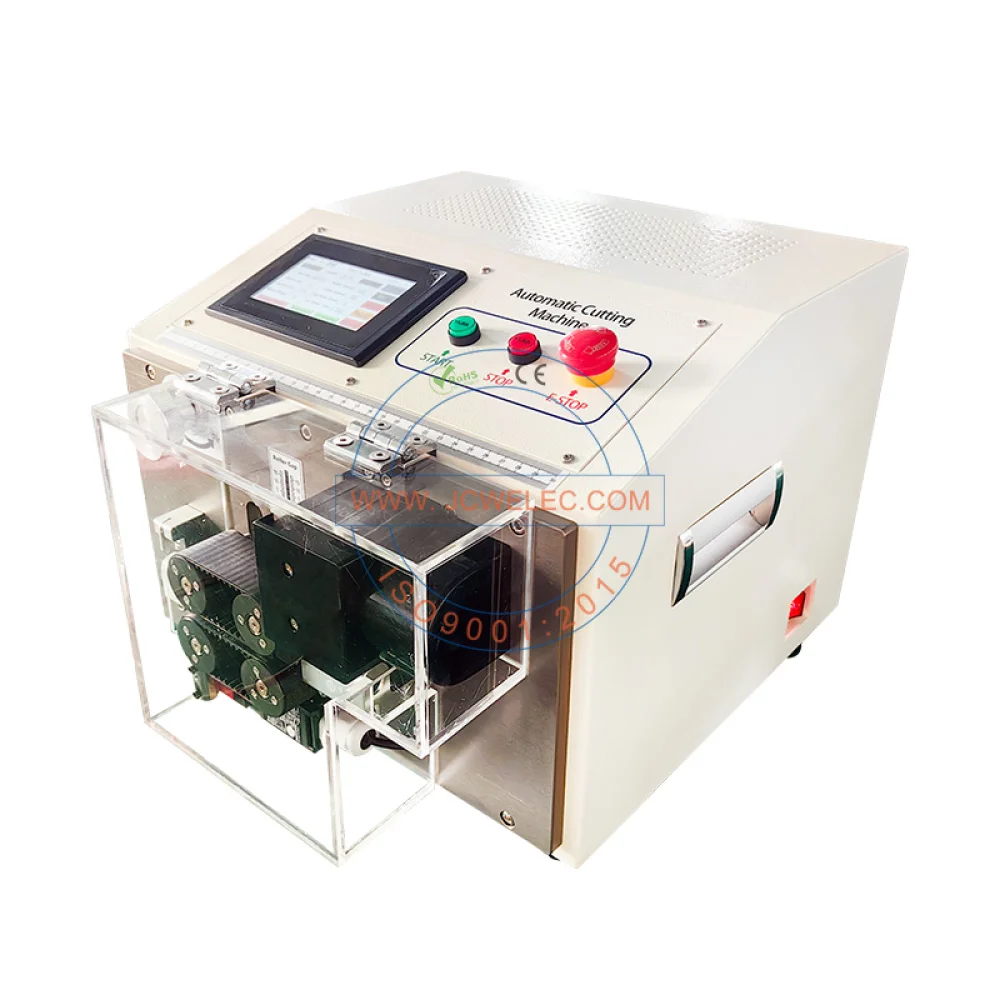

Fully covered safety guard & material sensor on request only

Inquire Now

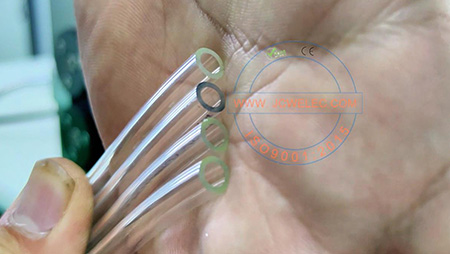

Straight Cut

Angle Cut

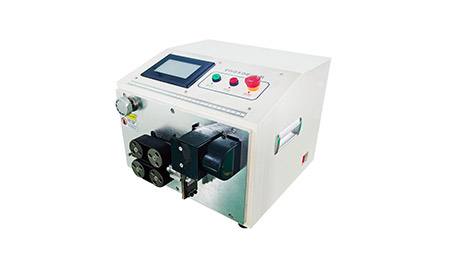

Double-blade Silicone Fiberglass

The JCW-C04 BELT is an updated tube cutting machine based on the JCW-C04B. This versatile cutting machine is designed to feed the tube precisely and cut the tube vertically. High torque stepper motors and high-quality belts ensure excellent cutting capacity for rubber cable, oil hose, air pipe, wire protect tube, etc.

Model	JCW-C04 BELT Belt-feed Cable & Tube & Hose Cutting Machine
Function	Cutting speed, feeding speed, data library, calibrate the cutting length
Raw material	PA, PE, PU, PTFE, rubber, and silicon tubes
Round material diameter	3-15 mm
Blade width	22 mm
Cutting length ( L )	0.1 - 99999 mm
Cutting length increment	0.1 mm
Cutting length tolerance	0.002 x L
Production rate	15000 pcs /h
Data library	100 programs

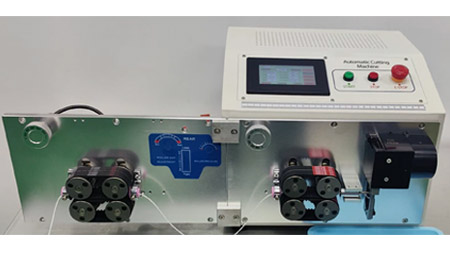

Compatible devices	Tube prefeeder, marker
Optional accessories	Fully-covered safety guard, safety guard sensor, tube lack sensor
OEM	Yes
Rated power	400 W
Power supply	AC 110 - 220V + 10 %, 50 / 60 Hz
Dimensions	L 360 x W 405 x H 295 mm
Weight	25 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
