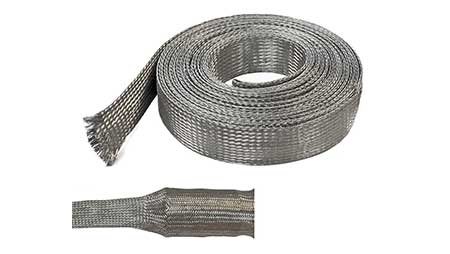

Heavy-duty Copper Braid Cutting Machine

Heavy-duty Copper Braid Cutting Machine

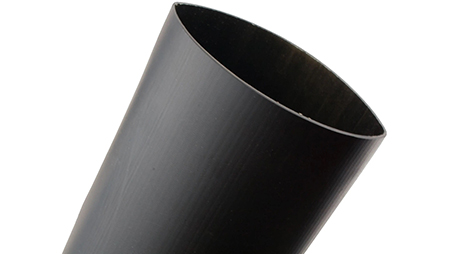

Heavy-duty Heat-Shrinkable Tubing Cutting

Heavy-duty Heat-Shrinkable Tubing Cutting

JCW-C07 Heavy-duty Automatic Cutting Machine

Heavy-duty heat shrink tube, copper braid, φ40mm,  max 70mm cutting width


Ultra cutting force

The JCW-C07 heavy-duty cutting machine uses a powerful cylinder to ensure continuous and straight cutting for heavy-duty heat shrink tubing & copper braid, even steel wire rope belongs to its processing range. A stable 5 to 7 kg compressed air supply is the power source. The stroke of the cutter is 50mm, which allows it to process round material with max φ40mm, the max cutting width achieves 80mm.


The JCW-C07 electric tube cutting machine adopts high-quality HSS blades with special hot treatment, that offers low wear and long service life, the straight cutting surface is very beautiful and the end is ultra neat.


PLC control, safe and careful operation

The JCW-C07 automatic cutting machine combines a PLC control system, high torque step motors, high-quality belts feeding system, and mechanical components, all of that guarantee tight clamping and precise feeding onto the material.


This cutting machine adopts a transparent safety cover, safety sensor. That offers a clear vision of processing and minimizes the danger level.


All of the parameters can be input and changed in seconds, via the 7" color touchscreen. On the standard model, we supply an English interface, which can be changed by following the customer's requirements, OEM is also available.

ModelJCW-C07 Heavy-duty Automatic Cutting Machine
FunctionCopper braid, stranded copper wire, heavy-duty shrinkable tubing, steel wire
Raw material diameter1 - 40 mm [ Customizable ]
Cutting widthMax 80 mm [ Customizable ]
Cutter stroke50 mm
Cutting length ( L )5 - 99999 mm
Cutting length increment0.1 mm
Cutting length tolerance± 0.1 mm [ material with no elasticity ]
Production rate1800 - 3600 pcs /h by different lengths
Data library100 programs
Display7" color touchscreen, English / Chinese  [ other languages on request ]
OEMYes
Air supply0.5 - 0.7 MPa
Power supplyAC 110 - 220V + 10 %, 50 / 60 Hz
DimensionsL 800 x W 600 x H 600 mm
Weight85 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
