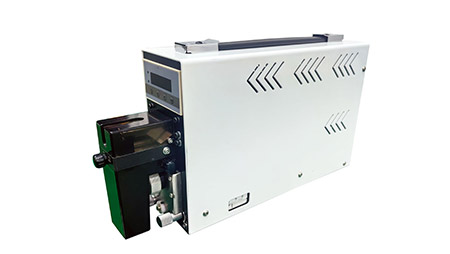

Fully-Electric-Wire-End-Stripper
Model | JCW-S05EN Fully Electric Wire Stripping Machine |
Function | Full stripping, partial stripping, cut diameter, strip position, pull-off length |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Conductor cross-sections | 0.03 - 4 mm² [ AWG 32 - 11 ] |
Wire diameter | 4 mm |
Stripping length | 1 - 20 mm |
Diameter increment | 0.01 mm |
Cycle time | 0.3 S |
OEM | Yes |
Power supply | AC 110 - 220V, 50 / 60 Hz |
Dimensions | L 380 x W 85 x H 188 mm |
Weight | 4.5 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
