0.3 seconds cycle time
Wires up to 4mm² [ AWG 11 ]
Stripping length up to 20 mm
Compact, lightweight, space-saving
Single wire, glass optical fiber
Stranded wire, solid wire
PUR, PVC, Teflon, Tefzel, etc

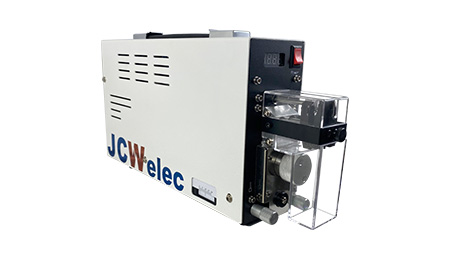

JCW-S05E Electric Wire and Cable Stripping Machine
Mobile wire stripper to replace hand tool
The JCW-S05E electric cable stripping machine is with compact but robust design, an electrical connection is all that needs to operate the JCW-S05E wire stripping machine. This wire stripper is an ideal entry-level model for wire processing. It's the best choice to replace hand tools with increased productivity and improved stripping quality. This wire stripping machine is suitable for both single wire and inner wires of multi-core up to 4mm².
The JCW-S05E wire stripping machine uses a universal V-blade, which is capable to process various cross-sections for PVC, PE, or PP insulation with an outer diameter of up to 4mm.
The machine can perform both full and partial stripping by simple adjustment. The cutting depth, stripping position and pull-off length can be adjusted with three dials easily and precisely.
The JCW-S05E electric wire stripper is activated by the trigger sensor, the wire processing is started once the wire touches the trigger sensor. For small and flexible wires, processing can also be triggered by a foot pedal.
|Model||JCW-S05E Electric Wire and Cable Stripping Machine|
|Function||Full stripping, partial stripping, cut diameter, strip position, pull-off length|
|Raw material||PVC, Teflon, Silicone, Low halogen, Fiberglass, etc|
|Conductor cross-sections||0.03 - 4 mm² [ AWG 32 - 11 ]|
|Wire diameter||4 mm|
|Stripping length||1 - 20 mm|
|Diameter increment||0.01 mm|
|Cycle time||0.3 S|
|Power supply||AC 110 - 220V, 50 / 60 Hz|
|Dimensions||L 380 x W 85 x H 188 mm|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
