Patent Wire Cutting Stripping and Bending Machine JCW-CS10B

Hard wire, 16 mm², no damage to insulation and conductor

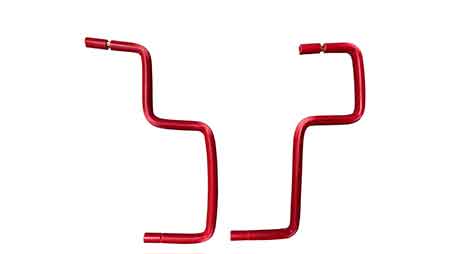

Wire bending is widely used in power distribution cabinets. Good wire bending can save the space of the power distribution cabinet, save the wires, make the wires arranged neatly, meanwhile will not cause any damage to the wires or conductors, and eliminate any hidden dangers.


JCW-CS10B is such an automatic stripping and bending machine, especially used for BV wires below 16mm². All processing parameters, such as cutting length, stripping length, and bending parameters can be input accurately via the 7" color touch screen. 4 rollers offer huge clamp force, guarantee precise feeding.

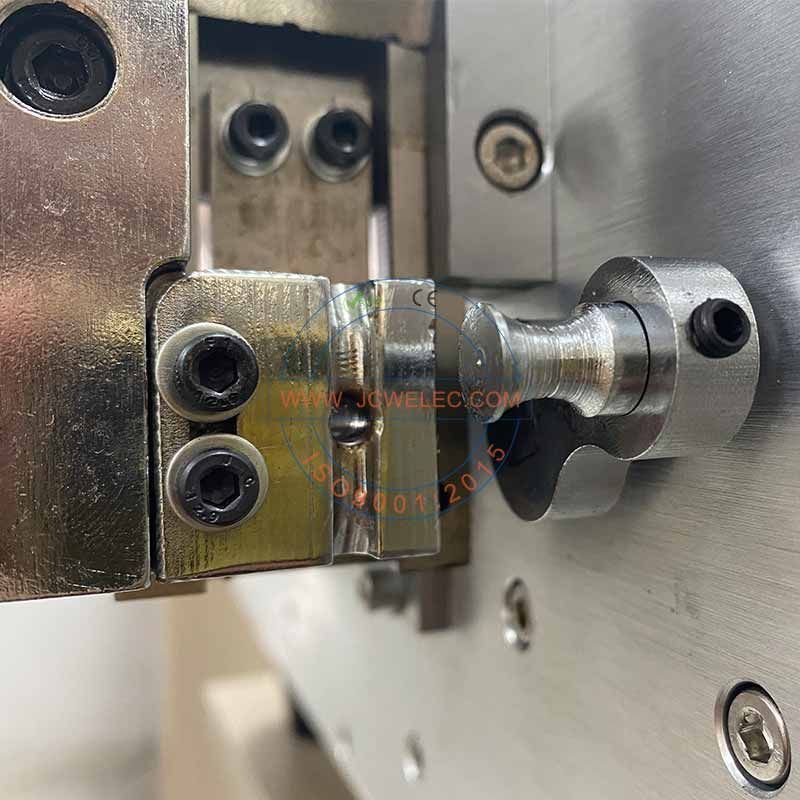

The patent unique bending device provides a rounded bending effect instead of a sharp bending at an absolute angle, ensuring that it will not cause any damage to the insulator and conductor of the wire.


Model

JCW-CS10B Automatic Wire Stripping and Bending Machine

FunctionWire end stripping, Wire bending, Cut depth, Horizontal bending, 30°-90°, Data library
Conductor cross-sections0.5 -  16 mm² [ AWG 20 - 9 ]
Cutting length ( L )
0.1 - 99999 mm
Stripping lengthMax 50 mm
Bending numbers16
Bending degree0 - 150
Data library100 programs
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsL 510 x W 570 x H 450 mm
Weight55 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
