Same performance and functions as S05F
Lower cost, higher price-to-performance ratio
A full range of wire end stripping machines to choose from
JCW-S05F ECO
Same performance and functions as S05F
Lower cost, higher price-to-performance ratio
A full range of wire end stripping machines to choose from
Wire End Processing

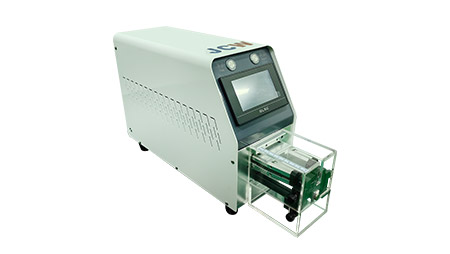

Model | JCW-S05F ECO Intelligent Computer Wire Stripping Machine |
Function | Wire end cutting & stripping, full stripping, partial stripping, cut diameter, double / multi-layer strip |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Conductor cross-sections | 0.04 - 16 mm² [ AWG 30 - 4 ] |
Stripping length | 1 - 40 mm |
Strip increment | 0.05 mm |
Production rate | 1800 - 2000 pcs/h |
Multi-step strip | 5 |
Power supply | AC 110 - 220V, 50 / 60 Hz |
Dimensions | L 520 x W 170 x H 300 mm |
Weight | 20 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
