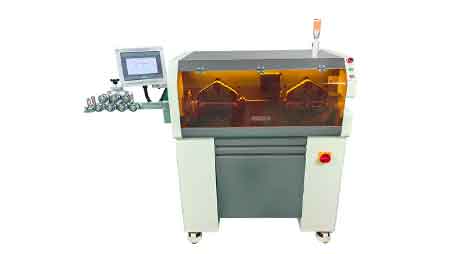

Welding Cable Cutting Stripping Machine [ 120mm² ]

JCW-CS19B

Servo motorized cutter head

High-quality belt, high-precision cable feeding

Good quality high-speed steel made blades

Fully covered safety guard with interlock sensor

Compatible with printer, winding system, etc

150 sqmm version on request only

Inquire Now

HV Cable Cut Strip Machine

Model	JCW-CS19B Welding Cable Cutting Stripping Machine [ 120mm² ]
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	10 - 120 mm² [ 150mm² on request ]
Cable diameter	8 - 24 mm
Guide tube	8 sets
Cutting length ( L )	1 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 1 - 200 mm
Stripping length	Rear ( left ) side: 1 - 200 mm
Feeding system	20 rollers, belt-driven
Blade material	High-speed steel
Blade type	V-blade, radius blade
Production rate	700-1000 pcs/h [ depends on cutting length ]
Data library	100 programs
OEM	Yes
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Printer, coiler, wire pre-feeder, robot arm, conveyor belt
Rated power	1800 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 980 x W 580 x H 1200 mm
Weight	280 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
