JCW-CS18

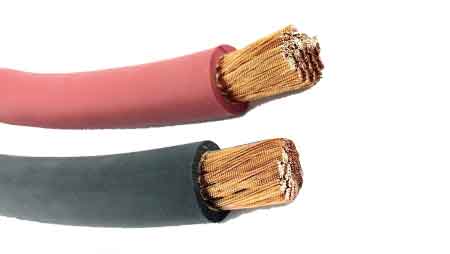

Cut and strip max 20 mm O.D. and 70 mm² battery cables
8 rollers feed system, powerful stripping, precise feeding length
4.3" color touch screen, user-friendly interface
Transparent and robust safety cover, safety sensor
Automatic cutting length calibration ensures precision
JCW-CS18 Automatic Big Cable Cutting and Stripping Machine
Maximize the productivity of 70mm² power cable processing
Excellent capability
The JCW-CS18 cable cutting and stripping machine is designed for processing big cables up to 70sqmm. Both stranded wire and multicore cable belong to the processing range. Powerful cutter head, high torque stepper motor, and 8 rollers feeding system allow the JCW-CS18 cut and strip machine to process big battery cables easily and precisely.
This fully programmable cable stripping machine can save all of the parameters such as wire cutting length, stripping length, cutting speed, feeding speed, wire diameter, etc.
Build your automated product line
- Cable pre-feeding machine, load range from 15 to 1500 KG
- Robot arm controlled by CS18, simple setting
- Conveyor belt, 1 meter to 12 meters
| Model | JCW-CS18 Automatic 70SQ Big Cable Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Safety door sensor |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 4 - 70 mm² |
| Cable diameter | Max 20 mm |
| Cutting length ( L ) | 1 - 99999.9 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Leading ( left ) side: 1 - 270 mm |
| Trailing ( right ) side: 1 - 140 mm | |
| Feeding system | 8 rollers |
| Production rate | 1500 pcs/h [ depends on cutting length ] |
| Data library | 100 programs |
| OEM | Yes |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Wire pre feeder, robot arm, conveyor belt |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 620 x W 540 x H 410 mm |
| Weight | 85 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
