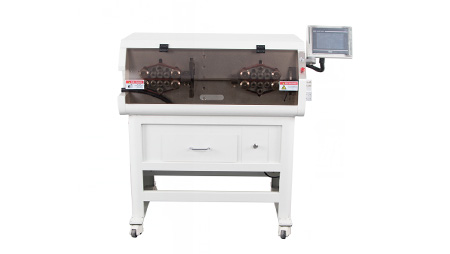

150mm² Servo Motorized HV Cable Cutting Stripping Machine

JCW-CS20

Servo motorized cutter head, neat cutting

Cut and strip max 30 mm O.D. and 10 -150 mm² battery cables

High-quality belt feed system, zero damage to the cable

Powerful clamp force, precise feeding length

7" color touch screen, multi-language interface

Transparent and robust safety cover, safety sensor

Automatic cutting length calibration ensures precision

Cable run-out sensor gives machine stop signal

Inquire Now

Max 150sq mm Cable Cutter Stripper

150mm² Servo Motorized HV Cable Cutting Stripping Machine

JCW-CS20 is a light servo-powered high-voltage cable cutting and stripping machine, designed to process single-core cables up to 150 mm².

It delivers steady and accurate cutting stripping quality for battery cables and high-voltage cables used in new energy harness workshops.

This light version retains good expandability and can work in tandem with a heavy-duty pay-off machine and stacker to form an automated production line. It is well suited for long cable processing tasks, with flexible installation and smaller footprint compared with ultra-heavy models.

It adopts a 7-inch color touch screen control panel. All processing recipes can be named to quickly switch between different cable specifications.

The standard interface supports Chinese and English, and extra language packs are available for overseas customers. Reserved signal interfaces support inline marking printers.

Model	JCW-CS20 Servo Motorized HV Cable Cutting Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	10 - 150 mm²
Cable diameter	Max 30 mm
Cutting length ( L )	1 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 1 - 800 mm
Stripping length	Rear ( left ) side: 1 - 400 mm
Feeding system	32 rollers, belt-driven
Production rate	1800 pcs/h [ depends on cutting length ]
Data library	100 programs
Rated power	2500 W
OEM	Yes
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable splitter, wire pre feeder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1150 x W750 x H 1200 mm
Weight	200 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
