150 mm² Electric Car Charging Cable Crimping Machine

JCW-30TS

Servo motorized heavy-duty crimping press

Apply to high voltage cable, power cable

Side-open applicator for 90-degree bend copper lug

Fully enclosed applicator for straight barrel copper cable lug

Set desired crimping height via HMI

High precision crimping

Safe operation

Inquire Now

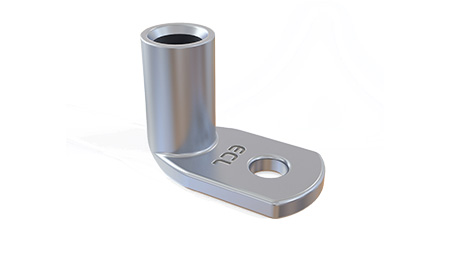

90 Degree Angled Copper Cable Lug

Straight Barrel Copper Cable Lug

The JCW-30TS is a servo-driven, all-electric hexagonal crimping machine. It can be equipped with two types of hexagonal crimping dies: closed and side-open. This machine is designed for crimping heavy duty copper or aluminum lugs used in power industry, battery industry, etc.

The side-open hexagonal applicator is suitable for 90-degree angled copper lugs.

All parameters, such as crimping height, holding time, etc., can be programmed precisely and easily via the touch screen.

Model	JCW-30TS Electric Car Charging Cable Crimping Machine
Function	Servo motor control, Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment on-screen, Data library, Freestanding model, Easy to move
Cable range	16 - 150 mm²
Crimping force	300 KN
Crimping length	12 mm [ 16 / 20mm on request ]
Rated power	4000 W
Program saving	12
Press stroke	40mm
Locate stroke	50mm
Activation	Foot pedal
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 800 x W 650 x H 1300 mm
Weight	350 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
