JCW-WP10 Heavy Duty Cable Spool Despooler Wire Prefeeding System

Customizable model for big wire spools


Heavy cable handling system

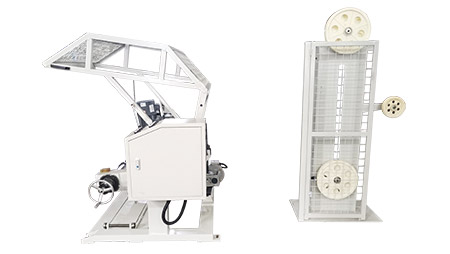

The JCW-WP10 cable feeding machine is made up of 2 stations, a motorized feeding unit, and a large stroke cable stacking system with a robust safety cover. The spool dereeler is equipped with a quick lock cam mechanism and motorized reel lifting system, the cable loading is very easy and the quick changeover is very safe.


The JCW-WP10 cable prefeeding machine is customizable for various cable spools of different diameters and weights. It's the perfect solution for processing big conductor cross-section cables. This powerful cable unwinder can stock long cables and is featured high feeding speed due to powerful motors, so as to cooperate with heavy-duty cable processing equipment.


When ordering wire prefeeding machines, we recommend customers submit drum dimensions and weight, cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.

Model

JCW-WP10 Heavy Duty Cable Spool Despooler Wire Prefeeding System

Wire diameter3 - 20 mm   [ Customizable ]
Wire reel diameter630 - 1000 mm   [ Customizable ]
Wire reel width400 - 750 mm   [ Customizable ]
Wire reel weight1500 KG   [ Customizable ]
Feeding speed250 m / min
Rated power4000 W   [ Customizable ]
Power supply3Phases, AC 380V, 50 Hz
Weight800 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
