20tons Hexagonal Profile Copper Eyelet Crimping Machine

JCW-20TH

Heavy-Duty Hexagonal Lug Crimper

20 Tons Stable Crimping Force

Touch Screen Operation

Adjustable Crimping Height

Crimp Recipe Storage Function

Max Lug Size: 150sqmm Copper Lug

For Power & New Energy Harness

Inquire Now

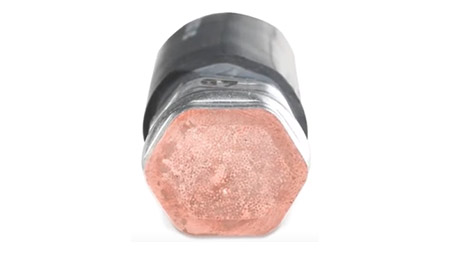

Cable Lug Hexagonal Crimping

JCW-20TH 20tons Hexagonal Profile Copper Eyelet Crimping Machine

The JCW-20TH pneumatic-hydraulic crimping machine is our heavy-duty bench crimper designed for large uninsulated copper cable lugs up to 150 sqmm. Equipped with an intuitive touch screen control panel, operators can easily set and monitor crimp parameters on the interface.

It supports adjustable crimping height to match different terminal dies and workpiece requirements, bringing great flexibility for various harness jobs. Multiple crimp recipes can be saved and stored inside the system. You can quickly recall preset programs for repeated production batches, greatly improving workshop efficiency and keeping crimp results consistent.

JCW-20TH forms standard hexagonal crimp profiles with stable 20-ton output force, delivering reliable, repeatable crimp quality for high-current connections. Widely applied in power distribution cabinets, energy storage systems, EV battery packs and other new energy wire harness assembly scenarios. Built rugged for long-cycle industrial workshop use.

Model	JCW-20TH 20tons Hexagonal Profile Copper Eyelet Crimping Machine
Function	Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment via HMI, Data library, 90° degree lug
Capacity	16 - 150 mm²
Crimping force	200 KN
Crimping length	16 mm [ other lengths on request ]
Crimp height accuracy	0.03 mm
OEM	Yes
Activation	Foot pedal / HMI
Rated power	100 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.8 MPa
Dimensions	L 400 x W 350 x H 930 mm
Weight	110 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
