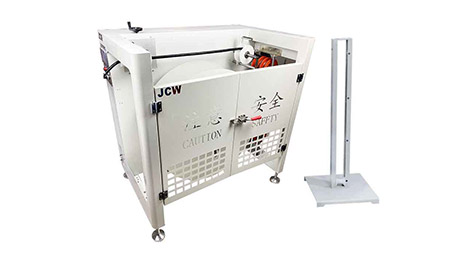

JCW-WP14 High-precision Motorized Corrugated Tube Prefeeder System


Specialist corrugated tube dereeler & prefeeder

The JCW-WP14 tube prefeeding machine is specially designed for corrugated tube prefeeding. The flexible corrugated tube was difficult to be handled, on traditional machines, the corrugated tube is easily deformed during transportation and changes the length measurement of the tube cutting machine.


The electrical JCW-WP14 tubing feeding machine is equipped with moveable pulleys which respond to the typical intermittent starting and stopping actions associated with automatic tube cut machines. The active feeding rollers prefeed the tube into butter zone, which provides constant tension to the tubing processing machines, the deform is avoided and the cutting precision is always stable.


This active corrugated tube dereeler adopts PLC and control touchscreen, the prefeeding length and speed, the rotate directions are all settable in seconds.


When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.

Model

JCW-WP14 Motorized Corrugated Tube Prefeeder System

Tube roll O.D.max 800 mm
Tube roll weight30 KG
Rated power900 W
Power supplyAC 110 - 220V, 50 / 60 Hz
DimensionsL 1130 x W 760 x H 1100 mm
Weight185 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
