Process cable, copper braid, etc
Servo motor controlled cutter head
Cable range up to 150sqmm
Customizable to be full servo motors
Minimum cutting length 30MM
JCW-C150
Process cable, copper braid, etc
Servo motor controlled cutter head
Cable range up to 150sqmm
Customizable to be full servo motors
Minimum cutting length 30MM

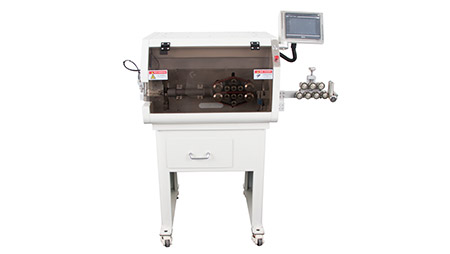

Cable Cutting Machine
| Model | JCW-C150 Cable Cutting Machine |
| Function | Cable measure, cut into length, cable & copper braid, speed & length adjustment |
| Raw material | PVC, Teflon, Low halogen, Fiberglass, etc |
| Cutting diameter | Max 30mm |
| Conductor cross-section | Max 150mm² |
| Cutting length ( L ) | 30 - 999999 mm |
| Front end stripping | Max 800mm |
| OEM | Yes |
| Rated power | 1600 W |
| Productivity | 1000 pcs / h [ Varies with cable diameter ] |
| Compatible accessories | Cable prefeeder, robot arm, cable stacker |
| Power supply | AC 110 - 220V + 10 %, 50/60 Hz |
| Dimensions | L 900 x W 700 x H 1250 mm |
| Weight | 110 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
