JCW-CS03T INK
Wire cutting and stripping machine combines inkjet printer
Built-in printing program suitable for printers of various brands
4.3" color touchscreen simplifies programming
Single wire 0.03 mm² to 6 mm² [ AWG32 - 10 ]
Automatic cutting length calibration ensures precision
Wire run-out sensor gives machine stop signal
Inkjet Printing Machine & Wire Cutting Stripping Machine

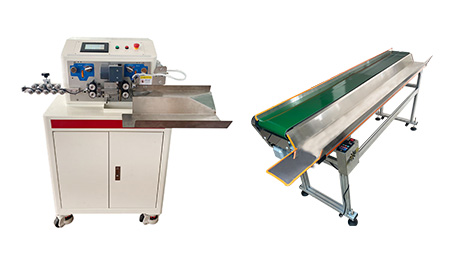

Automatic Wire Cutting Stripping Stacking Line
Automatic Wire Cutting Stripping and Inkjet Printing Machine
JCW-CS03T INK integrates wire cutting, stripping and inkjet marking into one unit.
It is fitted with a communication interface that enables connection and synchronization with inkjet printers from nearly any manufacturer, bringing great flexibility to your marking setup.
This machine is mobile and easy to reposition across workshop stations. A purpose-built inkjet fixture comes as standard.

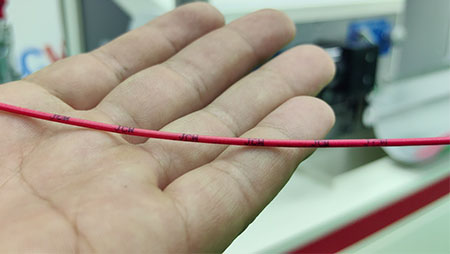

Suitable for harness batches requiring variable text, serial numbers or identification codes printed directly on wire insulation, it removes separate offline marking processes and streamlines your production line.
Other machines within the CS series can also be configured with the printer communication program.
| Model | JCW-CS03T Automatic Wire Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Zip-cord, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Flat cable slitting, Wire lack sensor, Length correction, Thermal transfer printer |
| Conductor cross-sections | 0.03 - 6 mm² |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: 50 mm [ Full stripping ] |
| Rear ( left ) side: 30 mm [ Full stripping ] | |
| Middle strip | 13 sections |
| Production rate | 4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ] |
| Data library | 100 programs |
| Zip-cord | Optional |
| Flat multicore cable | Inner core stripping ( optional ) |
| Round multicore cable | Outer jacket stripping ( optional ) |
| Display | 4.3" color touchscreen, English / Chinese [other languages on request] |
| Compatible peripherals | Cable splitter, wire prefeeder, robot arm, conveyor belt |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 700 x W 680 x H 1050 mm |
| Wire straightener: 250mm | |
| Weight | 75 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
