JCW-CST06 Fully Automatic Wire Stripping Crimping and Tinning Machine
High output, 5 wires, fully servo motorized
Feature of the machine

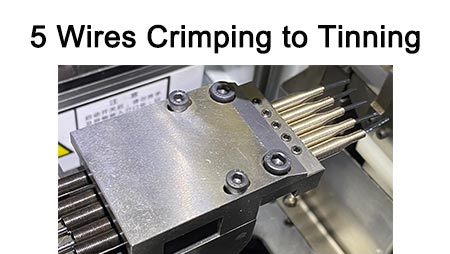

The JCW-CST06 is a highly efficient automatic 5 wires crimping and soldering machine, serves various applications: wire cutting and stripping, terminal crimping, wire twisting, fluxing and tinning. Compared with single wire machines, the JCW-CST06's processing capacity is expanded to 6600 pieces per hour. The standard model offers 850mm cutting length, 1200mm-1500mm-1800mm are all optional. Tinning can be turned off if needs only wire stripping and terminal crimping.
The JCW-CST06 is designed for meeting high output requirements on terminal crimping and wire tinning. Crimp applicator changeover is simple and fast, both vertical and horizontal types are suitable. The smoke collect device ensures a clean and safe working environment.
High-quality processing and simple operations
The JCW-CST06 integrates high-quality components: 5 sets of MITSUBISHI servo motors, THK/TBI guide, FESTO valve, highly rigid transmission structure, high-speed control system. A super user-friendly interface and 7" touch screen interface offer accurate input and clear vision. A motorized digital wire twisting monitor brings perfect wire tinning. Vivid detectors ensure high-quality production: wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.
Various peripherals and options
- Crimping force monitoring ( CFM )
- Short mode allows 8mm length with crimping and tinning
- 1200mm / 1500mm / 1800mm cutting length
- Wire prefeeder for keeping proper wire tension
- Conveyor belt for stacking finished wire
- Customize HMI, language & logo
