JCW-CS08T
Freestanding floor model
Scrap jacket collector keeps clean workshop
High performance on processing multicore cable
High-speed up to 1300 pcs/h with stripping double ends
Round multi-conductor cable up to 6mm OD
Applicable to thermal transfer printer
Automated length calibration
Fully programmable model
Cable run-out sensor
Free-standing Version
Automatic 6mm Multi-conductor Cable Cut & Strip Machine JCW-CS08
Easy to be moved, can work at anywhere of the workshop

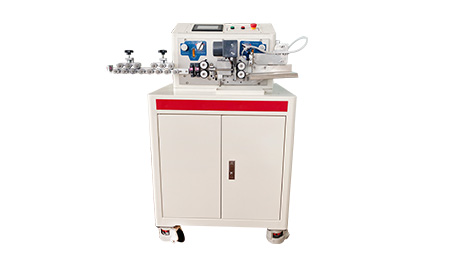

JCW-CS08T is the freestanding upgraded variant of the CS08 round sheath cable stripping machine. It comes with an integrated, dedicated movable work cabinet as standard configuration.
The cabinet provides stable mounting base for the main unit and enables flexible relocation inside the workshop.
This machine is engineered specially for round sheathed cables, most widely used for multi-core power cords.
It handles cables with maximum outer diameter 6 mm, including common 2-core and 3-core power cables. Inherited from CS08, it benefits from multiple generations of iteration, mature mechanical structure and consistent stable quality.
The freestanding layout brings huge advantage for automation integration.
It can be easily combined with robotic arms, belt conveyors and other peripheral equipment to build a fully automated cable processing line, without extra custom support frames.
It adopts color touch screen control system, standard with Chinese and English bilingual operation interface. Extra language options can be added upon request.
Up to 100 sets of processing programs can be stored, so operators can quickly recall preset cutting and stripping parameters for different power cable specifications.
The JCW-CS08T supports connection with heat transfer printers, inkjet marking machines and laser marking devices for synchronous cable marking.
Perfect for harness factories that need flexible layout and automated workflow for multi-conductor sheathed cable production.
| Model | JCW-CS08T Automatic Multi-core Cable Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiber glass, etc |
| Cable size | 6 mm O.D. |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Single wire | YES |
| Multi-core cable | Round |
| Outer jacket stripping length | Leading ( right ) side: 250 mm [ partial stripping ] |
| Trailing ( left ) side: 100 mm [ partial stripping ] | |
| Inner core stripping length | 30 mm at dual-ends |
| Middle strip | 13 sections |
| Production rate | 1300 pcs/h by 100mm wire length [ multi-layer stripping ] |
| Data library | 100 programs |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable unwinder, robot arm, conveyor belt |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 460 x W 470 x H 950 mm |
| Wire straightener: 350mm | |
| Weight | 78 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
