JCW-2TD-END Electronic Rear-feed Wire Stripping and Crimping Machine

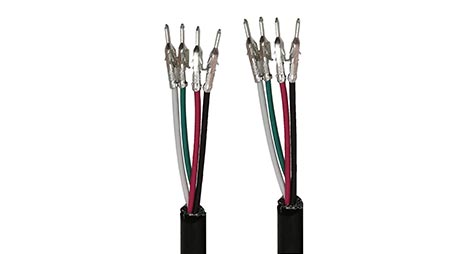

Stripping before crimping, precisely position wire and crimp terminal onto the wire


High precision for various end-feed terminals

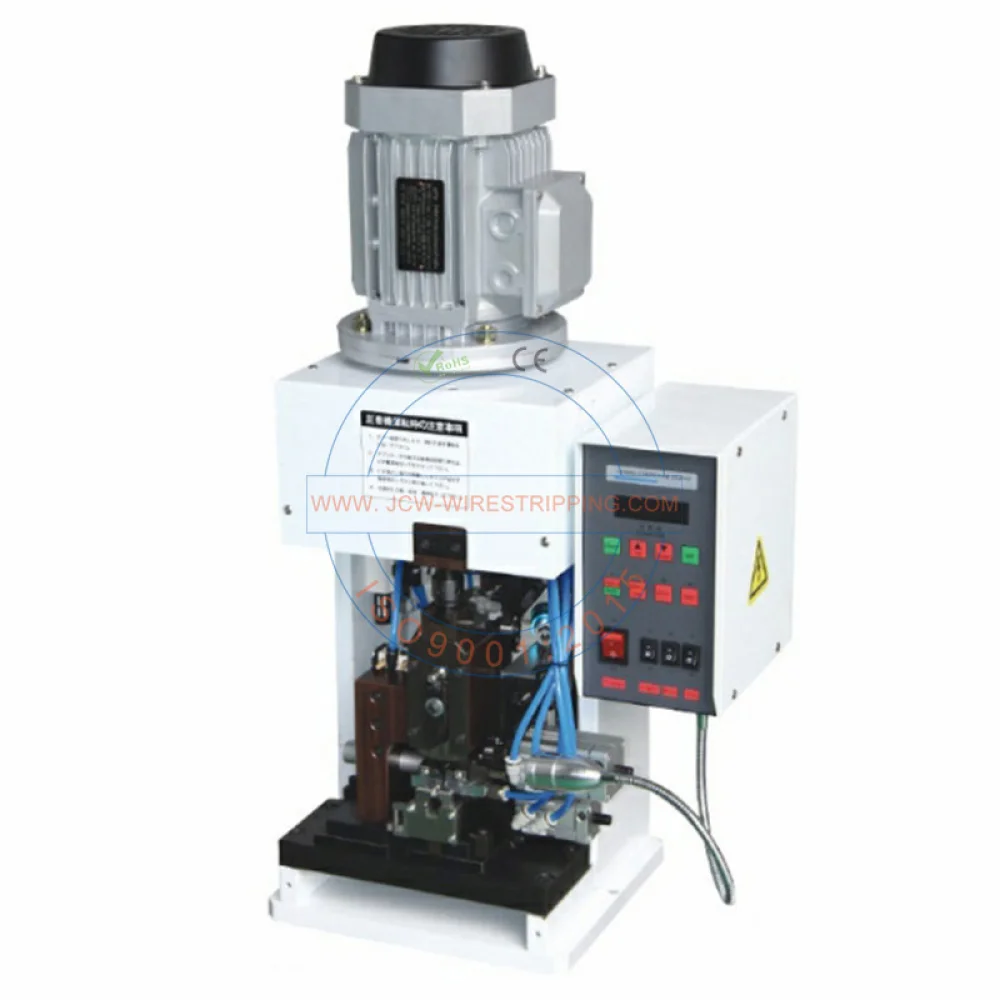

The JCW-2TD-END wire stripping and crimping machine is designed to process the rear-feed terminal in a roll, it's capable of stripping the wire and crimping terminal in one work step. The wire gripper holds the wire tightly and positions it above the terminal precisely, the user does not need to move the wire so to guarantee high precision. Insulation cutting accuracy and wire position accuracy are 0.05 - 1 mm.

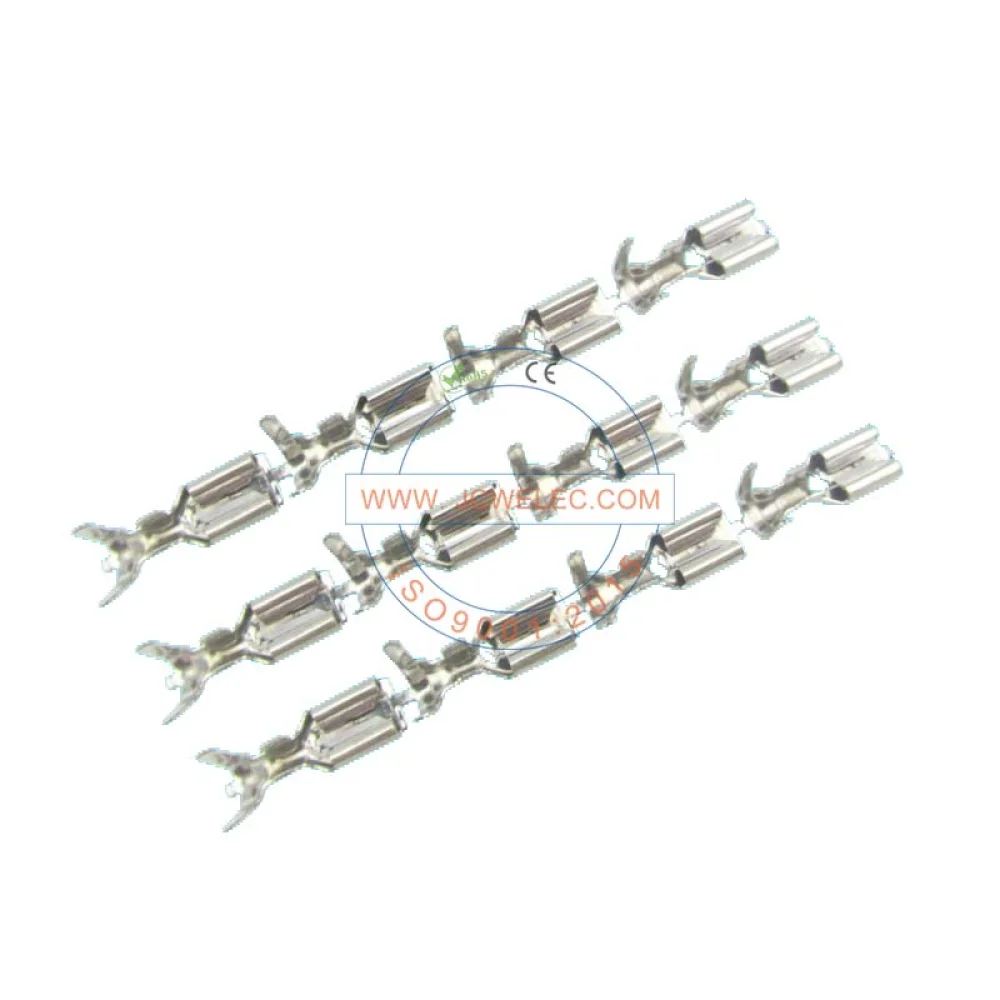

The JCW-2TD-END stripping and crimping machine applies to various end-feed terminals, such as shark teeth connector, 187, 250, O ring and flag terminals, etc.


Compact and reliable

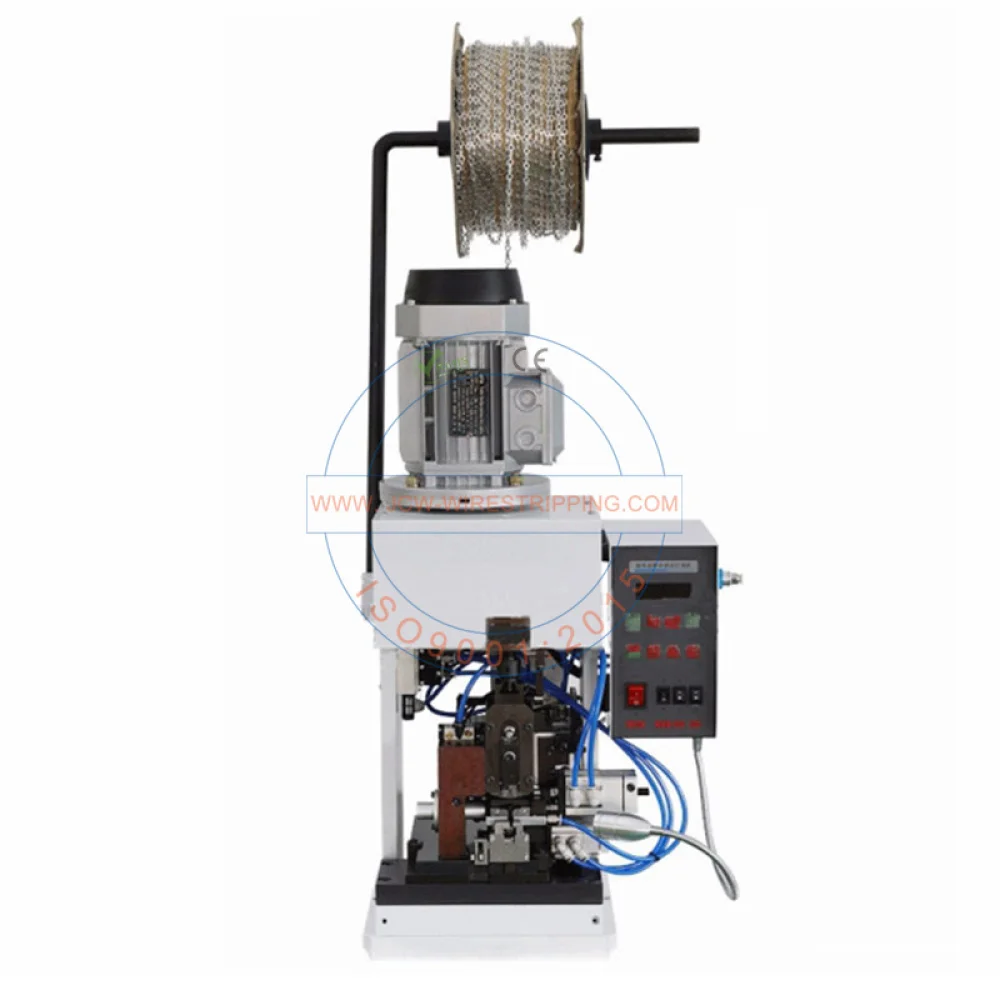

The JCW-2TD-END wire stripping and crimping machine only requires a similar space as a regular semi-auto terminal crimping machine. It featured a really compact wire gripper in order to make it more approachable to the front working area.


The robust design of the whole machine and crimp applicator guarantee long service life and reliable performance. The machine speed is adjustable to suit the proficiency of the operator.


The JCW-2TD-END stripping and crimping machine can be equipped with a crimp force monitor. This stripping and crimping machine is equipped with a scrap vacuum system and lighting of the working area.

Model

JCW-2TD-END Automatic Wire Stripping and Crimping Machine

FunctionSingle wire, Multiconductor cable, Wire stripping, Terminal crimping, Rear feed terminal
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force3 tons
Conductor cross-sections0.03 -  2 mm² [ AWG 32 - 14 ] [ Customizable ]
Stripping length1 - 8 mm
Cutting accuracy0.05 - 1 mm
Position accuracy0.05 - 1 mm
Stroke50 mm
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.5 - 0.6 MPa ( clean and dry air )
DimensionsL 450 x W 500 x H 1000 mm
Weight100 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
