Pneumatic crimping machine
13.5KN crimping force
4 sets of the crimp die sets
Dozens of die sets for selection
Fast crimp die sets changeover
35 mm² bootlace ferrule
10 mm² tubular terminal

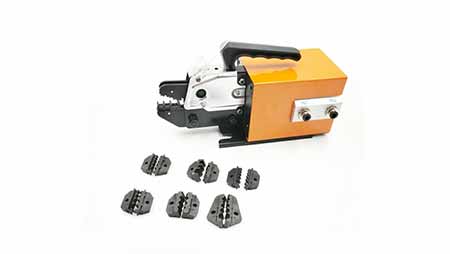

JCW-320 Pneumatic Bench Top Terminal Crimping Machine
13.5 KN crimping force, fast change crimp die sets
JCW-320 Series Portable Bench-top Terminal Crimping Machine
The JCW-320 series terminal crimping machines now have over 10 electric and pneumatic models. We are continuously improving existing models and developing new ones. The main feature of the JCW-320 series is that all models are compact and portable, and can crimp various closed barrel and open barrel terminals by quickly changing the crimp die sets.
Different from manual crimp tools, the JCW-320 series crimpers are lightweight and very efficient, so to reduce the physical force required by hand tools but offer a more reliable crimping effect. The operation is very simple and standardized, even novices can handle these crimping machines easily.
The JCW-320 series crimping machines are activated by a foot pedal, the operator can place the terminal and wire with two hands, which has achieved a safer operation, reducing crimping cost and improving crimping quality.
JCW-320 Portable Pneumatic Terminal Crimping Machine
|Open barrel, closed barrel, loose terminal, fast change die sets.
|Bootlace ferrule: 16 mm²
|Tubular terminal: 10 mm²
|Crimp dies sets
|0.4 - 0.7 MPa ( clean and dry air )
|L 260 x W 120 x H 140 mm
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
