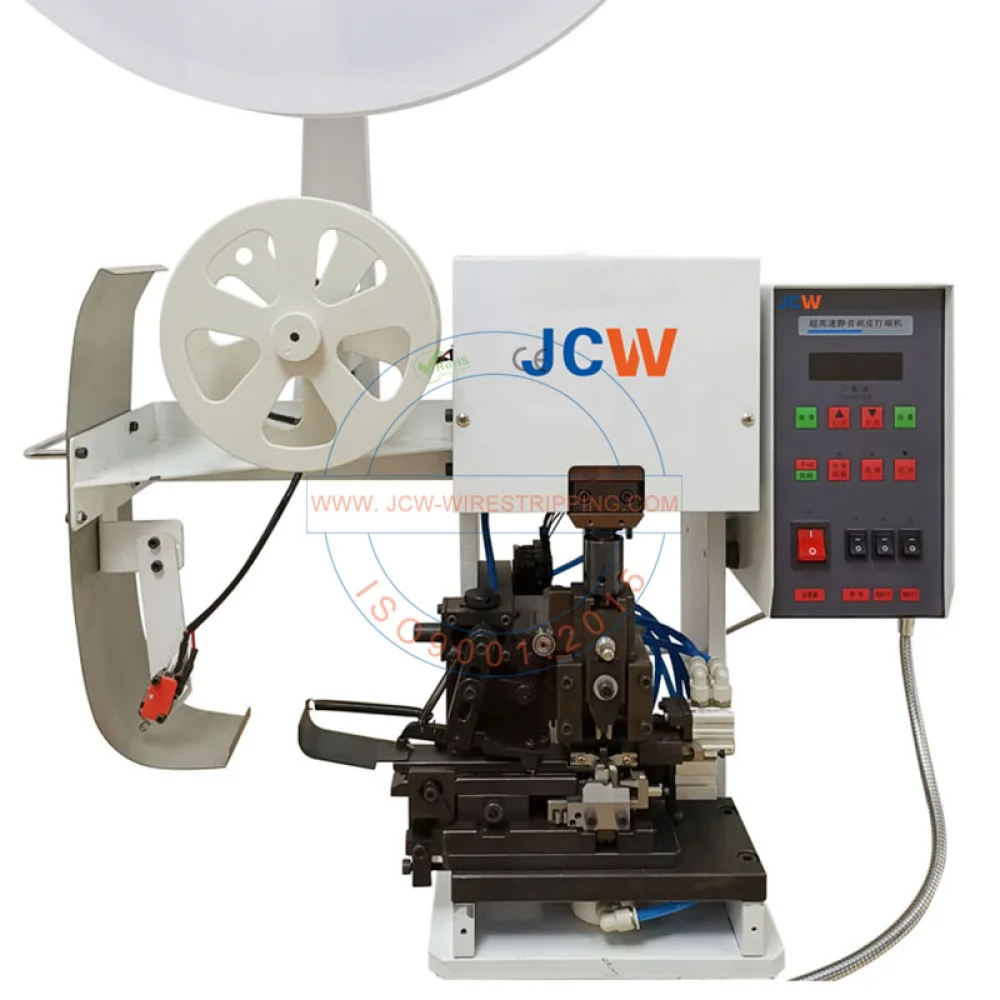

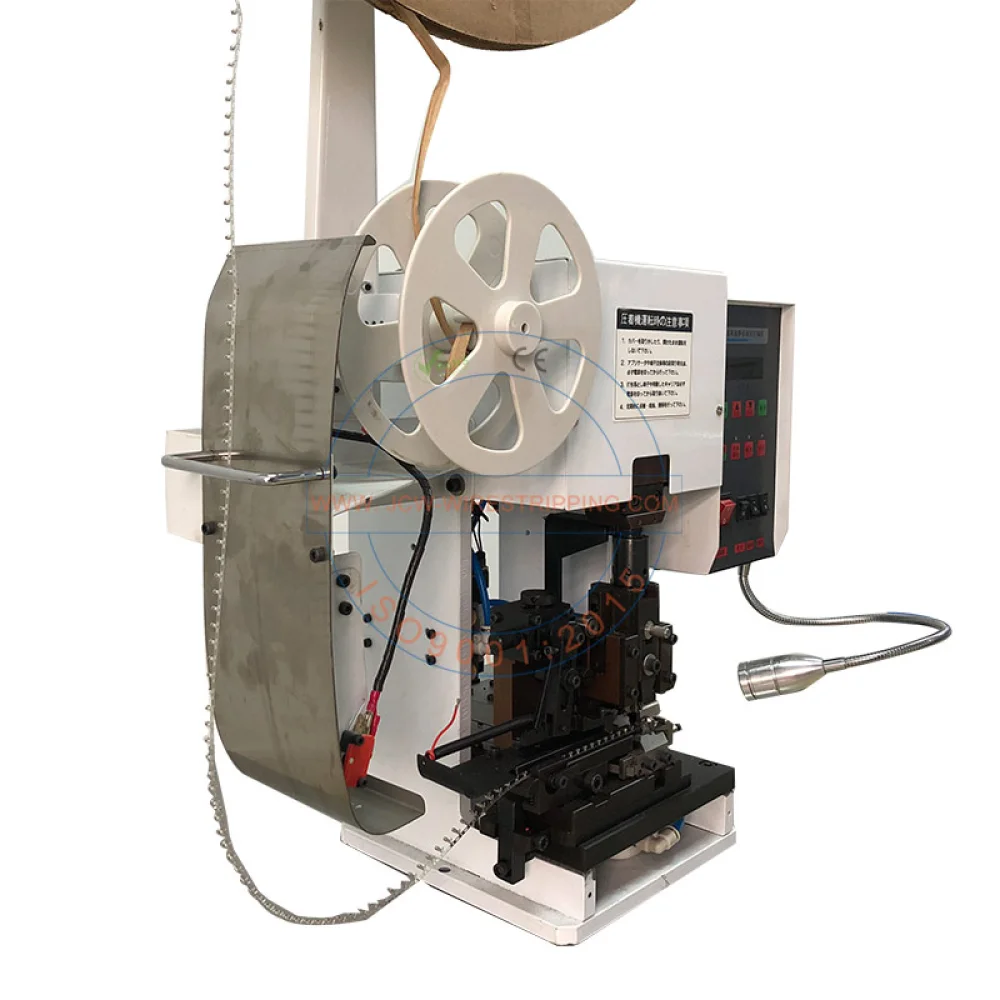

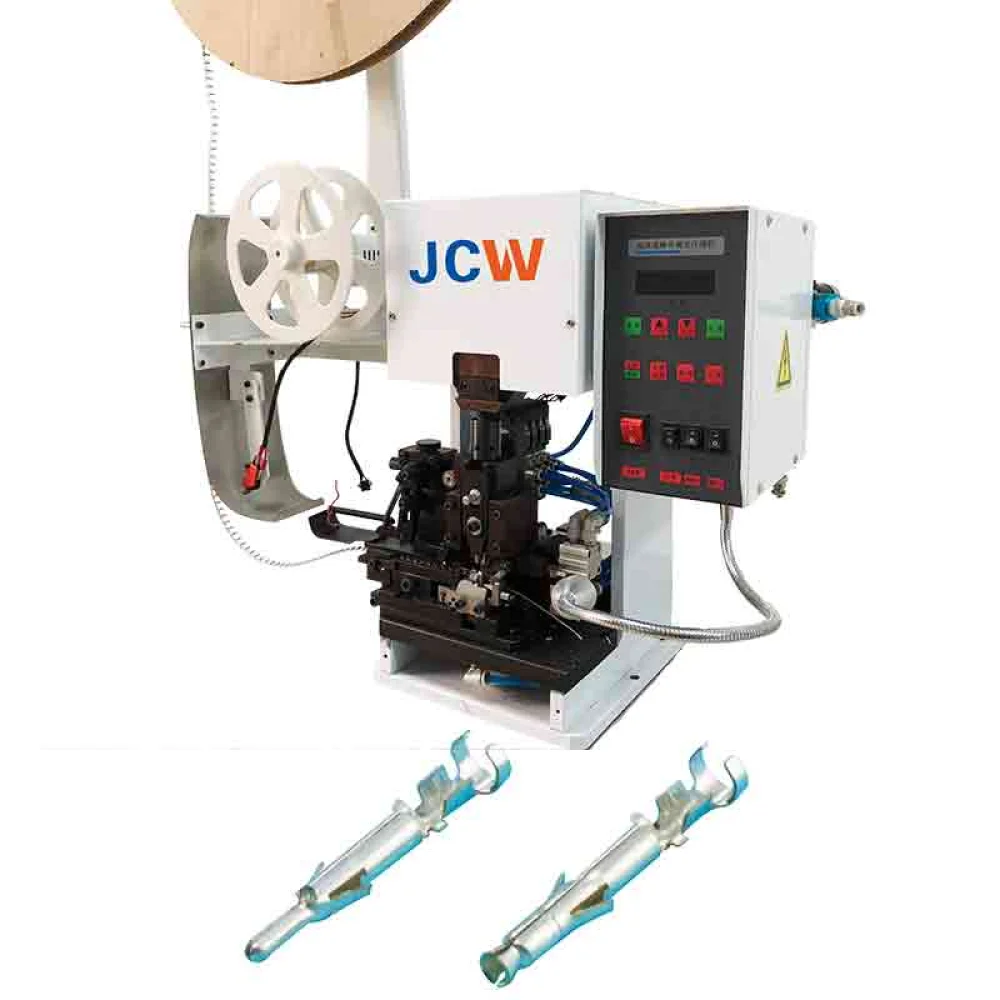

JCW-2TD Electronic Side-feed Wire Stripper and Crimper

Stripping before crimping, precisely position wire and crimp terminal onto the wire


Higher precision, less labor work

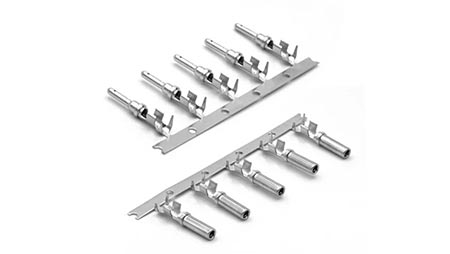

The JCW-2TD wire stripper and crimper is designed to process the side-feed terminal in a roll, it's capable of stripping the wire and crimping terminal in one work step. The wire gripper holds the wire tightly and positions it above the terminal precisely, the user does not need to move the wire so to guarantee high precision. This wire stripper crimper is equipped with a scrap vacuum system and lighting of the working area. Insulation cutting accuracy and wire position accuracy are 0.05 - 1 mm.

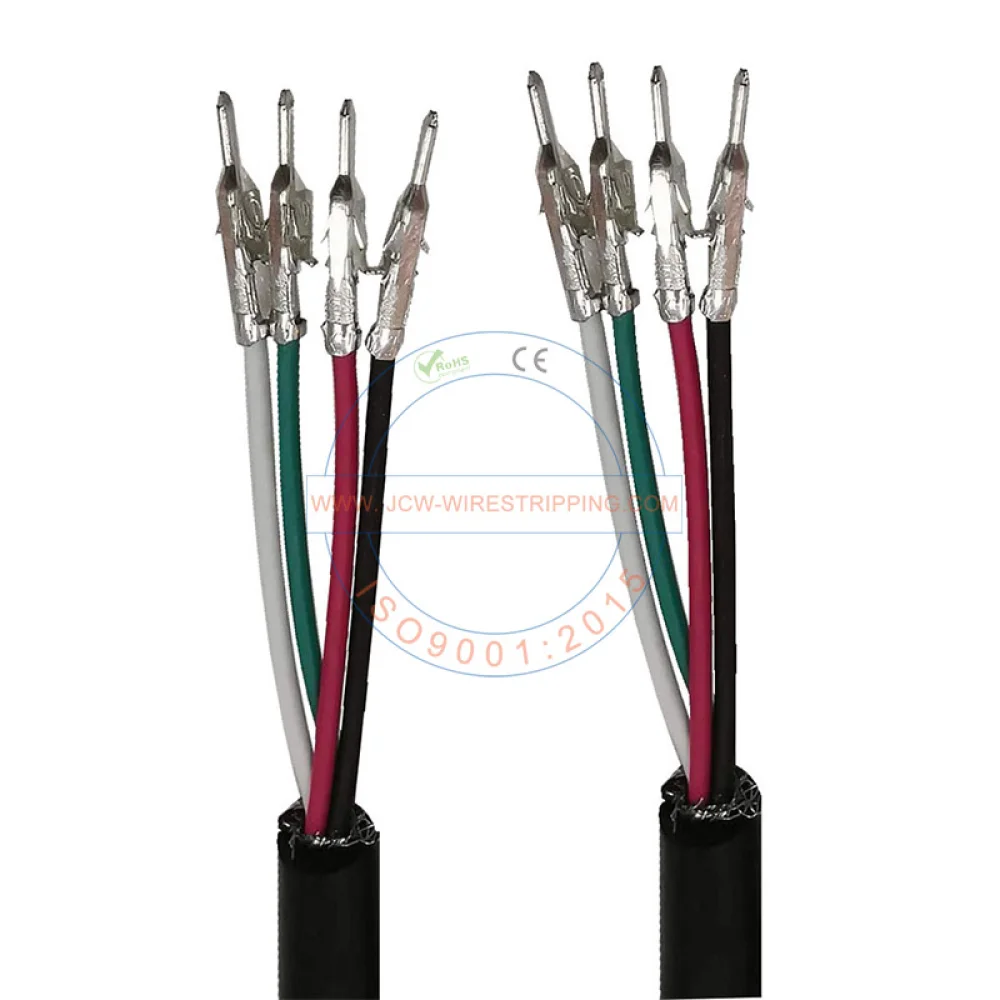

The JCW-2TD wire stripper and crimper is especially suitable for processing multi-core cables, especially for small inner cores, you just need to cut the cable into length and strip the outer jacket with CS series machines in advance.


The JCW-2TD wire strip and crimp machine have a huge advantage compared with separate processing, while improving accuracy, it can release at least 2 labor workers.


Compact, reliable, and extendable

The JCW-2TD wire stripper and crimper only require a similar space as a regular semi-auto terminal crimping machine. It featured a really compact wire gripper in order to make it more approachable to the front working area.


The robust design of the whole machine and crimp applicator guarantee long service life and reliable performance. The machine speed is adjustable to suit the proficiency of the operator.


The standard JCW-2TD wire stripper and crimper is designed for processing wires up to 0.75mm². By replacing the crimping motor and stripping cylinder group, it can process wires up to 2mm².


Various peripherals and options

- Crimping force monitoring ( CFM )

- 3 tons press

- Double crimping applicator

Model

JCW-2TD Automatic Side-feed Type Wire Stripper and Crimper

Function

Single wire, Multicore cable, Wire stripping, Terminal crimping, Side/horizontal feed terminal

Raw material

PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Crimp force

1.5 tons [ Customizable ]

Conductor cross-sections

0.03 -  0.75 mm² [ AWG 32 - 18 ] [ Customizable ]

Stripping length

1 - 10 mm

Stroke

30 mm

Rated power

450 W

Power supply

AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply

0.3 - 0.6 MPa ( clean and dry air )

Dimensions

L 600 x W 400 x H 1100 mm

Weight

73 KG

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
