Vibrate Feeding Loose-piece Terminal Crimping Machine

JCW-CM01

Customized automatic crimping system

Highly flexible, compatible with various connectors

Increase the processing efficiency of the bulk connectors

Insulated & un-insulated terminal in bulk, power plug, etc

Low investment, high output, increased productivity

Please supply your connector info, we will offer you perfect solutions

Inquire Now

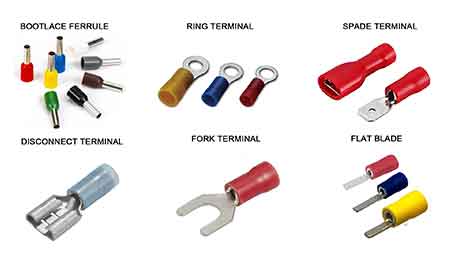

Loose-piece Insulated Terminal Crimping

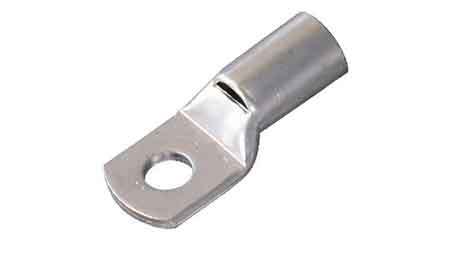

6 tons Crimp Force | Lug Terminal Feeding & Crimping

Wire End Sleeve

Uninsulated Terminal

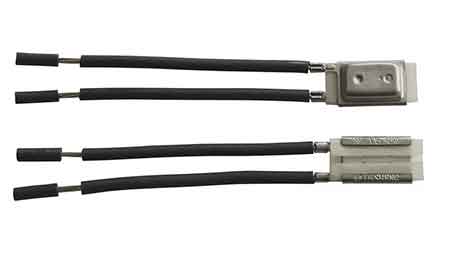

Thermal Protector Crimping

JCW-CM01 Loose-piece Connector Crimping Machine

The JCW-CM01 is a highly customizable terminal crimping machine with a high degree of flexibility. This machine is equipped with a vibrating bowl for conveying material, it's able to convey a wide range of connectors, including bulk terminals, various types of pre-insulated terminals, copper lugs, power plugs, small sizes EN2510, etc.

The standard machine is equipped with a 2-ton terminal crimping machine for various common terminals and wires. The press can be reinforced for crimping heavy-duty terminals.

The CM01 is an economical yet very efficient terminal crimping machine that provides efficient crimping solutions for a wide variety of bulk terminals.

Non-replaceability

The CM01 is designed to improve the efficiency of crimping bulk terminals, it is suitable for orders with a continuous large-volume processing demand for single-specification bulk terminals. Changing the vibratory feeder, linear vibrator, and crimp applicator to process different terminals is not available.

Model	JCW-CM01 Terminal Crimping Machine
Function	Fork terminal, ring terminal, blade terminal, spade terminal, lug, power plug
Crimp force	2 tons [ customizable ]
Control system	PLC
Crimp stroke	30 MM
Power supply	AC 110 - 220V, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa ( clear and dry air )
Dimensions	1350 x 750 x 1500 mm
Weight	140 KG
