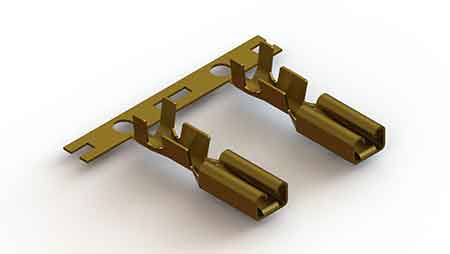

Side-feed Terminal Crimping

Side-feed Terminal Crimping

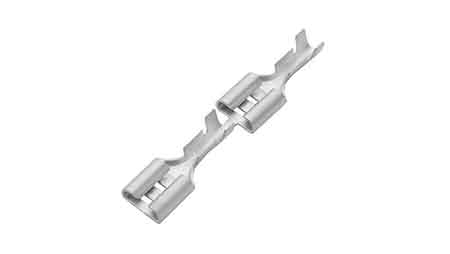

End-feed Terminal Crimping

End-feed Terminal Crimping

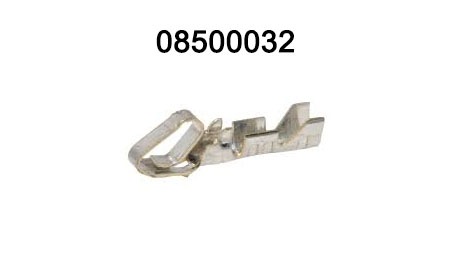

Reeled Center Type Side-feed Open Barrel Terminal

Reeled Center Type Side-feed Open Barrel Terminal

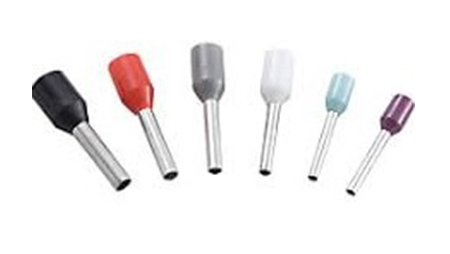

Loose-piece Ferrule Square Crimping

Loose-piece Ferrule Square Crimping

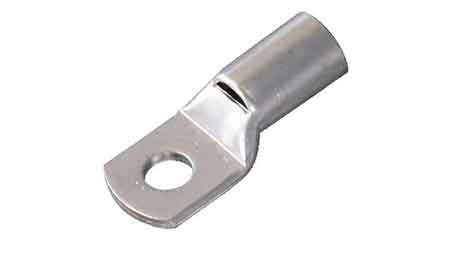

Lug Terminal Hexagonal Crimping

Lug Terminal Hexagonal Crimping

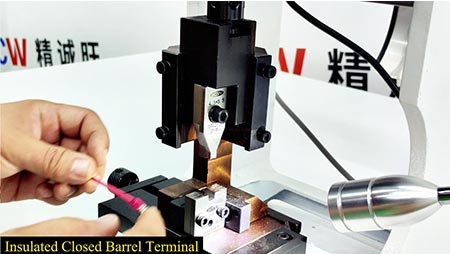

Closed Barrel Terminal Indent Crimping

Closed Barrel Terminal Indent Crimping

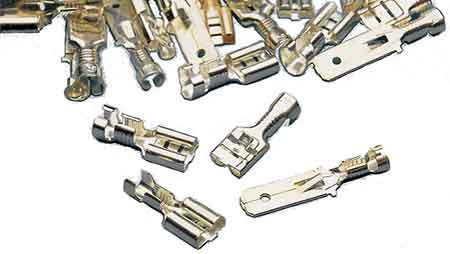

Loose-piece Open Barrel Terminal

Loose-piece Open Barrel Terminal

JCW-2T Eco Series Semi-automatic Terminal Crimping Machines

30MM stroke, economic solutions for a variety of crimping needs


Flexible machine, light-weight

The JCW ECO series bench-top crimp presses are designed to achieve top crimping quality. Among the 4 available models range from 1.5 tons to 4 tons for crimping different connectors, the JCW-2T ECO is the most widely used model.


The JCW-2T ECO terminal crimping machine is an excellent solution for wires up to 2 - 4 mm² ( depends on terminal type,  crimp profile & crimp requirement ). It is possible to mount most OTP-style crimp applicators, including loose piece, side-feed, and rear-feed types. With the fast changeover, you can switch between different crimp applicators for processing open and closed barrel terminals in roll, as well as loose piece terminals.


Instead of a manual crimp tool, the JCW-2T ECO terminal crimping machine ensures that correct crimping force is applied to the terminals when they are crimped onto wires, it also gives you greatly increased productivity.


Easy, fast, safe, and quiet

The ideal speed for the crimping process can be individually adjusted to match the operator efficiency. The JCW-2T ECO terminal crimping machine is activated by a foot pedal, the operator can use both hands to safely and accurately place the wires. Depending on operator proficiency it is possible to crimp every 1-2 seconds. This electric terminal crimping machine adopts a variable-frequency drive to minimize power consumption and cause low noise, this electric crimping machine requires no compressed air.


The JCW-2T ECO terminal crimping machine can be equipped with crimp force monitoring on request.


Each machine comes with power cords suitable for different countries, a foot pedal, a lamp for the working area lighting, and a pair of reel holder brackets.


Model

JCW-2T ECO Series Semi-automatic Terminal Crimping Machines

FunctionOTP crimping applicators, side-feed / rear-feed / closed barrel terminals, switch pedal
Conductor cross-section2 - 4 mm²  [ Capacity depends on terminal type & crimp requirement ]
Crimping force20 kN [ 15 / 30 / 40 kN are optional ]
Stroke

30 MM

Rated power750 W [ 550 / 1000 / 1500 W ]
OEMYes
ActivationFoot pedal
Optional accessorySafety cover, paper coil, EM-STOP button
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsL 460 x W 300 x H 650-710 mm
Weight35 - 70 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
