JCW-S618
Multi-step processing for high voltage EV charging cable

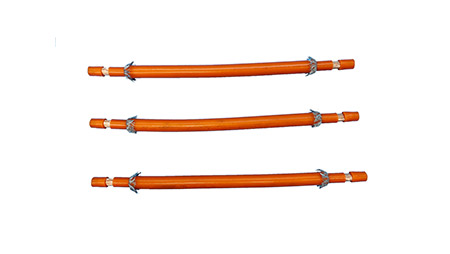

Jacket stripping, inner stripping, foil & shield cutting, shield folding
Compact solution for shield processing
Precise processing through exact, servo-controlled positioning
Secure protection of the inner conductor when trimming shield
Central extraction unit for high purity of the products and modules
| Model | JCW-S618 High Voltage Wire Rotate Stripping Shield Processing Machine |
| Cable type | High voltage cables used in electric vehicles |
| Cable diameter | 6 - 18 mm [ optional φ22mm, 120mm² ] |
| Stripping length ( L ) | 1 - 70 mm [ optional 15-150mm ] |
| Shield remain | ≥ 5 mm |
| Rated power | 5000 W |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.5 - 0.8 MPa ( clean and dry air ) |
| Dimensions | L 820 x W 820 x H 1350 mm |
| Weight | 200 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
