O.D 4mm Cable Roll & Barrel Handling Equipment

JCW-WP12

Infinitely variable speed automatic follow-up, no manual speed adjustment

Max speed: 4 m/s . Rated load: 40KG

Dual function: active wire payoff + wire take-up

Induction auto stop, brake lock and alarm

Constant-speed guide rail, tension-free wire delivery, low noise

Adjustable wire passing wheel for different wire diameters

Suitable for wire diameter ≤4.0mm

Inquire Now

O.D 4mm Cable Roll & Barrel Handling Equipment

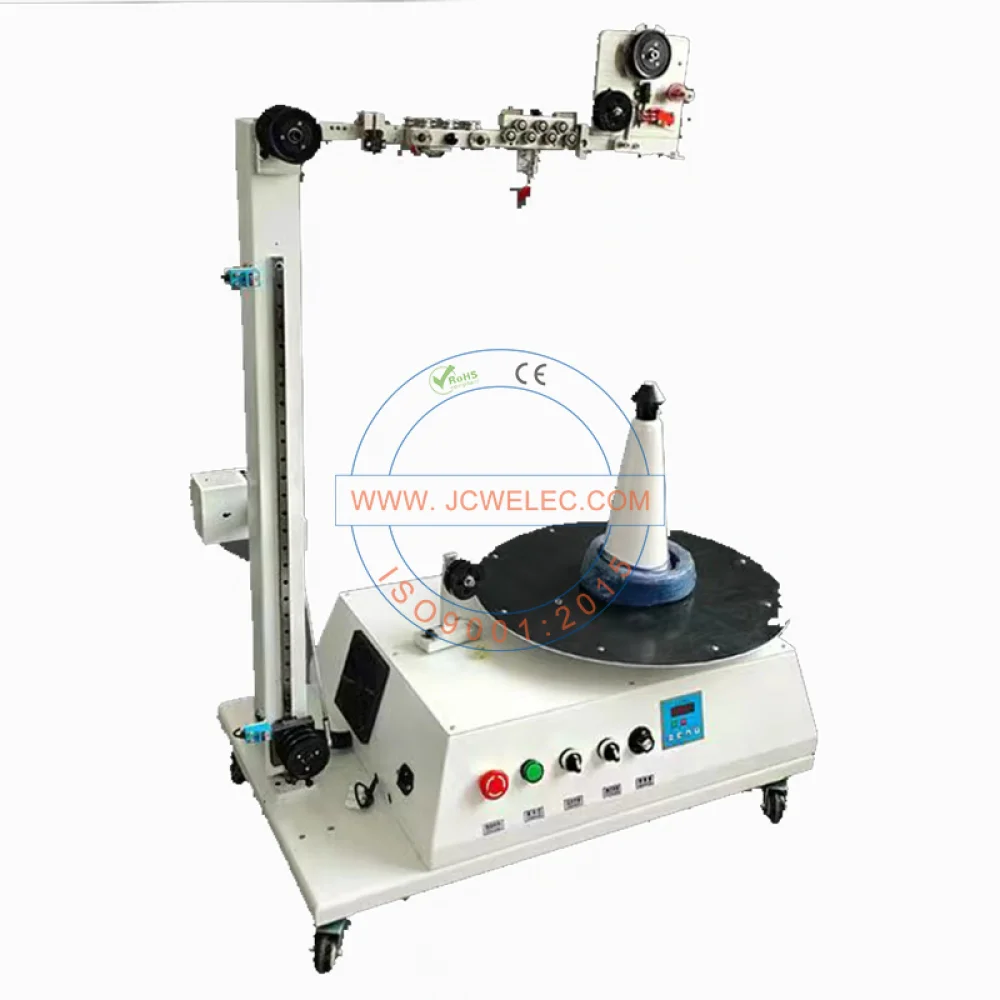

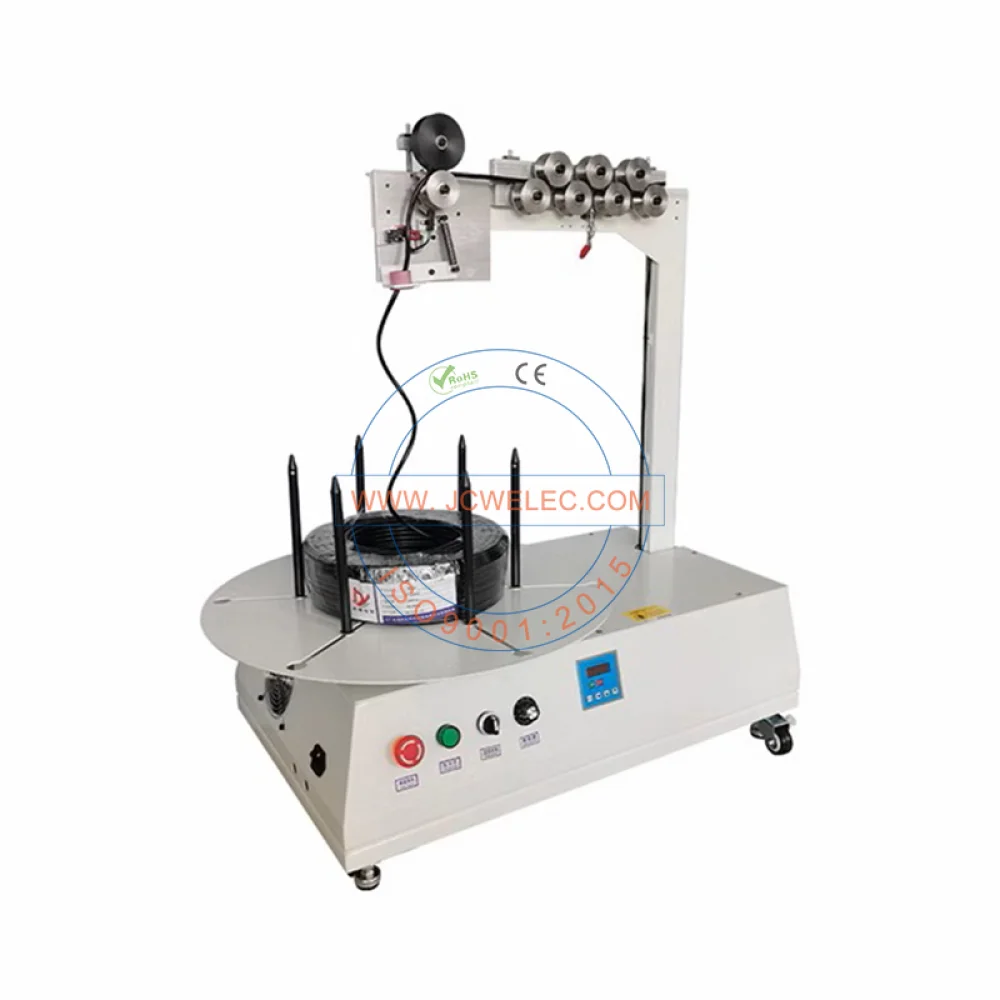

The JCW-WP12 automatic wire payoff & take-up machine is designed for wires with diameter within 4.0mm.

It adopts infinitely variable speed tracking, no manual speed adjustment required.

The maximum feeding speed reaches 4 meters per second.

It supports both active wire feeding and wire rewinding, working synchronously with downstream automatic harness equipment.

Built-in induction brake system: it will stop automatically with brake locking and alarm reminder when the connected automatic machine stops.

Constant-speed guide rail structure realizes tension-free wire transmission with low running noise.

The wire passing wheel is adjustable to match different wire diameters. Rated load capacity is 40KG.

It can be linked with wire stripping machines, terminal crimping machines and other automatic wire processing machines.

Model	JCW-WP12 Cable Roll & Barrel Handling Equipment
Wire diameter	Max 4 mm
Reel diameter	500 mm
Reel height	300 mm
Reel weight	40 KG
Feeding speed	4 m / s
Rated power	550 W
Power supply	AC 110-220V ± 10%, 50 Hz
Dimensions	L 520 x W 880 x L 1160 mm
Weight	50 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
