JCW-CST02 Fully Automatic Dual-ends Terminal Crimping Machine

Economical price with precise wire processing


Feature of the machine

The JCW-CST02 is an automatic wire stripping and crimping machine. The machine allows wire cutting, stripping, and crimping of wires in the cross-section range from 0.1 mm² to 2 mm², crimping force is 2 tons ( 20 KN ). The processing capacity can be expanded to 4 mm² and 4 tons crimping force. The compact machine design provides economic flexibility and high productivity over 4000 pieces per hour.


High quality, high speed, and simple operation

To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigid transmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offers you accurate input and clear vision. The JCW-CST02 wire crimping machine offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc. High speed and high volume output offer 4000 pcs per hour by 100mm of wire length.


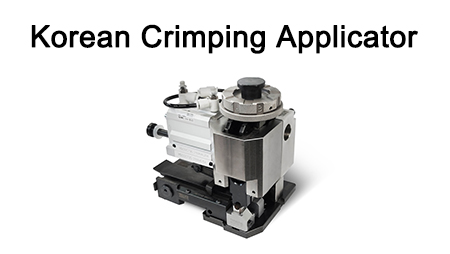

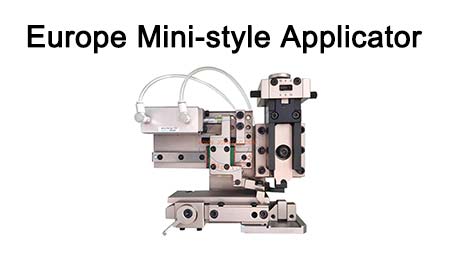

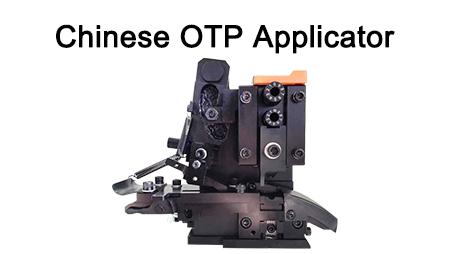

Various peripherals and options

- Crimping force monitoring ( CFM )

- 4 mm² wire processing

- 4 tons crimping machine

- Wire prefeeder for keeping proper wire tension

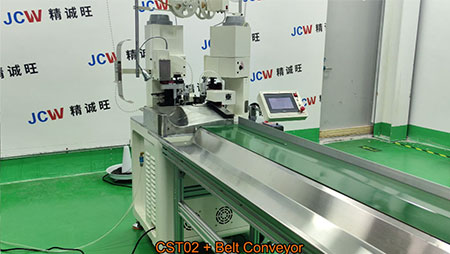

- Conveyor belt for stacking finished wire

- Customize HMI, language & logo

ModelJCW-CST02 Fully Automatic Dual-end Wire Stripping Crimping Machine
Function

Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, etc

Wire cross-section0.1 - 2 mm² ( AWG 28 -14 ) [ 4mm² on request ]
Strip length1.5 - 10 mm

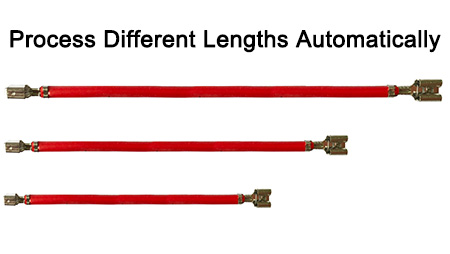

Cut length ( L )45 - 99999 mm
Cut length tolerance± 1mm + 0.002 x L
Crimp force20KN (2.0 tons)  [ 40 KN on request ]
DetectorWire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate4000 pcs/h by 100 mm wire length
Data library100 programs
Display7" touch screen, English / Chinese  other languages on request ]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Air supply 0.4 - 0.6 MPa [ Clean and dry air ]
Weight358KG
Dimensions L 800 x W 700 x H 1500mm
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
