ModelJCW-CST02 INSU-R Fully Automated Wire Cutting Insulated Terminal Crimping Machine
Function

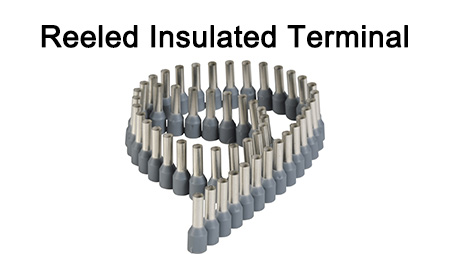

Wire cutting, Single / Dual-end strip and twist, Single / Dual-end crimp, Cut depth, Pull-off length, Insulated terminal, non-insulated terminal, etc

Wire cross-section0.1 - 2 mm² ( AWG 28 -14 ) [ can be custom ]
Strip length1.5 - 10 mm
Cut length ( L )45 - 99999 mm
Cut length tolerance± 1mm + 0.002 x L
Crimp force20KN (2.0 tons)  [ 40 KN on request ] [ Servo model ]
DetectorWire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate900 - 10000 pcs/h by 100 mm wire length, insulated terminal
Display7" touch screen, English / Chinese  other languages on request ]
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.6 MPa [ Clean and dry air ]
Weight388KG
Dimensions

L 1000 x W 800 x H 1500mm

Straightener: 800 mm

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
