JCW-T05B Handheld / Workbench Wire Taping Machine


There are 3 ways to install and use the JCW-T05B wire taping machine. You can choose to buy according to your own needs.

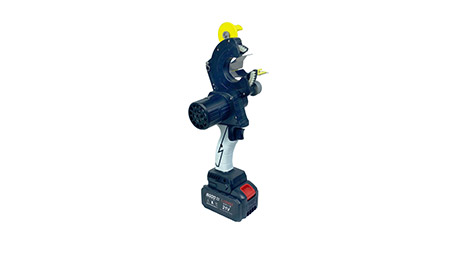

- For handheld use, the power source is a 6000mAh Lion battery.

Lightweight, portable, ideal taping tool used on the forming and laying board same as JCW-T05. Battery life is 5 to 6 hours.

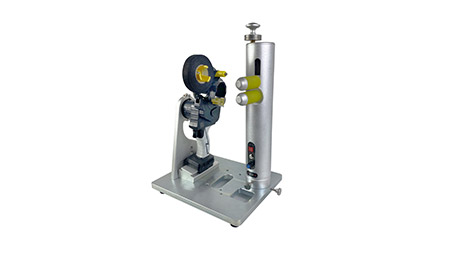

- Mounted on the base, triggered by a foot pedal. Can be used as a workbench machine.

- Use synchronous axes.

Synchronous rollers feeding the wire harness forward, suitable for processing long wire harnesses.


Model

JCW-T05B Handheld / Workbench Wire Taping Machine

Tape materialPVC, Nylon, Acetate Cloth Electrical Tape, etc
Tape width10 - 25 mm
Tape roll diameter
Inner diameter: 38 mm [ other sizes are optional ]
Outer diameter:  max 110mm
Wire harness diameter3 - 35 mm
Wrap speed 150 - 500 RPM
Power supplyAC 110 - 240V, 50 / 60 Hz
DimensionsTaping machine: L 330 x W 155 x H 130 mm
Base plate: L 250 x W 330 x H 280 mm
WeightTaping machine: 1 KG
Base plate: 4 KG
Battery: 0.6 KG
Battery typeLion battery, 6000 mAh, 5 - 6 hours range
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
