Wire and Wire Harness Spot Taping Machine

JCW-T01

Touchscreen, English interface

Sensor / foot pedal starting modes

Simple and exact input parameters

Tape width range 10 - 40 mm

Tape feeding speed 1 - 600 mm / s

Various tapes without barrier paper, including PET, PVC, Masking tape, etc.

Inquire Now

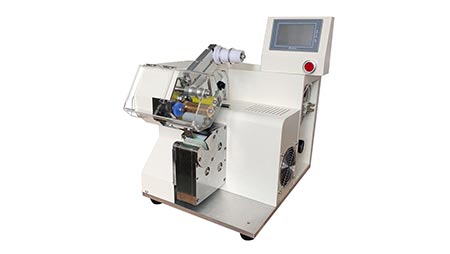

JCW-T01 Wire Spot Taping Machine

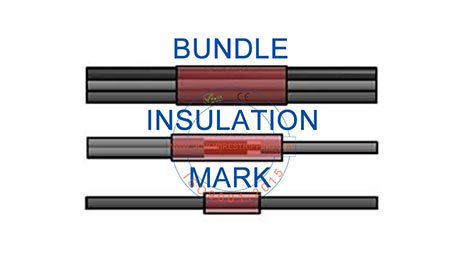

Cable bundling, insulating, and marking

Versatile tape wrapping machine

The versatile bench-top spot taping machine JCW-T01 is designed for wire, cable and wire harness bundling, insulating, and marking. This taping machine accepts tape widths of 10 to 40mm and tape lengths of 50 to 99 mm, it is capable to process wires of 25mm diameter.

The JCW-T01 tape wrapping machine is equipped with a pneumatic pre-feeding system, this ensures smooth taping with no corrugation.

This taping machine is only used for spot taping, also known as " point taping ".

Model	JCW-T01 Wire and Wire Harness Spot Taping Machine
Function	Bundling, insulating, and marking
Tape width	10 - 40 mm [ 60mm is customizable ]
Taping length	50 - 99 mm
Tape roll diameter	32 - 100 mm [ customizable ]
Wire harness diameter	max 25 mm
Production rate	1500 - 2600 pcs / h
Start mode	Sensor / Foot pedal
Air supply	0.4 - 0.6 MPa ( clean and dry air )
Power supply	AC 110 - 220 V, 50 / 60 Hz
Dimensions	L 350 x W 500 x H 530 mm
Weight	50 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
