Budget Automatic Wire Cutting Stripping & Crimping Machine

JCW-CST02B

The cheapest fully-auto dual-end crimping machine

1.8 tons crimping force, hook up wire, AWG32 - AWG18

High-speed production, 4500 pcs per hour

Stripping length 0.1 to 25mm

Most compact desgin

Inquire Now

OTP Terminal Crimp Applicator

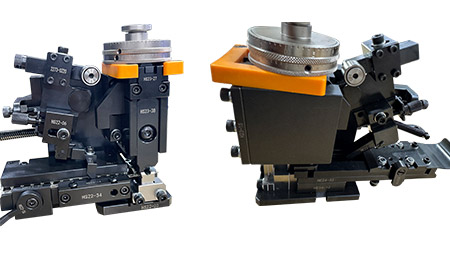

Europe Terminal Crimp Applicator

The JCW-CST02B is a cost-effective fully automatic double-head terminal crimping machine, designed as the budget-friendly option within our CST machine series. It adopts stepper motor drive system for core motion control, delivering dependable and stable operation under regular wire harness production environments.

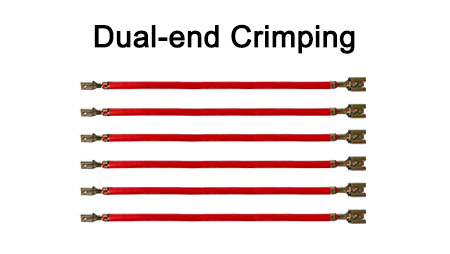

This machine automatically completes the full processing workflow including wire feeding, fixed-length cutting, insulation stripping and dual-end terminal crimping in one continuous cycle. The stepper drive structure features simple mechanism layout, low maintenance cost and easy operation. It maintains consistent stripping quality to avoid damage to inner copper conductors and provides stable terminal crimping results for standard wire processing tasks.

Thanks to its economical configuration, the CST02B is an ideal choice for factories looking to lower equipment investment while pursuing reliable daily production performance. Operators can adjust processing parameters conveniently on the touchscreen panel and store multiple product recipes for quick changeover between different wire specifications. It is widely used for mass production of general electronic wiring harnesses where stable performance and competitive pricing are prioritized.

Model	JCW-CST02B Ultra-eco Fully-auto Dual-end Wire Crimping Machine
Function	Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Strip length
Wire cross-section	AWG 32 -18
Strip length	0.1 - 15 mm
Cut length ( L )	10 - 9999 mm
Crimp force	18 KN (1.8 tons)
Detector	Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]
Production rate	4500 pcs/h by 100 mm wire length
Data library	100 programs
Display	7" touch screen, English / Chinese [other languages on request]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa [ Clean and dry air ]
Weight	290 KG
Dimensions	L 780 x W 650 x H 1380mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
