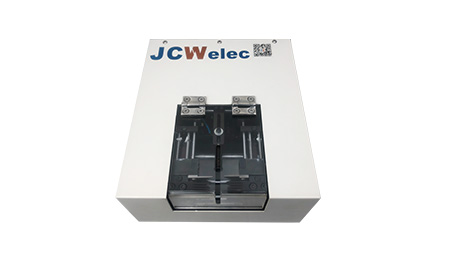

JCW-S35 Semi-auto Pneumatic Cable Stripping Machine

Processing 2.0-35mm² wire and cable with a single set of V-blade


The JCW-S35 pneumatic wire and cable stripping machine is designed to process single wire and multicore cable, all that is needed to operate the machine is a compressed air connection. This wire stripper is an ideal model for multicore cable with inner wires at different diameters.


The smart design allows for processing wires with a single set of V-blade, change blade is unnecessary to strip wires up to 35mm².


The machine can perform both full and partial stripping by simple adjustment.


The JCW-S35 pneumatic wire stripper is activated by the trigger sensor, the wire processing is started once the wire end touches the trigger sensor.


ModelJCW-S35 Semi-auto Pneumatic Cable Stripping Machine
FunctionFull stripping, partial stripping, no blade change needs
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections2 - 35 mm² [ AWG 2 - 14 ]
Stripping length2 -  30 mm
Stroke30 mm
OEMYes
Air supply0.5 - 0.8 MPa ( clean and dry air )
DimensionsL 360 x W 290 x H 180 mm
Weight15 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
