JCW-C05 Automatic Corrugated Pipe Cutting Machine

Straight cut, precise feeding, 3 - 35 mm diameter

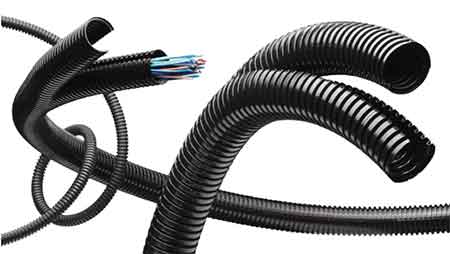

Non-slitted insulating hose corrugated tube

The JCW-C05 automatic loom tube cutting machine is specially designed to measure and cut corrugated tubing. This cutting machine is also capable to cut PVC tubes and cables.



This cutting machine uses a common knife blade to offer a beautiful cutting surface, the cut is carried out in vertical mode. High-speed cutting will not cause deformation of the corrugated tube.


Ultra-wide 40mm belt ensures precise feeding.


Efficient & intelligent

Driven by high-efficiency stepper motors, the JCW-C05 cutting machine has high-efficiency processing capabilities. The JCW-C05 tube cutting machine is equipped with a transparent safety cover, which provides a clear vision. When it's open, the machine will stop working automatically and immediately. This machine is equipped material run-out sensor, the machine will automatically stop when there is a shortage of material.

ModelJCW-C05 Automatic Corrugated Pipe Cutting Machine
Function

Non-slitted corrugated tube, plastic tubes, cut speed, feeding speed, save the program, calibrate the cutting length

Raw material

PA, PE, PU, PTFE, rubber, and silicon tubes

Tube diameter3 - 35 mm
Cutting length ( L )5 - 99999 mm
Cutting length increment0.1 mm
Cutting length tolerance± 0.1 mm [ material with no elasticity ]
Production rate7800 pcs /h by 100 mm length
Data library100 programs
Display7" color touchscreen, English / Chinese  [ other languages on request ]
OEMYes
Power supplyAC 110 - 220V + 10 %, 50 / 60 Hz
DimensionsL 670 x W 520 x H 520 mm
Weight75 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
