25kN Tubular Cable Lug Crimping Machine

JCW-320H

Professional lug crimping machine

25KN crimping force

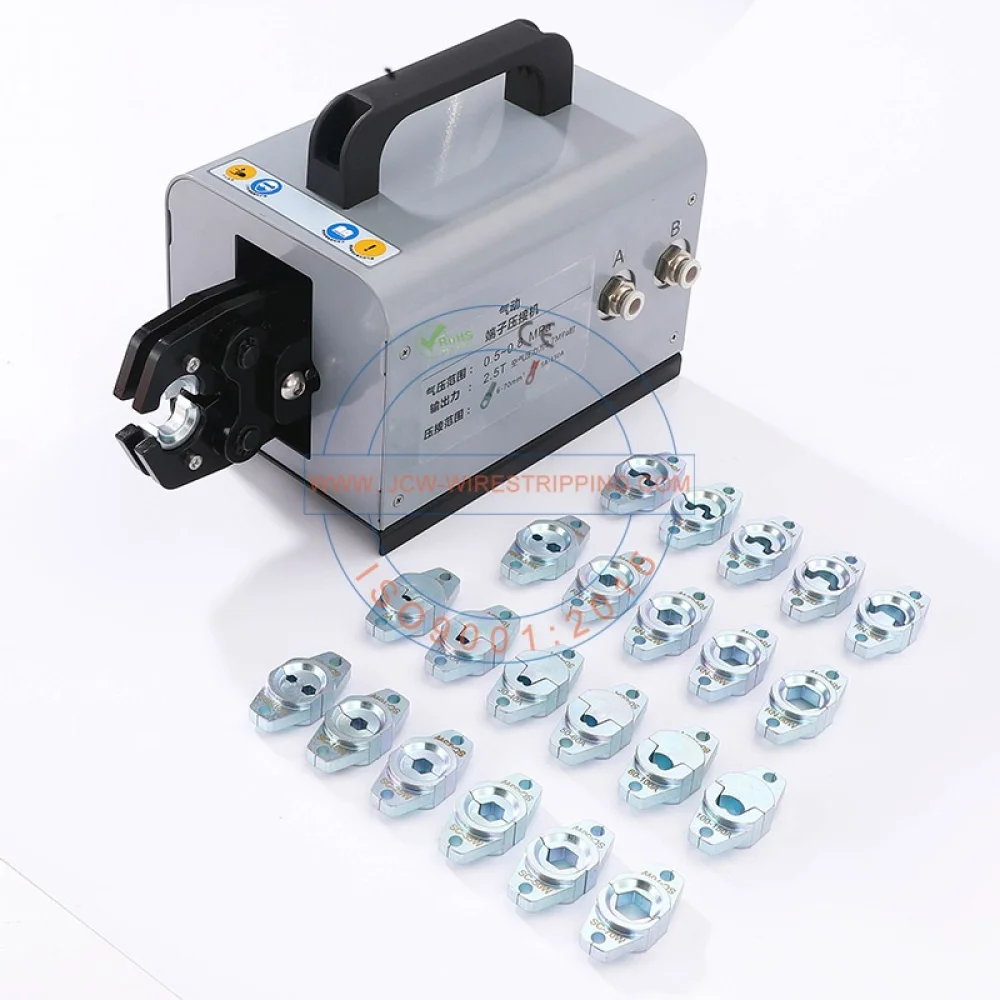

22 sets of the crimp die sets

Hexagon / Indent crimping

Fast crimp die sets changeover

50 mm² SC / RNB cable lug

Inquire Now

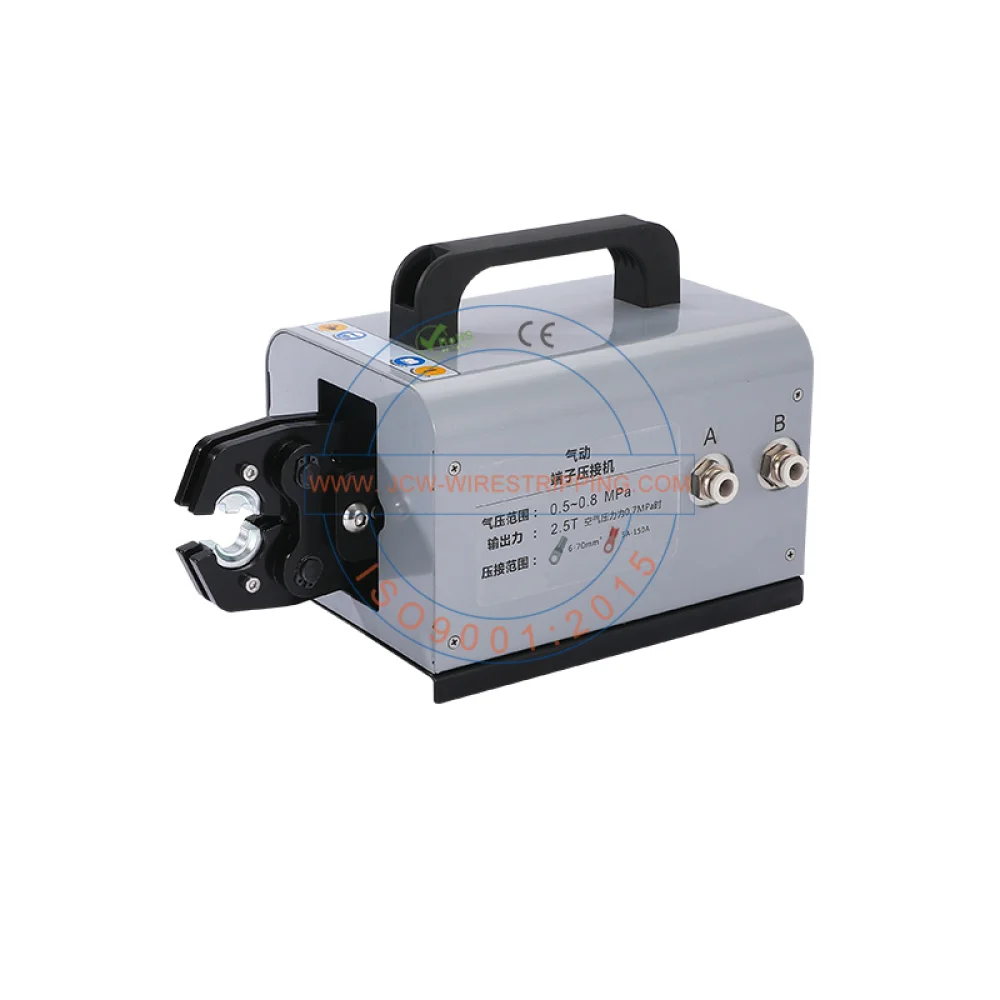

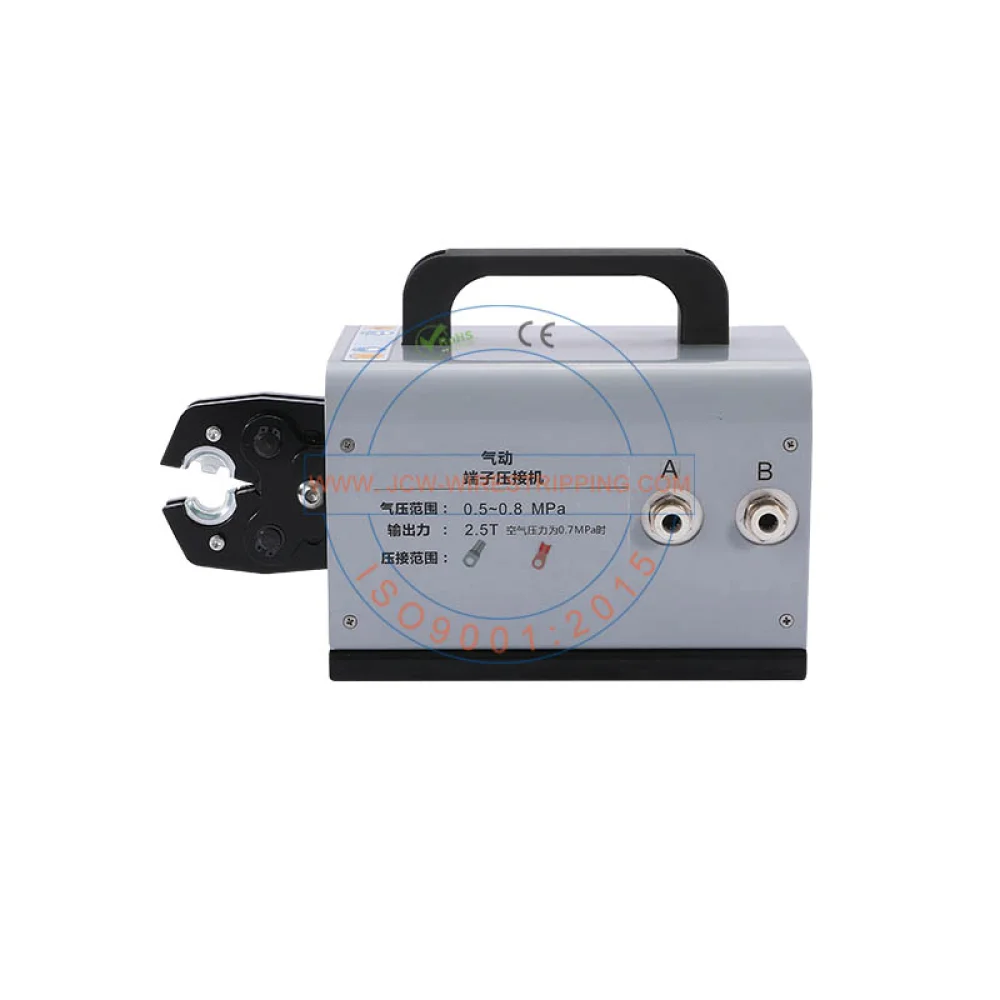

JCW-320H 50mm² Copper Tube Lug Crimping Machine

25KN crimping force, hexagonal crimping, indent crimping

The JCW-320H pneumatic crimping machine is the heavy-duty model of the JCW-320 series, built specifically for copper cable lug processing with 68kN powerful crimp force.

This machine comes with dedicated dies to realize three common crimp styles: B-type crimp, hex crimp and indent crimp. Users can switch die sets easily to match different copper lug specifications and crimp requirements.

Powered by compressed air, it delivers stable and massive crimp output. Reinforced heavy frame guarantees consistent performance under long-cycle heavy-load work. It retains the flexible changeover design of the series, well suited for small-batch mixed-spec cable lug orders, widely adopted in power wiring, electrical cabinet and energy storage projects.

Model	JCW-320H Heavy-duty Copper Tube Lug Crimping Machine
Function	Non-insulated terminal, copper tube lug, O-ring tubular terminal, fast change die set.
Capacity	50 mm²
Crimping width	6 mm
Crimping force	25 KN

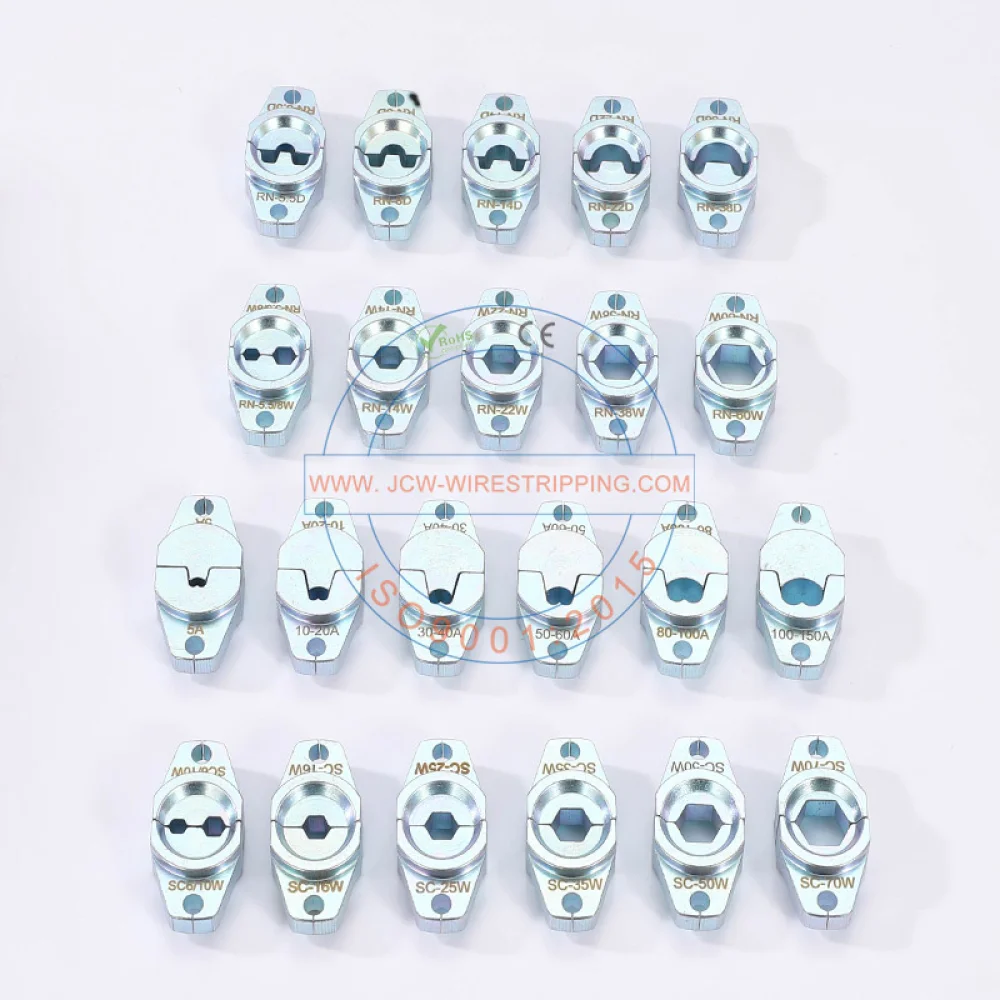

Crimp dies sets	22 sets for selection
Air regulator	Yes
OEM	Yes
Activation	Foot pedal
Air supply	0.6 - 1.0 MPa ( clean and dry air )
Dimensions	L 275 x W 145 x H 170 mm
Weight	10 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
