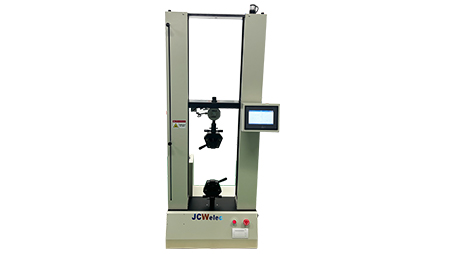

20KN Pull Force Tester

20KN Pull Force Tester

Model

JCW-Q2000 2tons Versatile Pull Force Testing Device

Measuring range

20 KN ( 2000 KG.F )

Force units

N, Kgf, Lbf, gf, KN and tf

Distance units

mm, cm, and inch

Displacement accuracy

≤±0.05mm

Mining frequency

50 Hz

Force accuracy

≤±0.5% (5%-100% range)

Stroke

Default: 1000 mm [ Without fixture. Varies with fixture stroke]

Optional: 500 mm

Width range

350 mm

Speed  range

1-400 mm/min

Speed accuracy

1%

Display

4.3" color touchscreen, English / Chinese  [ other languages on request ]

Power supply

AC 110 - 220 V ± 10%, 50 / 60 Hz

Dimensions

L 620 x W 470 x H 1650 mm

Weight

180 KG

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
